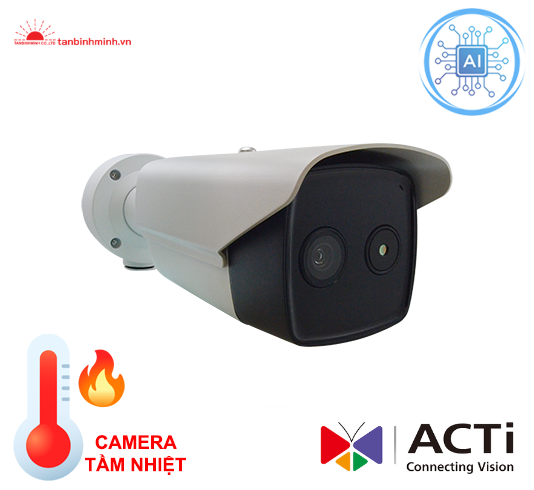

Camera AI TẦM NHIỆT IP ACTi VMGB-370

Camera AI tầm nhiệt IP thân dài

  • MS : VMGB-370
  • Bảo hành :
  • Kho hàng :
  • Hãng sản xuất : ACTi
  • Xuất xứ : TAIWAN
  • Seri sản phẩm :

Số lượng mua
Mua sản phẩm này
SP cùng loại
SP xem nhiều
Thông số kỹ thuật
Tổng quan
Video
Download
Phụ kiện



Device


Product Type Thermal Bullet
Maximum Resolution 4MP
Product Application Human Body Temperature Detection
Application Environment Outdoor
Image Sensor Progressive Scan CMOS + Thermal sensor
Sensor Size Optical: 1/2.7"
Effective Pixels Thermal: 160(H) X 120(V)
Optical: 2688(H) X 1520(V)
Spectral Range 8-14 μm
Thermal Sensitivity NETD <40mK at F1.1
Spatial Resolution 5.48 mrad
Day / Night Yes
Low Light Sensitivity Superior
Minimum Illumination Color: 0.0089 lux at F1.6 (AGC on); B/W: 0 (IR LED on)
Mechanical IR Cut Filter Yes
IR LED Adaptive IR LED
IR Working Distance 40m
Electronic Shutter 1-1/100000 second (auto mode)

Lens


Number of Lenses 2 Lenses
Focal Length Fixed focal, f3.1mm
(Visual camera)
Fixed focal, f4.0mm
Horizontal Viewing Angle (Thermal camera)
50°
(Visual camera)
84°
Vertical Viewing Angle (Thermal camera)
37.2°
(Visual camera)
44.8°

Video


Compression H.265, H.264, MJPEG
Maximum Frame Rate vs. Resolution (60Hz)
30 fps at 2688 x 1520
30 fps at 1920 x 1080
30 fps at 1280 x 720
30 fps at 704 x 480
30 fps at 352 x 240
30 fps at 176 x 120
(50Hz)
25 fps at 2688 x 1520
25 fps at 1920 x 1080
25 fps at 1280 x 720
25 fps at 704 x 576
25 fps at 352 x 288
25 fps at 176 x 144
Multi-Streaming Simultaneous dual streams
Wide Dynamic Range Superior WDR (120 dB)
Digital Noise Reduction 3D DNR
Built-in Analytics Human Body Temperature Detection

Audio


Audio Type 2-way, Mic-in, Line-in, Line-out
Audio Compression PCM, G.711 u-law, G.711 A-law, G.722.1, G.726, MP2L2

Network


Network Protocol & Service IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, UPnP, QoS, SNMP, IEEE 802.1X
Ethernet Port 1 x Ethernet (10/100 Base-T), RJ-45 connector
Security IP address filtering, HTTPS encryption, Password protected user level, IEEE 802.1X network access control

Temperature Measurement


Temperature Range 30°C ~ 45°C (86°F ~ 113°F)
Temperature Accuracy ±0.5°C

Event


Event Trigger Video motion detection, External device through digital input, Sound detection, Temperature Exception Detection (up to 10 points, 10 areas and 1 line)
Event Response E-mail notification with snapshots, Save video to storage, Upload snapshot to FTP server, Activate external device through digital output

System


Language Multi-Language

Interface


Audio Interface 1/1, 3.5mm Phone Jack
Digital Input/Output 2/2

General


Power Source DC 12V, PoE Class 3 (IEEE802.3af)
Power Consumption 7.5 W (DC), 8 W (PoE)
Weight 1760g (3.88lb)
Dimensions (W x H x D): 113.5mm x 115.2mm x 358.3mm (4.47" x 4.35" x 14.10")
Environmental Casing Weatherproof (IP66)
Operating Temperature 10°C ~ 35°C (50°F ~ 95°F)
Operating Humidity 10% - 95% RH, non-condensing
Warranty 3 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty
