CHI TIẾT SẢN PHẨM

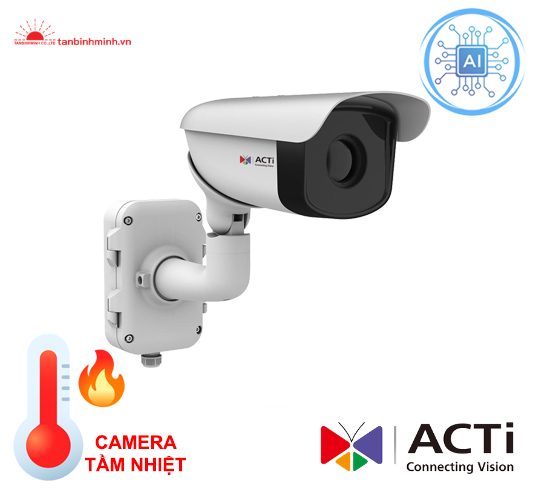

Camera AI TẦM NHIỆT IP ACTi A370-P1
Camera AI tầm nhiệt IP thân dài
- MS : A370-P1
- Bảo hành :
- Kho hàng :
- Hãng sản xuất : ACTi
- Xuất xứ : TAIWAN
- Seri sản phẩm :
Số lượng mua
SP cùng loại
SP xem nhiều
Thông số kỹ thuật
Tổng quan
Video
Download
Phụ kiện
Device
| Product Type | Thermal Bullet |
| Maximum Resolution | 1MP |
| Product Application | Overheating Detection, Fire Detection |
| Application Environment | Outdoor |
| Image Sensor | Thermal |
| Effective Pixels | Thermal: 640(H) X 512(V) |
| Pixel Interval | 17 μm |
| Spectral Range | 8-14 μm |
| Thermal Sensitivity | NETD <35mK at F1.0 |
| Spatial Resolution | 0.34 mrad |
| Day / Night | Yes |
| Low Light Sensitivity | Standard |
| Mechanical IR Cut Filter | No |
| IR LED | No |
| S/N Ratio | 75 dB |
Live View
| Digital Zoom | Yes |
Lens
| Focal Length | Fixed focal, f50mm |
| Aperture | F1.0 |
| Iris | Fixed iris |
| Focus | Fixed focus |
| Horizontal Viewing Angle | 12.4° |
| Vertical Viewing Angle | 10° |
Video
| Compression | H.265, H.264, MJPEG |
| Maximum Frame Rate vs. Resolution | (50Hz) 25 fps at 1280 x 720 25 fps at 704 x 576 25 fps at 640 x 512 25 fps at 352 x 288 |
| Multi-Streaming | Simultaneous triple streams |
| Wide Dynamic Range | Basic WDR |
| Digital Noise Reduction | 3D DNR |
| Built-in Analytics | Object Line Crossing Detection, Object Enter Area Detection, Object Exit Area Detection, Intrusion Detection (Forbidden Area Detection), Tampering Detection, Temperature Detection, Fire Detection |
Audio
| Audio Type | 2-way, Mic-in, Line-in, Line-out |
Network
| Ethernet Port | 1 x Ethernet (10/100 Base-T), RJ-45 connector |
Temperature Measurement
| Temperature Range | -20°C ~ 150°C (-4°F ~ 302°F) |
| Temperature Accuracy | ±8°C |
Detection Range
| Triggering Analytics Event Notification | (People 1.8x0.5m) 368m (Vehicle 1.4x4.0m) 1029m |
| Triggering Temperature Notification | (Object 0.2x0.2m) 45m |
| Triggering Fire Detection Event Notification | (Object 0.2x0.2m) 150m |
| Observation Range | Detection: People 1471m; Vehicle 4510m Recognition: People 1127m; Vehicle 368m Identification: People 564m; Vehicle 184m |
Interface
| Serial Port | 1 x RS-485 |
| Digital Input/Output | 2/2 |
General
| Power Source | AC 24V, PoE Class 4 (IEEE802.3at) |
| Power Consumption | 5 W (AC), 5.5 W (PoE) |
| Weight | 7000g (15.43lb) |
| Dimensions | (L x W x H): 535mm x 400mm x 171mm (21.06" x 15.75" x 6.73") |
| Environmental Casing | Weatherproof (IP67) |
| Corrosion Protection | Optional for project request. Chassis corrosion resistance at the seashore approximately 2-3 years. |
| Operating Temperature | -40°C ~ 65°C (-40°F ~ 149°F) |
| Real-time Clock (RTC) | Yes |
| Warranty | 3 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
