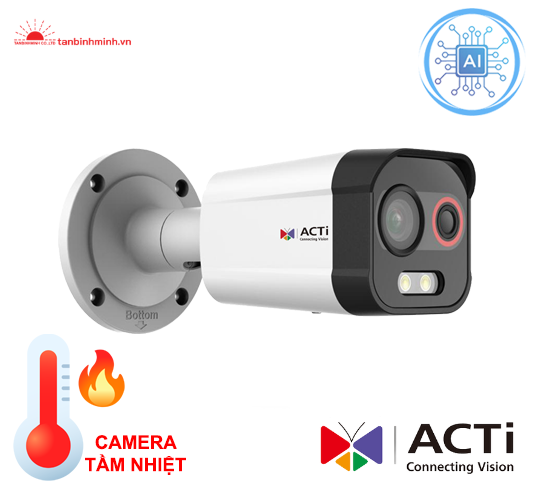

Camera AI TẦM NHIỆT IP ACTi A372

Camera AI tầm nhiệt IP thân dài

  • MS : A372
  • Bảo hành :
  • Kho hàng :
  • Hãng sản xuất : ACTi
  • Xuất xứ : TAIWAN
  • Seri sản phẩm :

Số lượng mua
Mua sản phẩm này
SP cùng loại
SP xem nhiều
Thông số kỹ thuật
Tổng quan
Video
Download
Phụ kiện



Device


Product Type Thermal Bullet
Maximum Resolution 4MP
Product Application Thermal Surveillance
Application Environment Outdoor
Image Sensor Progressive Scan CMOS + Thermal sensor
Effective Pixels Thermal: 96(H) X 72(V)
Optical: 2688(H) X 1520(V)
Pixel Interval 12 μm
Spectral Range 8-14 μm
Thermal Sensitivity NETD <55mK at F1.0
Spatial Resolution 8.89 mrad
Day / Night Yes
Low Light Sensitivity Superior
Minimum Illumination Color: 0.0005 lux at F1.0 (AGC on); B/W: 0 lux (Light on)
Mechanical IR Cut Filter Yes
IR LED No
White LED Yes
White LED Working Distance 30m
S/N Ratio 75 dB

Lens


Number of Lenses 2 Lenses
Focal Length Fixed focal, f1.35mm
(Visual camera)
Fixed focal, f4.0mm
Aperture (Thermal camera)
F1.0
(Visual camera)
F1.0
Horizontal Viewing Angle (Thermal camera)
50°
(Visual camera)
94°
Vertical Viewing Angle (Thermal camera)
37.5°
(Visual camera)
50°

Video


Compression H.265, H.264, MJPEG
Maximum Frame Rate vs. Resolution (Visual camera)
(60Hz)
30 fps at 2688 x 1520
30 fps at 1920 x 1080
30 fps at 1280 x 720
30 fps at 704 x 480
30 fps at 352 x 240
(50Hz)
25 fps at 2688 x 1520
25 fps at 1920 x 1080
25 fps at 1280 x 720
25 fps at 704 x 576
25 fps at 352 x 288
(Thermal camera)
25 fps at 1280 x 720
25 fps at 704 x 576
25 fps at 640 x 512
25 fps at 320 x 240
Multi-Streaming Simultaneous dual streams
Wide Dynamic Range Superior WDR (120 dB)
Digital Noise Reduction 3D DNR
Built-in Analytics Object Line Crossing Detection, Object Enter Area Detection, Object Exit Area Detection, Intrusion Detection (Forbidden Area Detection)

Network


Ethernet Port 1 x Ethernet (10/100 Base-T), RJ-45 connector

Detection Range


Triggering Analytics Event Notification (People 1.8x0.5m) 11m
(Vehicle 1.4x4.0m) 33m
Observation Range Detection: People 56m; Vehicle 173m
Recognition: People 14m; Vehicle 43m
Identification: People 7m; Vehicle 22m

Integration


ONVIF Compliant Yes, Profile S, Profile G

Interface


Digital Input/Output 2/2

General


Power Source DC 12V, PoE Class 3 (IEEE802.3af)
Power Consumption 8.5 W (DC), 8.5 W (PoE)
Weight 869.2g (1.92lb)
Dimensions (L x W x H): 211.5mm x 105mm x 105mm (8.32" x 4.13" x 4.13")
Environmental Casing Weatherproof (IP67), Vandal proof metal casing (IK10)
Corrosion Protection Optional for project request. Chassis corrosion resistance at the seashore approximately 2-3 years.
Operating Temperature -40°C ~ 65°C (-40°F ~ 149°F)
Operating Humidity ≤95% RH, non-condensing
Real-time Clock (RTC) Yes
Warranty 3 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty
