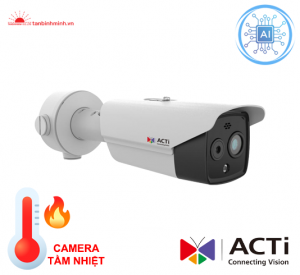

Camera AI TẦM NHIỆT IP ACTi A371-P2
Camera AI tầm nhiệt IP thân dài
- MS : A371-P2
- Bảo hành :
- Kho hàng :
- Hãng sản xuất : ACTi
- Xuất xứ : TAIWAN
- Seri sản phẩm :
Số lượng mua
SP cùng loại
SP xem nhiều
Thông số kỹ thuật
Tổng quan
Video
Download
Phụ kiện
Device
| Product Type | Thermal Bullet |
| Maximum Resolution | 4MP |
| Product Application | Overheating Detection, Fire Detection |
| Application Environment | Outdoor |
| Image Sensor | Progressive Scan CMOS + Thermal sensor |
| Effective Pixels | Thermal: 256(H) X 192(V) Optical: 2688(H) X 1520(V) |
| Pixel Interval | 12 μm |
| Spectral Range | 8-14 μm |
| Thermal Sensitivity | NETD <40mK at F1.0 |
| Spatial Resolution | 1.24 mrad |
| Day / Night | Yes |
| Low Light Sensitivity | Superior |
| Minimum Illumination | Color: 0.0089 lux at F1.6 (AGC on); B/W: 0 lux (IR LED on) |
| Mechanical IR Cut Filter | Yes |
| IR LED | Adaptive IR LED |
| IR Working Distance | 30m |
| White LED | Yes |
| White LED Working Distance | 30m |
| S/N Ratio | 75 dB |
Lens
| Number of Lenses | 2 Lenses |
| Focal Length | Fixed focal, f9.7mm (Visual camera) Fixed focal, f8.0mm |
| Aperture | (Thermal camera) F1.0 (Visual camera) F1.6 |
| Horizontal Viewing Angle | (Thermal camera) 18° (Visual camera) 39.4° |
| Vertical Viewing Angle | (Thermal camera) 13.5° (Visual camera) 22.1° |
Video
| Compression | H.265, H.264, MJPEG |
| Maximum Frame Rate vs. Resolution | (Visual camera) (60Hz) 30 fps at 2688 x 1520 30 fps at 1920 x 1080 30 fps at 1280 x 720 30 fps at 704 x 480 30 fps at 352 x 240 (50Hz) 25 fps at 2688 x 1520 25 fps at 1920 x 1080 25 fps at 1280 x 720 25 fps at 704 x 576 25 fps at 352 x 288 (Thermal camera) 25 fps at 1280 x 720 25 fps at 704 x 576 25 fps at 640 x 512 25 fps at 320 x 240 |
| Multi-Streaming | Simultaneous dual streams |
| Wide Dynamic Range | Superior WDR (120 dB) |
| Digital Noise Reduction | 3D DNR |
| Built-in Analytics | Object Line Crossing Detection, Object Enter Area Detection, Object Exit Area Detection, Intrusion Detection (Forbidden Area Detection), Tampering Detection, Temperature Detection, Smoke Detection, Fire Detection |
Audio
| Audio Type | 2-way, Mic-in, Line-in, Line-out |
Network
| Ethernet Port | 1 x Ethernet (10/100 Base-T), RJ-45 connector |
Temperature Measurement
| Temperature Range | -20°C ~ 150°C (-4°F ~ 302°F) |
| Temperature Accuracy | ±8°C (14.4°F) |
Detection Range
| Triggering Analytics Event Notification | (People 1.8x0.5m) 77.6m (Vehicle 1.4x4.0m) 203.7m |
| Triggering Temperature Notification | (Object 0.2x0.2m) 32.3m (Object 1x1m) 61.7m |
| Triggering Fire Detection Event Notification | (Object 0.2x0.2m) 116.4m |
| Observation Range | Detection: People 404m; Vehicle 1239m Recognition: People 101m; Vehicle 310m Identification: People 50m; Vehicle 155m |
Integration
| ONVIF Compliant | Yes, Profile S, Profile G |
Interface
| Serial Port | 1 x RS-485 |
| Analog Video Output | 1 x BNC connector, for installation only |
| Digital Input/Output | 2/2 |
General
| Power Source | DC 12V, AC 24V, PoE Class 3 (IEEE802.3af) |
| Power Consumption | 8.5 W (DC), 8.5 W (AC), 8.5 W (PoE) |
| Weight | 2400g (5.29lb) |
| Dimensions | (L x W x H): 321.3mm x 106.1mm x 107.0mm (12.65" x 4.18" x 4.21") |
| Environmental Casing | Weatherproof (IP67), Vandal proof metal casing (IK10) |
| Corrosion Protection | Optional for project request. Chassis corrosion resistance at the seashore approximately 2-3 years. |
| Operating Temperature | -40°C ~ 70°C (-40°F ~ 158°F) |
| Real-time Clock (RTC) | Yes |
| Warranty | 3 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
