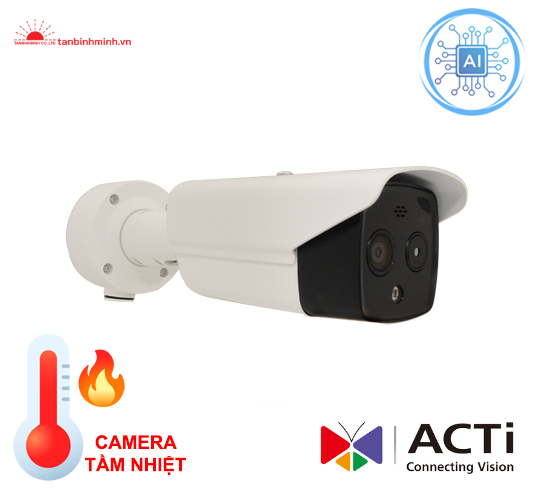

Camera AI TẦM NHIỆT IP ACTi VMGB-359

Camera AI tầm nhiệt IP thân dài

  • MS : VMGB-359
  • Bảo hành :
  • Kho hàng :
  • Hãng sản xuất : ACTi
  • Xuất xứ : TAIWAN
  • Seri sản phẩm :

Số lượng mua
Mua sản phẩm này
SP cùng loại
SP xem nhiều
Thông số kỹ thuật
Tổng quan
Video
Download
Phụ kiện



Device


Product Type Thermal Bullet
Maximum Resolution 4MP
Product Application Overheating Detection, Fire Detection
Application Environment Outdoor
Description Thermal network Bullet camera with 4MP H.265 optical module, for behavior analysis functions as Line crossing, Intrusion and area enter and exit that are for perimeter defense purpose.
Image Sensor Progressive Scan CMOS + Thermal sensor
Sensor Size Optical: 1/2.7"
Effective Pixels Thermal: 160(H) X 120(V)
Optical: 2688(H) X 1520(V)
Spectral Range 8-14 μm
Thermal Sensitivity NETD <40mK at F1.1
Spatial Resolution 2.74 mrad
Day / Night Yes
Low Light Sensitivity Superior
Minimum Illumination Color: 0.017 lux at F2.25 (AGC on); B/W: 0.003 lux at F2.25 (AGC on)
Mechanical IR Cut Filter Yes
IR LED Adaptive IR LED
IR Working Distance 40m
White LED Yes
White LED Working Distance 40m
Electronic Shutter 1-1/100000 second (auto mode)
S/N Ratio 75 dB

Lens


Number of Lenses 2 Lenses
Focal Length (Thermal camera)
Fixed focal, f6.2mm
(Visual camera)
Fixed focal, f8.0mm
Focus Fixed focus
Horizontal Viewing Angle (Thermal camera)
25.0°
(Visual camera)
39.42°
Vertical Viewing Angle (Thermal camera)
18.7°
(Visual camera)
22.14°

Video


Compression H.265 Adaptive Stream (equivalent to Zip or Smart Stream or H.265+), H.264, MJPEG
Maximum Frame Rate vs. Resolution (Visual camera)
30 fps at 2688 x 1520
30 fps at 1920 x 1080
30 fps at 1280 x 720
30 fps at 704 x 480
(Thermal camera)
25 fps at 1280 x 720
25 fps at 704 x 576
25 fps at 640 x 480
25 fps at 352 x 288
25 fps at 320 x 240
Multi-Streaming Simultaneous dual streams
Wide Dynamic Range Superior WDR (120 dB)
Digital Noise Reduction 3D DNR
Built-in Analytics Object Line Crossing Detection, Object Enter Area Detection, Object Exit Area Detection, People Line Crossing Detection, People Enter Area Detection, People Enter Area Detection, People Exit Area Detection, Vehicle Line Crossing Detection, Vehicle Enter Area Detection, Vehicle Exit Area Detection, Intrusion Detection (Forbidden Area Detection), Temperature Detection, Smoking Detection, Fire Detection (Temperature-based with threshold setup)

Audio


Audio Type 2-way, Mic-in, Stereo Line-in, Line-out
Audio Compression G.711, G.722.1, G.726, PCM, MP2L2

Network


Network Protocol & Service IPv4/v6, TCP, UDP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, UPnP, QoS, SNMP, TLS 1.2, IEEE 802.1X
Ethernet Port 1 x Ethernet (10/100 Base-T), RJ-45 connector
Security IP address filtering, HTTPS encryption, Password protected user level

Temperature Measurement


Temperature Range -20°C ~ 150°C (-4°F ~ 302°F)
Temperature Accuracy ±8°C

Detection Range


Triggering Analytics Event Notification (People 1.8x0.5m) 30m
(Vehicle 1.4x4.0m) 85m
(Supported Analytics Events included Line Crossing Detection, Enter Area Detection and Exit Area Detection for People, Vehicle and any objects.)
Triggering Temperature Notification (Object 0.2x0.2m) 13.6m
(Object 1x1m) 68m
Triggering Fire Detection Event Notification (Object 0.2x0.2m) 62m
Observation Range Detection: People 182m; Vehicle 559m
Recognition: People 46m; Vehicle 140m
Identification: People 23m; Vehicle 70m
(People: 1.8 x 0.5m)
(Vehicle: 1.4 x 4.0m)

Event


Event Trigger External device through digital input, Sound detection, Temperature Exception Detection (up to 10 points, 10 areas and 1 line), Intelligent event detection
Event Response Send E-mail Notification, Flashing alarm light, Save video to storage, Activate external device through digital output

System


Language Multi-Language, English, Traditional Chinese

Integration


ONVIF Compliant Yes

Interface


Serial Port 1 x RS-485
Audio Interface 1/1, 3.5mm Phone Jack
Analog Video Output 1 x BNC connector, for installation only
Digital Input/Output 2/2

General


Power Source DC 12V, PoE Class 3 (IEEE802.3af)
Power Consumption 6 W (DC), 6.5 W (PoE)
Weight 1760g (3.88lb)
Dimensions (L x W x H): 358.3mm x 113.5mm x 115.2mm (14.10" x 4.47" x 4.53")
Environmental Casing Weatherproof (IP67), Vandal proof metal casing (IK10)
Corrosion Protection Optional for project request. Chassis corrosion resistance at the seashore approximately 2-3 years.
Operating Temperature -40°C ~ 60°C (-40°F ~ 140°F)
Approvals CE Class B, FCC Class B, IP67, IK10 (metal casing)
Real-time Clock (RTC) Yes
Warranty 3 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty
