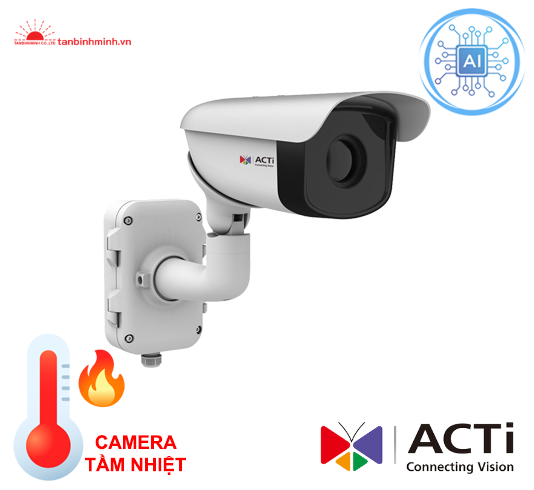

Camera AI TẦM NHIỆT IP ACTi A370

Camera AI tầm nhiệt IP thân dài

  • MS : A370
  • Bảo hành :
  • Kho hàng :
  • Hãng sản xuất : ACTi
  • Xuất xứ : TAIWAN
  • Seri sản phẩm :

Số lượng mua
Mua sản phẩm này
SP cùng loại
SP xem nhiều
Thông số kỹ thuật
Tổng quan
Video
Download
Phụ kiện



Device


Product Type Thermal Bullet
Maximum Resolution 1MP
Product Application Overheating Detection, Fire Detection
Application Environment Outdoor
Image Sensor Thermal
Effective Pixels Thermal: 640(H) X 512(V)
Pixel Interval 17 μm
Spectral Range 8-14 μm
Thermal Sensitivity NETD <35mK at F1.0
Spatial Resolution 0.23 mrad
Day / Night Yes
Low Light Sensitivity Standard
Mechanical IR Cut Filter No
IR LED No
S/N Ratio 75 dB

Live View


Digital Zoom Yes

Lens


Focal Length Fixed focal, f75mm
Aperture F1.0
Iris Fixed iris
Focus Fixed focus
Horizontal Viewing Angle 8.3°
Vertical Viewing Angle 6.6°

Video


Compression H.265, H.264, MJPEG
Maximum Frame Rate vs. Resolution (50Hz)
25 fps at 1280 x 720
25 fps at 704 x 576
25 fps at 640 x 512
25 fps at 352 x 288
Multi-Streaming Simultaneous triple streams
Wide Dynamic Range Basic WDR
Digital Noise Reduction 3D DNR
Built-in Analytics Object Line Crossing Detection, Object Enter Area Detection, Object Exit Area Detection, Intrusion Detection (Forbidden Area Detection), Tampering Detection, Temperature Detection, Fire Detection

Audio


Audio Type 2-way, Mic-in, Line-in, Line-out
Audio Compression G.722.1, G.711, G.726, PCM, MP2L2, AAC

Network


Network Protocol & Service IPv4/v6, DHCP, TCP, PPPoE, UDP, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, SFTP, IGMP, ICMP, ARP, IEEE 802.1X, UPnP, SNMP, QoS, IEEE 802.1X
Ethernet Port 1 x Ethernet (10/100 Base-T), RJ-45 connector
Security IP address filtering, HTTPS encryption, Password protected user level, IEEE 802.1X network access control

Temperature Measurement


Temperature Range -20°C ~ 150°C (-4°F ~ 302°F)
Temperature Accuracy ±8°C, ±8%

Detection Range


Triggering Analytics Event Notification (People 1.8x0.5m) 551m
(Vehicle 1.4x4.0m) 1544m
Triggering Temperature Notification (Object 0.2x0.2m) 45m
Triggering Fire Detection Event Notification (Object 0.2x0.2m) 150m
Observation Range Detection: People 2206m; Vehicle 6765m
Recognition: People 551m; Vehicle 1691m
Identification: People 276m; Vehicle 846m
(People: 1.8 x 0.5m)
(Vehicle: 1.4 x 4.0m)

Event


Event Trigger External device through digital input, Fire Detection (up to 10 fire points) Intelligent event detection,
Event Response Send E-mail Notification, Activate external device through digital output, Upload snapshot to FTP server, Save video to storage

Integration


Web Browser IE 11, Google Chrome, Firefox

Interface


Serial Port 1 x RS-485
Audio Interface 1/1, 3.5mm Phone Jack
Digital Input/Output 2/2

General


Power Source AC 24V, PoE Class 4 (IEEE802.3at)
Power Consumption 5 W (AC), 5.5 W (PoE)
Weight 7000g (15.43lb)
Dimensions (L x W x H):535mm x 400mm x 171mm (21.06" x 15.75" x 6.73")
Environmental Casing Weatherproof (IP67)
Corrosion Protection Ordering Number will be created upon orders.. Chassis corrosion resistance at the seashore approximately 2-3 years.
Bundled Accessories Integrated bracket
Operating Temperature -40°C ~ 65°C (-40°F ~ 149°F)
Operating Humidity ≤90% RH, non-condensing
Real-time Clock (RTC) Yes
Warranty 3 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty
