CHI TIẾT SẢN PHẨM

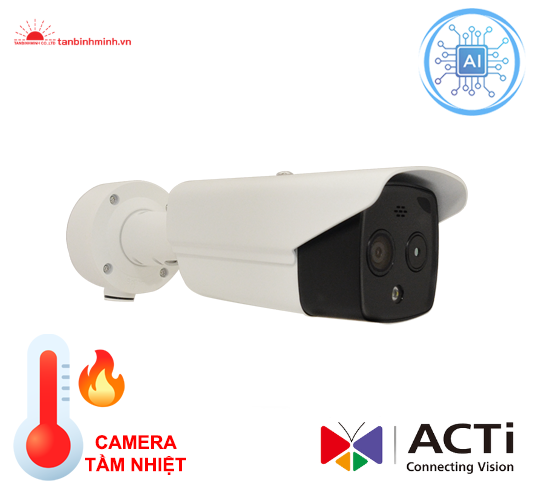

Camera AI TẦM NHIỆT IP ACTi VMGB-359-P1
Camera AI tầm nhiệt IP thân dài
- MS : VMGB-359-P1
- Bảo hành :
- Kho hàng :
- Hãng sản xuất : ACTi
- Xuất xứ : TAIWAN
- Seri sản phẩm :
Số lượng mua
SP cùng loại
SP xem nhiều
Thông số kỹ thuật
Tổng quan
Video
Download
Phụ kiện
Device
| Product Type | Thermal Bullet |
| Maximum Resolution | 4MP |
| Product Application | Overheating Detection, Fire Detection |
| Application Environment | Outdoor |
| Description | Thermal network Bullet camera with 4MP H.265 optical module, for behavior analysis functions as Line crossing, Intrusion and area enter and exit that are for perimeter defense purpose. |
| Image Sensor | Progressive Scan CMOS + Thermal sensor |
| Sensor Size | Optical: 1/2.7" |
| Effective Pixels | Thermal: 160(H) X 120(V) Optical: 2688(H) X 1520(V) |
| Pixel Interval | 17 μm |
| Spectral Range | 8-14 μm |
| Thermal Sensitivity | NETD <40mK at F1.1 |
| Spatial Resolution | 5.48 mrad |
| Day / Night | Yes |
| Low Light Sensitivity | Superior |
| Minimum Illumination | Color: 0.0089 lux at F1.6 (AGC on); B/W: 0 lux (IR LED on) |
| Mechanical IR Cut Filter | Yes |
| IR LED | Adaptive IR LED |
| IR Working Distance | 40m |
| White LED | Yes |
| White LED Working Distance | 40m |
| Electronic Shutter | 1-1/100000 second (auto mode) |
| S/N Ratio | 75 dB |
Lens
| Number of Lenses | 2 Lenses |
| Focal Length | (Thermal camera) Fixed focal, f3.1mm (Visual camera) Fixed focal, f4.0mm |
| Aperture | (Thermal camera) F1.1 (Visual camera) F1.6 |
| Focus | Fixed focus |
| Horizontal Viewing Angle | (Thermal camera) 50° (Visual camera) 84° |
| Vertical Viewing Angle | (Thermal camera) 37.2° (Visual camera) 44.8° |
Video
| Compression | H.265 Adaptive Stream (equivalent to Zip or Smart Stream or H.265+), H.264, MJPEG |
| Maximum Frame Rate vs. Resolution | (Visual camera) 30 fps at 2688 x 1520 30 fps at 1920 x 1080 30 fps at 1280 x 720 30 fps at 704 x 480 (Thermal camera) 25 fps at 1280 x 720 25 fps at 704 x 576 25 fps at 640 x 480 25 fps at 352 x 288 25 fps at 320 x 240 |
| Multi-Streaming | Simultaneous dual streams |
| Wide Dynamic Range | Superior WDR (120 dB) |
| Digital Noise Reduction | 3D DNR |
| Built-in Analytics | Object Line Crossing Detection, Object Enter Area Detection, Object Exit Area Detection, People Line Crossing Detection, People Enter Area Detection, People Exit Area Detection, Vehicle Line Crossing Detection, Vehicle Enter Area Detection, Vehicle Exit Area Detection, Intrusion Detection (Forbidden Area Detection), Temperature Detection, Fire Detection (Temperature-based with threshold setup) |
Audio
| Audio Type | 2-way, Mic-in, Stereo Line-in, Line-out |
| Audio Compression | G.711, G.722.1, G.726, PCM, MP2L2 |
Network
| Network Protocol & Service | IPv4/v6, TCP, UDP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, UPnP, QoS, SNMP, TLS 1.2, IEEE 802.1X |
| Ethernet Port | 1 x Ethernet (10/100 Base-T), RJ-45 connector |
| Security | IP address filtering, HTTPS encryption, Password protected user level |
Temperature Measurement
| Temperature Range | -20°C ~ 150°C (-4°F ~ 302°F) |
| Temperature Accuracy | ±8°C (14.4°F) |
Detection Range
| Triggering Analytics Event Notification | (People 1.8x0.5m) 15m (Vehicle 1.4x4.0m) 43m |
| Triggering Temperature Notification | (Object 0.2x0.2m) 6.82m (Object 1x1m) 34.1m |
| Triggering Fire Detection Event Notification | (Object 0.2x0.2m) 31m |
| Observation Range | Detection: People 91m; Vehicle 280m Recognition: People 23m; Vehicle 70m Identification: People 11m; Vehicle 35m |
Integration
| ONVIF Compliant | Yes, Profile S, Profile G, Profile T |
Interface
| Serial Port | 1 x RS-485 |
| Audio Interface | 1/1, 3.5mm Phone Jack |
| Analog Video Output | 1 x BNC connector, for installation only |
| Digital Input/Output | 2/2 |
General
| Power Source | DC 12V, PoE Class 3 (IEEE802.3af) |
| Power Consumption | 6 W (DC), 6.5 W (PoE) |
| Weight | 1760g (3.88lb) |
| Dimensions | (L x W x H): 358.3mm x 113.5mm x 115.2mm (14.10" x 4.47" x 4.53") |
| Environmental Casing | Weatherproof (IP67), Vandal proof metal casing (IK10) |
| Corrosion Protection | Optional for project request. Chassis corrosion resistance at the seashore approximately 2-3 years. |
| Operating Temperature | -40°C ~ 65°C (-40°F ~ 149°F) |
| Operating Humidity | ≤95% RH, non-condensing |
| Approvals | CE Class B, FCC Class B, IP67, IK10 (metal casing) |
| Real-time Clock (RTC) | Yes |
| Warranty | 3 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
