CHI TIẾT SẢN PHẨM

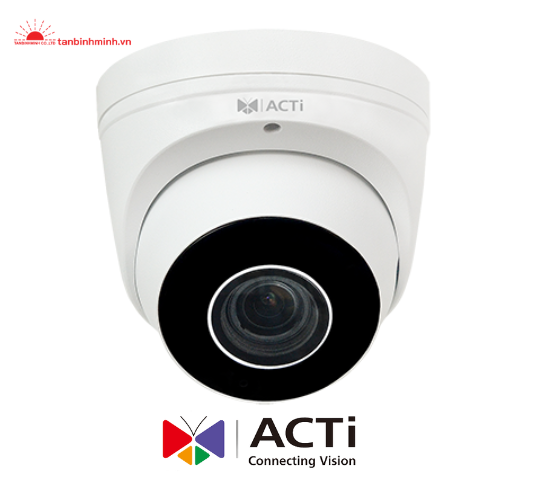

Camera IP Zoom Z82
Camera IP Zoom
- MS : Z82
- Bảo hành :
- Kho hàng :
- Hãng sản xuất : ACTi
- Xuất xứ : TAIWAN
- Seri sản phẩm :
Số lượng mua
SP cùng loại
SP xem nhiều
Thông số kỹ thuật
Tổng quan
Video
Download
Phụ kiện
| Product Type | Zoom Dome |
| Maximum Resolution | 4MP |
| Application Environment | Outdoor |
| Description | 4MP Outdoor Zoom Dome with D/N, Adaptive IR, Extreme WDR, SLLS, 4.4x Zoom lens |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/3 " |
| Day / Night | Yes |
| Low Light Sensitivity | Superior |
| Minimum Illumination | Color: 0.02 lux; B/W: 0 lux (IR LED on) |
| Mechanical IR Cut Filter | Yes |
| IR LED | Adaptive IR LED |
| IR Working Distance | 30m |
| S/N Ratio | 52 dB |
Lens
| Focal Length | Zoom, f2.7-12mm |
| Aperture | F1.4 |
| Zoom Ratio | 4.4x optical |
| Zoom Application | Camera Installation |
| Focus | Auto focus |
| Lens Mount | Board mount |
| Horizontal Viewing Angle | 91° - 27° |
| Vertical Viewing Angle | 67.4° - 14.2° |
| Viewing Angle Adjustment | Pan: 0°-360°, Tilt: 15°-90°, Rotation: 0°-360° |
Video
| Compression | H.265, H.264 (Baseline/ Main/ High profile), MJPEG |
| Maximum Frame Rate vs. Resolution | 20 fps at 2592 x 1520 25 fps at 2560 x 1440 30 fps at 2048 x 1520 30 fps at 1920 x 1080 |
| Multi-Streaming | Simultaneous triple streams |
| Wide Dynamic Range | Extreme WDR (120 dB) |
| Image Enhancement | White Balance, Brightness, Saturation, Contrast, Sharpness, Automatic gain control, Defogging |
| Digital Noise Reduction | 2D + 3D DNR |
| Privacy Mask | 8 configurable regions |
| Text Overlay | Yes |
| Built-in Analytics | Tampering Detection |
| Image Orientation | Flip, Mirror, Rotation |
Audio
| Audio Type | 1-way, Built-in Microphone |
Network
| Ethernet Port | 1 x Ethernet (10/100 Base-T), RJ-45 pigtail connector |
Integration
| ONVIF Compliant | Yes, Profile S |
| Web Browser | IE 11 |
Interface
| Local Storage | MicroSDHC Memory Card Slot (card not included, up to 128GB) |
General
| Power Source | DC 12V, PoE Class 3 (IEEE802.3af) |
| Power Consumption | 8.16 W (PoE) |
| Weight | 670g (1.48lb) |
| Dimensions | (Ø x H): 129mm x 110mm (5.08" x 4.3") |
| Environmental Casing | Weatherproof (IP67) |
| Operating Temperature | -40°C ~ 60°C (-40°F ~ 140°F) |
| Approvals | CE, FCC, IP67 |
| Warranty | 2 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
Photo Indication
- DC12V Power Input Jack
- Ethernet Port
- Reset Button
- Memory Card Slot
Dimension Diagram
Unit: mm [inch]
