CHI TIẾT SẢN PHẨM

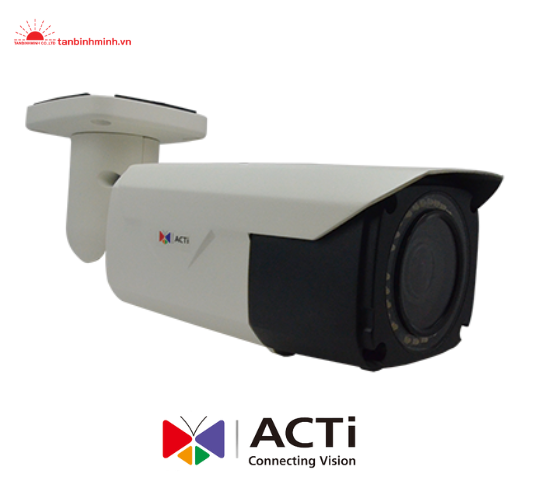

Camera IP Zoom A421

Camera IP Zoom

  • MS : A421
  • Bảo hành :
  • Kho hàng :
  • Hãng sản xuất : ACTi
  • Xuất xứ : TAIWAN
  • Seri sản phẩm :

Số lượng mua
Thông số kỹ thuật
Tổng quan
Video
Download
Phụ kiện



Product Type Zoom Bullet
Maximum Resolution 8MP
Product Application Face, People and Car Detection
Application Environment Outdoor
Image Sensor Progressive Scan CMOS
Sensor Size 1/2.8 "
Effective Pixels 3864(H) X 2192(V) (8.46 MP)
Day / Night Yes
Low Light Sensitivity Superior
Minimum Illumination Color: 0.05 lux at F1.5, B/W: 0.005 lux at F1.5
Mechanical IR Cut Filter Yes
IR LED Adaptive IR LED
IR Working Distance 30m
Horizontal Resolution (TV Lines) 2000 TVL

Lens


Focal Length Zoom, f2.8-12mm
Aperture F1.3
Zoom Ratio 4.3x optical
Zoom Application Camera Installation
Iris Adaptive iris
Focus Auto focus
Lens Mount Board mount

Video


Compression H.265, H.264, MJPEG
Maximum Frame Rate vs. Resolution 30 fps at 3840 x 2160 (4K Ultra HD)
30 fps at 2592 x 1944
30 fps at 2048 x 1536
30 fps at 1920 x 1080
30 fps at 1280 x 720
30 fps at 800 x 600
30 fps at 720 x 480
30 fps at 640 x 480
30 fps at 320 x 240
Multi-Streaming Simultaneous triple streams
Bit Rate Mode Constant, Variable
Wide Dynamic Range Extreme WDR (130 dB)
Image Enhancement White Balance, Brightness, Backlight compensation (BLC), Contrast, Saturation, Sharpness, Automatic gain control, Flickerless, Digital Image Stabilizer (DIS, EIS), Defogging
Digital Noise Reduction 2D + 3D DNR
Privacy Mask 4 configurable regions
Built-in Analytics People Detection*, Car Detection*, Face Detection*, People Line Crossing Detection*, People Enter Area Detection*, People Exit Area Detection*, Vehicle Line Crossing Detection*, Vehicle Enter Area Detection*, Vehicle Exit Area Detection*
Image Orientation Flip, Mirror, Rotation

Audio


Audio Type 2-way, Mic-in, Line-in, Line-out

Network


Ethernet Port 1 x Ethernet (10/100 Base-T), RJ-45 pigtail connector
Security IP address filtering, HTTPS encryption, Password protected user level, Anonymous login

Integration


ONVIF Compliant Yes

Interface


Local Storage MicroSDHC, MicroSDXC memory card slot (card not included)
Digital Input/Output 1/1

General


Power Source DC 12V, PoE
Power Consumption 12.95 W (PoE)
Weight 1252g (2.76lb)
Dimensions (W x H x D): 94mm x 80.87mm x 291.16mm (3.70" x 3.18" x 11.46")
Environmental Casing Weatherproof (IP66), Vandal proof metal casing (IK10)
Starting Temperature -20°C ~ 50°C (-4°F ~ 122°F)
Operating Temperature -30°C ~ 50°C (-22°F ~ 122°F)
Approvals CE Class B, FCC Class B, IP66, IK10 (metal casing)
Warranty 3 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty
Comments * To be available through future firmware upgrade

Photo Indication

  1. Audio Output
  2. DC 12V Power Input
  3. Factory Reset
  4. Audio Input
  5. Ethernet Port
  6. Digital Input / Output
