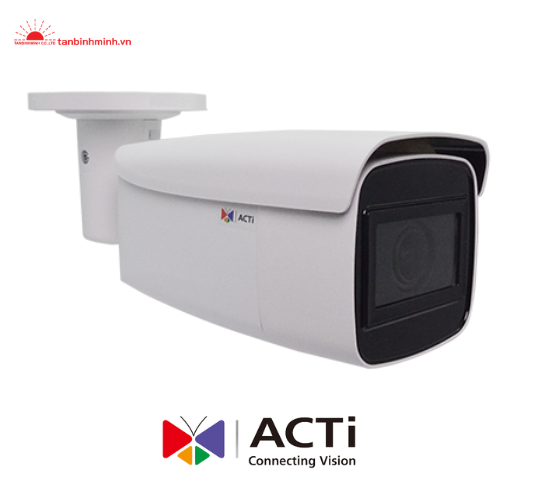

Camera IP Zoom A44

Camera IP Zoom

  • MS : A44
  • Bảo hành :
  • Kho hàng :
  • Hãng sản xuất : ACTi
  • Xuất xứ : TAIWAN
  • Seri sản phẩm :

Số lượng mua
Mua sản phẩm này
SP cùng loại
SP xem nhiều
Thông số kỹ thuật
Tổng quan
Video
Download
Phụ kiện



Product Type Zoom Bullet
Maximum Resolution 12MP
Product Application Face, People and Car Detection
Application Environment Outdoor
Image Sensor Progressive Scan CMOS
Sensor Size 1/1.7 "
Effective Pixels 4072(H) X 3046(V) (12.4 MP)
Day / Night Yes
Low Light Sensitivity Superior
Minimum Illumination Color: 0.05 lux at F1.5, B/W: 0.005 lux at F1.5
Color to B/W Switch ISP based switch, configurable
Mechanical IR Cut Filter Yes
IR Sensitivity Range 700-1150nm
IR LED Adaptive IR LED
IR Working Distance 30m
Electronic Shutter 1/5-1/64000 second (manual mode); 1/5-1/64000 second (auto mode)
Horizontal Resolution (TV Lines) 3000 TVL

Lens


Focal Length Zoom, f3.6-11mm
Aperture F1.5
Zoom Ratio 3x optical
Zoom Application Camera Installation
Iris P-Iris
Focus Auto focus
Lens Mount Board mount
Horizontal Viewing Angle 110.3° - 45.6°
Vertical Viewing Angle 55.5° - 24°

PTZ


Pan, Tilt or Zoom protocol Visca, Pelco-D, Pelco-P, ACTi URL command

Video


Compression H.265, H.264 (Baseline/ Main/ High profile), MJPEG
Maximum Frame Rate vs. Resolution 20 fps at 4000 x 3000
30 fps at 4096 x 2160 (4K Ultra HD)
30 fps at 3840 x 2160 (4K Ultra HD)
30 fps at 2592 x 1944
30 fps at 2048 x 1536
30 fps at 1920 x 1080
30 fps at 1280 x 720
30 fps at 800 x 600
30 fps at 720 x 480
30 fps at 640 x 480
30 fps at 320 x 240
Multi-Streaming Simultaneous triple streams based on three configurations
Bit Rate 128Kbps - 12Mbps (per stream)
Bit Rate Mode Constant, Variable
Wide Dynamic Range Extreme WDR (130 dB)
Image Enhancement White Balance, Brightness, Contrast, Sharpness, Automatic gain control, Flickerless, Digital Image Stabilizer (DIS, EIS), Defogging
Digital Noise Reduction 2D + 3D DNR
Privacy Mask Yes, 4 configurable regions
Text Overlay Yes
On-Screen Graphics Yes
Built-in Analytics People Detection, Car Detection, Tampering Detection
Server-based Analytics Object Line Counting, People Counting, Face Detection, Object Based Motion Detection, Tamper, Object Line Crossing Detection, Object Enter Area Detection, Missing Object Detection, Unattended Object Detection, Smoke Detection, Heat Map, Dwell Time, Direction Detection, Automatic License Plate Recognition, People Queue Detection, (Require PC-based or standalone IVS or ALPR Server. Contact ACTi support for recommendations on how to maximize analytical accuracy)
Image Orientation Flip, Mirror, Rotation
IVS performance Certain algorithms may require more computing power, which may limit the number of algorithms that can be concurrently used in the camera. Please test the actual performance before using in a project.

Audio


Audio Type 2-way, Mic-in, Line-in, Line-out
Audio Compression 8 kHz, Mono, G.711

Network


Network Protocol & Service IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X
Ethernet Port 1 x RJ-45 pigtail connector
Security IP address filtering, HTTPS encryption, Password protected user level, Anonymous login, IEEE 802.1X network access control

Video Analytics


Analysis Source Type Video
Metadata Accuracy Standard

Event


Event Trigger Video motion detection (3 regions), External device through digital input, Sound detection, Tampering detection, Intelligent event detection.

Event Response Notify control center, Change camera settings, Command other devices, E-mail notification with snapshots, Play the audio file, Push notification to mobile device, Save video to local storage, Upload video to NVR server, Upload video or snapshot to FTP server, Activate external device through digital output

Integration


Unified Solution Fully compatible with ACTi software
Software Development Kit Yes
GPS Position Manual setting
ONVIF Compliant Yes, Profile S, Profile G, Profile T, Profile Q
Web Browser IE 11
Auto Firmware Upgrade Yes

Interface


Audio Interface 1/1, Cable with 3.5mm Phone Jack
Analog Video Output 1 x CVBS, BNC connector, for installation only
Local Storage MicroSDHC, MicroSDXC Memory Card Slot (card not included, up to 256GB)
Digital Input/Output 1/1 (Cable with Terminal block)

General


Power Source DC 12V, PoE Class 3 (IEEE802.3af)
Power Consumption 12.95 W (PoE)
Weight 1252g (2.76lb)
Dimensions (W x H x D): 94mm x 86mm x 291.1mm (3.7" x 3.38" x 11.46")
Environmental Casing Weatherproof (IP66), Vandal proof metal casing (IK10)
Bundled Accessories Integrated bracket
Mount Type Integrated Bracket, Pole Mount
Starting Temperature -20°C ~ 50°C (-4°F ~ 122°F)
Operating Temperature -30°C ~ 50°C (-22°F ~ 122°F)
Operating Humidity 20% - 80% RH
Approvals CE, FCC, IP66, IK10 (metal casing)
Warranty 3 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty

Photo Indication

  1. Audio Output
  2. DC 12V Power Input
  3. Factory Reset
  4. BNC Video Output
  5. Audio Input
  6. Ethernet Port
  7. Digital Input / Output

Dimension Diagram

Unit: mm [inch]
