CHI TIẾT SẢN PHẨM

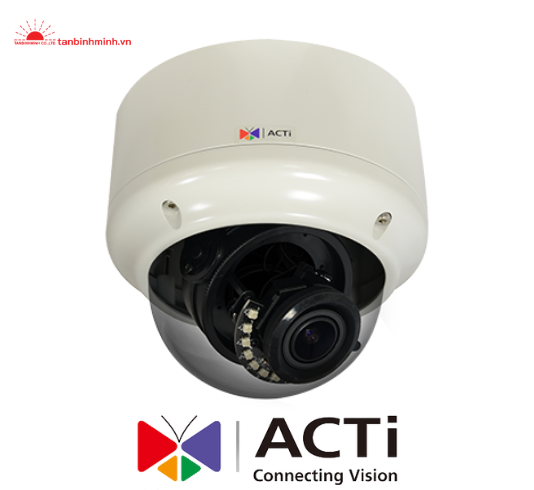

Camera IP Zoom A81

Camera IP Zoom

  • MS : A81
  • Bảo hành :
  • Kho hàng :
  • Hãng sản xuất : ACTi
  • Xuất xứ : TAIWAN
  • Seri sản phẩm :

Số lượng mua
Thông số kỹ thuật
Tổng quan
Video
Download
Phụ kiện



Product Type Zoom Dome
Maximum Resolution 3MP
Application Environment Outdoor
Image Sensor Progressive Scan CMOS
Sensor Size 1/2.8 "
Effective Pixels 2065(H) X 1553(V) (3.21 MP)
Day / Night Yes
Low Light Sensitivity Superior
Minimum Illumination Color: 0.05 lux at F1.4; B/W 0.005 lux at F1.4 (AGC on)
Color to B/W Switch ISP based switch, configurable
Mechanical IR Cut Filter Yes
IR Sensitivity Range 700-1150nm
IR LED Adaptive IR LED x 12 (850 nm)
IR Working Distance 30m
Electronic Shutter 1/5-1/64000 second (manual mode); 1/5-1/64000 second (auto mode)
Horizontal Resolution (TV Lines) 1300 TVL
S/N Ratio 56 dB

Lens


Focal Length Zoom, f2.8-12mm
Aperture F1.4-F2.8
Zoom Ratio 4.3x optical
Zoom Application Camera Installation
Iris P-Iris
Focus Auto focus
Lens Mount Board mount
Horizontal Viewing Angle 90.6° - 32.7°
Vertical Viewing Angle 67.6° - 24.2°
Viewing Angle Adjustment Pan: -135°-135°, Tilt: 0°-90°, Rotation: -90°-90°

PTZ


Pan, Tilt or Zoom protocol Pelco-D, Pelco-P, ACTi URL command

Video


Compression H.265, H.264 (Baseline/ Main/ High profile), MJPEG
Maximum Frame Rate vs. Resolution 30 fps at 2048 x 1536
30 fps at 1920 x 1080
30 fps at 1280 x 960
30 fps at 1280 x 720
30 fps at 800 x 600
30 fps at 720 x 480
30 fps at 640 x 480
30 fps at 320 x 240
Multi-Streaming Simultaneous dual streams based on two configurations
Bit Rate 28Kbps - 12Mbps (per stream)
Bit Rate Mode Constant, Variable
Wide Dynamic Range Extreme WDR (142 dB)
Image Enhancement White Balance, Brightness, Contrast, Sharpness, Automatic gain control, Flickerless, Digital Image Stabilizer (DIS, EIS), Defogging
Digital Noise Reduction 2D + 3D DNR
Privacy Mask 4 configurable regions
Text Overlay Yes
On-Screen Graphics Yes
Built-in Analytics Tampering Detection
Server-based Analytics Object Line Counting, People Counting, Face Detection, Object Based Motion Detection, Tamper, Object Line Crossing Detection, Object Enter Area Detection, Missing Object Detection, Unattended Object Detection, Smoke Detection, Heat Map, Dwell Time, Direction Detection, Automatic License Plate Recognition, People Queue Detection, (Require PC-based or standalone IVS or ALPR Server. Contact ACTi support for recommendations on how to maximize analytical accuracy)
Image Orientation Mirror, Flip, Rotation

Audio


Audio Type 2-way, Mic-in, Line-in, Line-out
Audio Compression 8 kHz, Mono, G.711

Network


Network Protocol & Service IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP
Ethernet Port 1 x RJ-45 connector
Security IP address filtering, HTTPS encryption, Password protected user level, Anonymous login

Event


Event Trigger Video motion detection (3 regions), External device through digital input, Sound detection, Tampering detection,
Event Response Notify control center, Change camera settings, Command other devices, E-mail notification with snapshots, Play the audio file, Push notification to mobile device, Save video to local storage, Upload video or snapshot to FTP server, Activate external device through digital output

Integration


Unified Solution Fully compatible with ACTi software
GPS Position Manual setting
ONVIF Compliant Yes, Profile S, Profile G, Profile T, Profile Q
Web Browser IE 11
Auto Firmware Upgrade Yes

Interface


Audio Interface Terminal block
Analog Video Output 1 x CVBS, Terminal block, for installation only
Local Storage MicroSDHC, MicroSDXC Memory Card Slot (card not included, up to 128GB)
Digital Input/Output 1/1 (Terminal block)

General


Power Source DC 12V, PoE Class 3 (IEEE802.3af)
Power Consumption 10 W (PoE)
Weight 889g (1.96lb)
Dimensions (Ø x H): 139.95mm x 131.17mm (5.5" x 5.2")
Environmental Casing Weatherproof (IP66), Vandal proof (IK10)
Mount Type Surface, Pendant, Wall Mount
Starting Temperature -20°C ~ 50°C (-4°F ~ 122°F)
Operating Temperature -40°C ~ 50°C (-40°F ~ 122°F)
Operating Humidity 20% - 80% RH
Approvals CE Class A, FCC Class A, IP66, NEMA 4X, IK10
Warranty 3 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty

Photo Indication

  1. Ethernet Port
  2. Digital Input/Output
  3. Memory Card Slot
  4. Reset Button
  5. DC 12V Power Input

Dimension Diagram

Unit: mm [inch]
