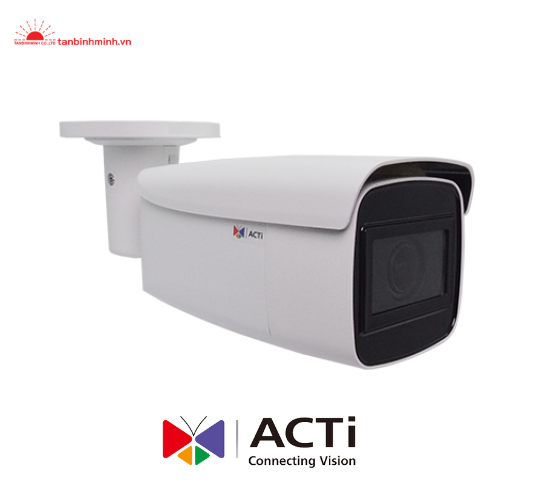

Camera IP Zoom A416

Camera IP Zoom

  • MS : A416
  • Bảo hành :
  • Kho hàng :
  • Hãng sản xuất : ACTi
  • Xuất xứ : TAIWAN
  • Seri sản phẩm :

Số lượng mua
Thông số kỹ thuật
Tổng quan
Video
Download
Phụ kiện



Product Type Zoom Bullet
Maximum Resolution 4MP
Application Environment Outdoor
Image Sensor Progressive Scan CMOS
Sensor Size 1/2.7 "
Effective Pixels 2688(H) X 1520(V) (4 MP)
Day / Night Yes
Low Light Sensitivity Superior
Minimum Illumination Color: 0.01 lux at F1.2 (AGC on); B/W: 0.001 lux at F1.6 (AGC on), 0 lux (IR LED on)
Color to B/W Switch ISP based switch, configurable
Mechanical IR Cut Filter Yes
IR LED IR LED x 4 (850 nm)
IR Working Distance 85m (1.0 lux)
Electronic Shutter 1/30-1/64000 second (auto mode)
S/N Ratio 58 dB

Lens


Focal Length Zoom, f2.7-13.5mm
Aperture F1.6
Zoom Ratio 5x optical
Zoom Application Camera Installation
Iris Fixed iris
Focus Auto focus
Lens Mount Board mount
Horizontal Viewing Angle 104° - 29°
Vertical Viewing Angle 55° - 17°

Video


Compression H.265, H.264 (Main/ High profile), MJPEG
Maximum Frame Rate vs. Resolution 30 fps at 2688 x 1520
30 fps at 2560 x 1440
30 fps at 1920 x 1080
30 fps at 1280 x 960
30 fps at 1280 x 720
30 fps at 640 x 480
Multi-Streaming Simultaneous quad streams
Bit Rate 128Kbps - 12Mbps (per stream)
Bit Rate Mode Constant, Variable
Wide Dynamic Range Extreme WDR (150 dB)
Image Enhancement White Balance, Backlight compensation (BLC), Brightness, Contrast, Sharpness, Automatic gain control
Digital Noise Reduction 2D + 3D DNR
Privacy Mask 4 configurable regions
Text Overlay Yes
Built-in Analytics Tampering Detection, Face Detection, Object Line Crossing Detection, Object Enter Area Detection
Server-based Analytics Object Line Counting, People Counting, Face Detection, Object Based Motion Detection, Tamper, Object Line Crossing Detection, Object Enter Area Detection, Missing Object Detection, Unattended Object Detection, Smoke Detection, Heat Map, Dwell Time, Direction Detection, Automatic License Plate Recognition, People Queue Detection, (Require PC-based or standalone IVS or ALPR Server. Contact ACTi support for recommendations on how to maximize analytical accuracy)
Image Orientation Flip, Mirror, Rotation

Audio


Audio Type 2-way, Line-in, Mic-in, Line-out
Audio Compression G.711

Network


Network Protocol & Service IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X
Ethernet Port 1 x Ethernet (10/100 Base-T), RJ-45 pigtail connector
Security IP address filtering, HTTPS encryption, Password protected user level, Anonymous login, IEEE 802.1X network access control

Event


Event Trigger Video motion detection (10 included and excluded polygons regions), External device through digital input, Sound detection, Intelligent event detection
Event Response Notify control center, Change camera settings, Command other devices, E-mail notification with snapshots, Play the audio file, Push notification to mobile device, Save video to local storage, Upload video to NVR server, Upload video or snapshot to FTP server, Activate external device through digital output

Integration


Unified Solution Fully compatible with ACTi software
GPS Position Manual setting
ONVIF Compliant Yes, Profile S, Profile G, Profile Q, Profile T
GB28181 Compliant Yes
Web Browser IE 11
Auto Firmware Upgrade Yes

Interface


Audio Interface 1/1, Terminal block
Analog Video Output 1 x CVBS, BNC connector, for installation only
Local Storage MicroSD, MicroSDHC, MicroSDXC Memory Card Slot (card not included, up to 128GB)
Digital Input/Output 1/1 (Terminal block)

General


Power Source DC 12V, PoE Class 4 (IEEE802.3at)
Power Consumption 14.5 W (DC), 18 W (PoE)
Weight 1272g (2.804lb)
Dimensions (Ø x L): 105.1mm x 297.5mm (4.1" x 11.7")
Environmental Casing Weatherproof (IP68), Vandal proof metal casing (IK10)
Bundled Accessories Integrated bracket
Mount Type Integrated Bracket, Pole Mount
Operating Temperature -30°C ~ 60°C (-22°F ~ 140°F)
Operating Humidity 10% - 95% RH
Approvals CE Class B, FCC Class B, IP68, NEMA 4X, IK10 (metal casing)
Material Metal
Warranty 3 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty

Photo Indication

  1. Ethernet Port
  2. Digital Input / Output
  3. Audio Input / Output
  4. DC 12V Power Input
  5. Reset Button
  6. Analog Video Output Connector
  7. Memory Card Slot

Dimension Diagram

Unit: mm [inch]
