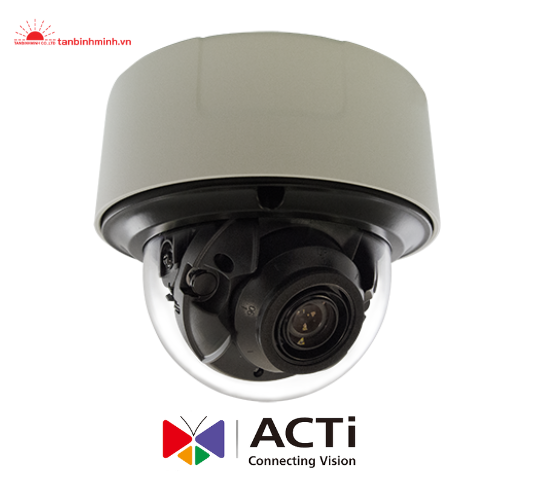

Camera IP Zoom VMGB-604

Camera IP Zoom

  • MS : VMGB-604
  • Bảo hành :
  • Kho hàng :
  • Hãng sản xuất : ACTi
  • Xuất xứ : TAIWAN
  • Seri sản phẩm :

Số lượng mua
Mua sản phẩm này
SP cùng loại
SP xem nhiều
Thông số kỹ thuật
Tổng quan
Video
Download
Phụ kiện



Product Type Metadata Camera
Maximum Resolution 4MP
Product Application Face Recognition, Face Counting, Hard Hat Detection, Queue management
Application Environment Indoor
Image Sensor Progressive Scan CMOS
Sensor Size 1/1.8 "
Day / Night Yes
Minimum Illumination Color: 0.001 lux at F1.2 (AGC on); B/W: 0 (IR LED on)
Mechanical IR Cut Filter Yes
IR LED Adaptive IR LED (850 nm)
IR Working Distance 30m
Electronic Shutter 1-1/100000 second (auto mode)

Lens


Focal Length Zoom, f2.8-12mm
Aperture F1.2
Zoom Ratio 4.3x optical
Iris P-Iris
Horizontal Viewing Angle 114.5° - 41.8°
Vertical Viewing Angle 59.3° - 23.6°
Viewing Angle Adjustment Pan: 0°-355°, Tilt: 0°-75°, Rotation: 0°-355°

Video


Compression H.265, H.264 (Baseline/ Main/ High profile), MJPEG
Maximum Frame Rate vs. Resolution 30 fps at 2680 x 1520
30 fps at 2560 x 1440
30 fps at 1920 x 1080
30 fps at 1280 x 720
30 fps at 704 x 480
30 fps at 640 x 480
Multi-Streaming Simultaneous 5 streams
Bit Rate Mode Constant, Variable
Wide Dynamic Range Extreme WDR (140 dB)
Image Enhancement White Balance, Saturation, Brightness, Contrast, Sharpness, Automatic gain control, Backlight compensation (BLC), Defogging, Digital Image Stabilizer (DIS, EIS)
Digital Noise Reduction 3D DNR
Privacy Mask Yes
Text Overlay Yes
On-Screen Graphics Yes
Built-in Analytics Face Detection, Face Recognition, Face Counting, Tampering Detection, Hard Hat Detection, Object Line Crossing Detection, Object Enter Area Detection, Object Exit Area Detection, Intrusion Detection (Forbidden Area Detection), Missing Object Detection, Unattended Object Detection, Queue management

Audio


Audio Type 2-way, Built-in Microphone, Line-in, Line-out
Audio Compression G.711, G.722.1, G.726, MP2L2, PCM, MP3

Network


Network Protocol & Service IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, SFTP, IGMP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X, SSL/TLS
Ethernet Port 1 x Ethernet (10/100/1000 Base-T), RJ-45 connector
Security IP address filtering, HTTPS encryption, Password protected user level, IEEE 802.1X network access control

Video Analytics


Analysis Source Type Video
Maximum detectable number of face or person 30 faces per frame (Recommendation)
Face Rotation ±60° (horizontal), ±30° (vertical)

Event


Event Trigger Video motion detection, External device through digital input, Tampering detection, Disk full, Disk not found
Event Response E-mail notification with snapshots, Save video to local storage, Upload snapshot to FTP server, Activate external device through digital output

Integration


ONVIF Compliant Yes, Profile S, Profile G, Profile T

Storage


User Database Face Picture Capacity: 30,000

Interface


Serial Port 1 x RS-485
Audio Interface 1/1, 3.5mm Phone Jack
Analog Video Output 1 x CVBS, Terminal block
Local Storage MicroSD, MicroSDHC, MicroSDXC Memory Card Slot (bundled 64GB SD card; support for up to 256GB)
Digital Input/Output 1/1

General


Power Source DC 12V (adapter not included), AC 24V, PoE Class 3 (IEEE802.3af)
Power Consumption 9.96 W (DC), 12 W (AC), 12 W (PoE)
Weight 985g (2.172lb)
Dimensions (Ø x H): 140.5mm x 122.6mm (5.5" x 4.8")
Environmental Casing Vandal proof (IK10)
Operating Temperature -30°C ~ 60°C (-22°F ~ 140°F)
Operating Humidity 10% - 95% RH
Approvals CE, FCC, CB, UL, LVD, BIS, IK10
Warranty 3 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty
