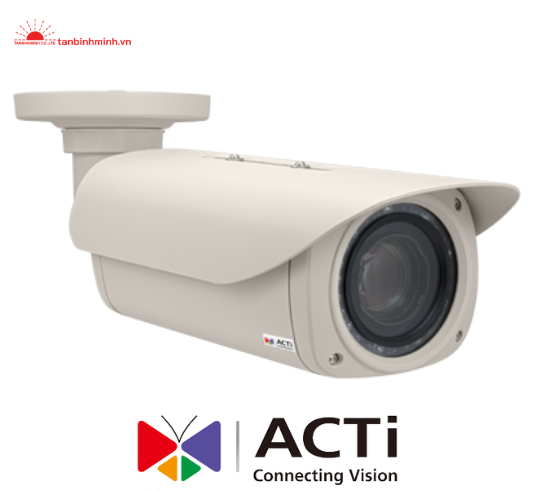

Camera IP Zoom B43

Camera IP Zoom

  • MS : B43
  • Bảo hành :
  • Kho hàng :
  • Hãng sản xuất : ACTi
  • Xuất xứ : TAIWAN
  • Seri sản phẩm :

Số lượng mua
Mua sản phẩm này
SP cùng loại
SP xem nhiều
Thông số kỹ thuật
Tổng quan
Video
Download
Phụ kiện



Product Type Zoom Bullet
Maximum Resolution 5MP
Application Environment Outdoor
Image Sensor Progressive Scan CMOS
Sensor Size 1/2.9 "
Effective Pixels 3096(H) X 2202(V) (6.82 MP)
Day / Night Yes
Low Light Sensitivity Superior
Minimum Illumination Color: 0.1 lux at F1.6 (30 IRE, 2400 K); B/W: 0 lux at F1.6 (IR LED on)
Color to B/W Switch ISP based switch, configurable
Mechanical IR Cut Filter Yes
IR Sensitivity Range 700-1100nm
IR LED Adaptive IR LED x 9 (850 nm)
IR Working Distance 30m
Electronic Shutter 1/5-1/64000 second (manual mode); 1/5-1/64000 second (auto mode)
Horizontal Resolution (TV Lines) 1750 TVL
S/N Ratio 56 dB

Lens


Focal Length Zoom, f4.5-135mm
Aperture F1.6-F4.4
Zoom Ratio 30x optical
Zoom Application Camera Installation, Auto Zoom by Event, Manual Operation
Iris DC iris
Focus Auto focus
Lens Mount Board mount
Horizontal Viewing Angle 49.1° - 2.23°
Vertical Viewing Angle 37.9° - 1.67°

PTZ


Absolute Position Yes
Pan, Tilt or Zoom protocol Visca, Pelco-D, Pelco-P, ACTi URL command

Video


Compression H.265, H.264 (Baseline/ Main/ High profile), MJPEG
Maximum Frame Rate vs. Resolution 30 fps at 2592 x 1944
30 fps at 2048 x 1536
30 fps at 1920 x 1080
30 fps at 1280 x 960
30 fps at 1280 x 720
30 fps at 800 x 600
30 fps at 640 x 480
30 fps at 320 x 240
Multi-Streaming Simultaneous triple streams based on three configurations
Bit Rate 128Kbps - 12Mbps (per stream)
Bit Rate Mode Constant, Variable
Wide Dynamic Range Extreme WDR (120 dB)
Image Enhancement White Balance, Brightness, Contrast, Saturation, Sharpness, Automatic gain control, Flickerless, Defogging
Digital Noise Reduction 2D + 3D DNR
Privacy Mask 32 configurable 3D privacy masks
Text Overlay Yes
Built-in Analytics Object Based Motion Detection, Tampering Detection, Shock Detection
Image Orientation Flip, Mirror, Rotation*

Audio


Audio Type 2-way, Built-in Microphone, Mic-in, Line-in, Line-out

Network


Network Protocol & Service IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X
Ethernet Port 1 x RJ-45 pigtail connector
Security IP address filtering, HTTPS encryption, Password protected user level, Anonymous login, IEEE 802.1X network access control

Video Analytics



Event


Event Trigger Video motion detection (10 included and excluded polygons regions) External device through digital input Sound detection
Event Response Notify control center, Go to Zoom preset point or preset tour, Change camera settings, Command other devices, E-mail notification with snapshots, Push notification to mobile device, Save video to local storage, Upload video to NVR server, Activate external device through digital output

Integration


Unified Solution Fully compatible with ACTi cameras
GPS Position Manual setting
ONVIF Compliant Yes, Profile S, Profile G, Profile T, Profile Q
GB28181 Compliant Yes
Web Browser IE 11
Auto Firmware Upgrade Yes

Interface


Local Storage MicroSDHC, MicroSDXC Memory Card Slot (card not included, up to 256GB)
Digital Input/Output 1/1

General


Power Source DC 12V, High PoE (IEEE802.3at)
Power Consumption 25.5 W (PoE)
Weight 2248g (4.956lb)
Dimensions (W x H x D): 105.11mm x 124.06mm x 368.5mm (4.14" x 4.88" x 14.51")
Environmental Casing Weatherproof (IP67), Vandal proof metal casing (IK10)
Bundled Accessories Integrated bracket
Mount Type Integrated Bracket, Wall Mount, Ceiling Bracket, Pole Mount, Gang Box
Starting Temperature -40°C ~ 60°C (-40°F ~ 140°F) within 30 minutes
Operating Temperature -40°C ~ 60°C (-40°F ~ 140°F)
Approvals CE, FCC, IP67, NEMA 4X, IK10 (metal casing), CB, UL Listed (UL 62368-1)
Warranty 3 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty
Comments * To be available through future firmware upgrade

Photo Indication

  1. Ethernet Port
  2. Audio Input / Output
  3. DC12V Power Input Jack
  4. Reset Button
  5. Digital Input/Output
  6. Memory Card Slot (inside the front cover)
  7. Dehumidifier
  8. Built-in Microphone

Dimension Diagram

Unit: mm [inch]
