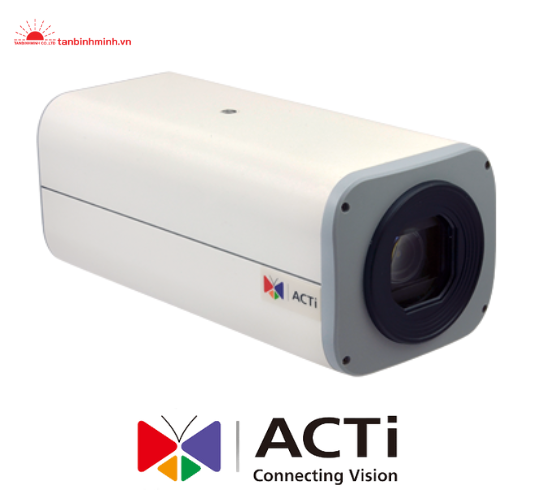

Camera IP Zoom B26

Camera IP Zoom

  • MS : B26
  • Bảo hành :
  • Kho hàng :
  • Hãng sản xuất : ACTi
  • Xuất xứ : TAIWAN
  • Seri sản phẩm :

Số lượng mua
Mua sản phẩm này
SP cùng loại
SP xem nhiều
Thông số kỹ thuật
Tổng quan
Video
Download
Phụ kiện



Product Type Zoom Box
Maximum Resolution 3MP
Application Environment Indoor/Outdoor
Image Sensor Progressive Scan CMOS
Sensor Size 1/2.8 "
Effective Pixels 2065(H) X 1553(V) (3.21 MP)
Day / Night Yes
Low Light Sensitivity Superior
Minimum Illumination Color: 0.1 lux at F1.55 (30 IRE , 2400 K); B/W: 0.01 lux at F1.55 (30 IRE, 2400 K)
Color to B/W Switch ISP based switch, configurable
Mechanical IR Cut Filter Yes
IR Sensitivity Range 700-1100nm
IR LED No
Electronic Shutter 1/5-1/64000 second (manual mode); 1/5-1/64000 second (auto mode)
Horizontal Resolution (TV Lines) 1450 TVL
S/N Ratio 56 dB

Lens


Focal Length Zoom, f4.6-165.6mm
Aperture F1.55-F5.0
Zoom Ratio 36x optical
Zoom Application Camera Installation, Auto Zoom by Event, Manual Operation
Iris DC iris
Focus Auto focus
Lens Mount Board mount
Horizontal Viewing Angle 57.6° - 2.35°
Vertical Viewing Angle 44.9° - 1.78°

PTZ


Absolute Position Yes
Pan, Tilt or Zoom protocol Visca, Pelco-D, Pelco-P, ACTi URL command

Video


Compression H.265, H.264 (Baseline/ Main/ High profile), MJPEG
Maximum Frame Rate vs. Resolution 30 fps at 2048 x 1536
60 fps at 1920 x 1080
30 fps at 1280 x 960
60 fps at 1280 x 720
30 fps at 800 x 600
30 fps at 640 x 480
30 fps at 320 x 240
Multi-Streaming Simultaneous triple streams based on three configurations
Bit Rate 128Kbps - 12Mbps (per stream)
Bit Rate Mode Constant, Variable
Wide Dynamic Range Extreme WDR (145 dB)
Image Enhancement White Balance, Brightness, Contrast, Saturation, Sharpness, Automatic gain control, Flickerless, Defogging
Digital Noise Reduction 2D + 3D DNR
Privacy Mask 32 configurable 3D privacy masks (To be available through future firmware upgrade)
Text Overlay Yes
Built-in Analytics Object Based Motion Detection, Tampering Detection, Shock Detection
Server-based Analytics Object Line Counting, People Counting, Face Detection, Object Based Motion Detection, Tamper, Object Line Crossing Detection, Object Enter Area Detection, Missing Object Detection, Unattended Object Detection, Smoke Detection, Heat Map, Dwell Time, People Queue Detection, (Require PC-based or standalone IVS or ALPR Server. Contact ACTi support for recommendations on how to maximize analytical accuracy)
Image Orientation Flip, Mirror, Rotation*

Audio


Audio Type 2-way, Line-in, Line-out
Audio Compression 8 kHz, 16 bit encoding, Mono, PCM, G.711

Network


Network Protocol & Service IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X
Ethernet Port 1 x RJ-45 connector
Security IP address filtering, HTTPS encryption, Password protected user level, Anonymous login, IEEE 802.1X network access control

Video Analytics



Event


Event Trigger Video motion detection (10 included and excluded polygons regions), External device through digital input, Sound detection
Event Response Notify control center, Go to Zoom preset point or preset tour, Change camera settings, Command other devices, E-mail notification with snapshots, Push notification to mobile device, Save video to local storage, Upload video to NVR server, Upload video or snapshot to FTP server, Activate external device through digital output

Integration


Unified Solution Fully compatible with ACTi software
GPS Position Manual setting
ONVIF Compliant Yes, Profile S, Profile G, Profile T, Profile Q
GB28181 Compliant Yes
Web Browser IE 11
Auto Firmware Upgrade Yes

Interface


Serial Port 1 x RS-485/RS-422
Local Storage MicroSDHC, MicroSDXC Memory Card Slot (card not included, up to 256GB)
Digital Input/Output 1/1

General


Power Source DC 12V, PoE Class 3 (IEEE802.3af)
Power Consumption 10.4 W (PoE), 8.65 W (DC)
Weight 811g (1.788lb)
Dimensions (W x H x D): 80.6mm x 71.4mm x 178.14mm (3.17" x 2.81" x 7.01")
Environmental Casing Optional housing (IP66-IP68)
Heater Yes
Starting Temperature -10°C ~ 50°C (14°F ~ 122°F) within 30 minutes
Operating Temperature -20°C ~ 50°C (-4°F ~ 122°F)
Operating Humidity 10% - 85% RH
Approvals CE Class B, FCC Class B, UL (for optional PoE injector and power adapter)
Warranty 3 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty
Comments * To be available through future firmware upgrade

Photo Indication

  1. Serial Port
  2. Ethernet Port
  3. Memory Card Slot
  4. DC 12V Power Input
  5. Audio Input / Output & Digital Input / Output
  6. Power LED
  7. Reset Button

Dimension Diagram

Unit: mm [inch]
