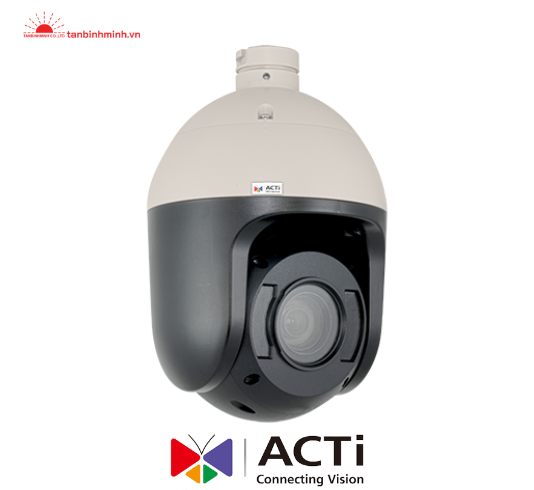

Camera IP PTZ I98

Camera IP PTZ

  • MS : I98
  • Bảo hành :
  • Kho hàng :
  • Hãng sản xuất : ACTi
  • Xuất xứ : TAIWAN
  • Seri sản phẩm :

Số lượng mua
Thông số kỹ thuật
Tổng quan
Phụ kiện


Product Type Speed Dome
Maximum Resolution 2MP
Application Environment Outdoor
Image Sensor Progressive Scan CMOS
Sensor Size 1/2.8 "
Effective Pixels 1944(H) X 1224(V) (2.38 MP)
Day / Night Yes
Low Light Sensitivity Superior
Minimum Illumination Color: 0.05 lux at F1.55, B/W: 0 lux at F1.55 (IR LED on)
Color to B/W Switch ISP based switch, configurable
Mechanical IR Cut Filter Yes
IR Sensitivity Range 700-1100nm
IR LED Adaptive IR LED x 8 (850 nm)
IR Working Distance 160m
Electronic Shutter 1/5-1/32000 second (manual mode); 1/5-1/32000 second (auto mode)
Horizontal Resolution (TV Lines) 1800 TVL
S/N Ratio 56 dB


Focal Length Zoom, f4.5-148.5mm
Aperture F1.55-F5.0
Zoom Ratio 33x optical, 16x digital
Zoom Speed 2.7 second (wide to tele)
Zoom Application Camera Installation, Auto Zoom by Event, Manual Operation
Iris DC iris
Focus Auto focus
Lens Mount Board mount
Horizontal Viewing Angle 69.3° - 3°
Vertical Viewing Angle 38° - 1.7°
Overview, Zoom and Tracking (OZT) technology Yes (Pair of intelligent speed dome camera with B511A, B59A, B74A and B76A hemispheric camera)


Scan Panning / Tilting Speed 0.16° - 32°/second, 0.16° - 16°/second
Manual Panning / Tilting Speed 0.16° - 54.4°/second, 0.16° - 27.2°/second
Preset Panning / Tilting Speed 0.16° - 300°/second, 0.16° - 150°/second
Panning Range 360° endless
Tilting Range -20°~200°
PTZ Control Remote manual control, 256 preset points, 10 preset tours, Auto scan
Preset Accuracy (Panning/Tilting) ±0.265°/±0.265°
Absolute Position Yes
Pan, Tilt or Zoom protocol Visca, Pelco-D, Pelco-P, ACTi URL command


Compression H.264 (Baseline/ Main/ High profile), MJPEG
Maximum Frame Rate vs. Resolution 60 fps at 1920 x 1080
60 fps at 1280 x 720
30 fps at 640 x 480
30 fps at 320 x 240
Multi-Streaming Simultaneous triple streams based on three configurations
Bit Rate 128Kbps - 12Mbps (per stream)
Bit Rate Mode Constant, Variable
Wide Dynamic Range Extreme WDR (145 dB)
Image Enhancement White Balance, Brightness, Contrast, Sharpness, Automatic gain control, Flickerless, Digital Image Stabilizer (DIS, EIS), Defogging
Digital Noise Reduction 2D + 3D DNR
Privacy Mask 20 configurable 3D privacy masks
Text Overlay Yes
On-Screen Graphics Yes
Built-in Analytics Basic Face Detection, Object Based Motion Detection, Tampering Detection, Shock Detection, PTZ Auto Tracking, Object Line Crossing Detection, Object Enter Area Detection, Missing Object Detection, Unattended Object Detection, Object Loitering Detection
Server-based Analytics Object Line Counting, People Counting, Face Detection, Object Based Motion Detection, Tamper, Object Line Crossing Detection, Object Enter Area Detection, Missing Object Detection, Unattended Object Detection, Smoke Detection, Heat Map, Dwell Time, Direction Detection, Automatic License Plate Recognition, People Queue Detection, (Require PC-based or standalone IVS or ALPR Server. Contact ACTi support for recommendations on how to maximize analytical accuracy)
Image Orientation Flip, Mirror
IVS performance Certain algorithms may require more computing power, which may limit the number of algorithms that can be concurrently used in the camera. Please test the actual performance before using in a project.


Audio Type 2-way, Line-in, Line-out
Audio Compression 8 kHz, 16 bit encoding, Mono, PCM, G.711


Network Protocol & Service IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X
Ethernet Port 1 x RJ-45 pigtail connector
Security IP address filtering, HTTPS encryption, Password protected user level, Anonymous login, IEEE 802.1X network access control

Video Analytics

Analysis Source Type Video
Metadata Accuracy Standard


Event Trigger Video motion detection (10 included and excluded polygons regions), External device through digital input, Sound detection, Intelligent event detection,
Event Response Notify control center, Go to PTZ preset point or preset tour, Change camera settings, Command other devices, E-mail notification with snapshots, Play the audio file, Push notification to mobile device, Save video to local storage, Upload video to NVR server, Upload video or snapshot to FTP server, Activate external device through digital output


Unified Solution Fully compatible with ACTi software
Software Development Kit Yes
GPS Position Manual setting
ONVIF Compliant Yes, Profile S, Profile G, Profile T, Profile Q
GB28181 Compliant Yes
Web Browser IE 11
Auto Firmware Upgrade Yes


Audio Interface Cable with 3.5mm Phone Jack
Local Storage MicroSDHC, MicroSDXC Memory Card Slot (card not included, up to 256GB)
Digital Input/Output 4/2


Power Source AC 24V, High PoE
Power Consumption 50 W (PoE, heater, fan and IR on), 62 W (AC, heater, fan and IR on)
Weight 3112g (6.86lb)
Dimensions (Ø x H): 170mm x 260mm (6.69" x 10.23")
Environmental Casing Weatherproof (IP66), Vandal proof metal casing (IK10), Built-in dehumidifier, Scratch-resistant and water-repellent lens glass
Bundled Accessories High PoE injector (for USA) or Power Adapter (for other countries)
Mount Type Gang Box, Pendant, Converter for NPT Standard Mounts, Wall Mount, Pole Mount, Corner Mount
Fan Yes
Heater Yes
Dehumidifier Yes
Starting Temperature -40°C ~ 55°C (-40°F ~ 131°F) within 30 minutes
Operating Temperature -40°C ~ 55°C (-40°F ~ 131°F)
Operating Humidity 10% - 85% RH
Approvals CE, FCC, BIS, IP66, NEMA 4X, IK10 (metal casing), UL Listed (UL 60950-1)
Warranty 3 Year(s) (1 year in continuous motion). For extended warranty offering, see

Photo Indication

  1. Power LED
  2. Reset Button
  3. Memory Card Slot
  4. Audio Output
  5. Audio Input
  6. Digital Input/Output
  7. AC 24V Power Input
  8. Ethernet Port

Dimension Diagram

Unit: mm [inch]
