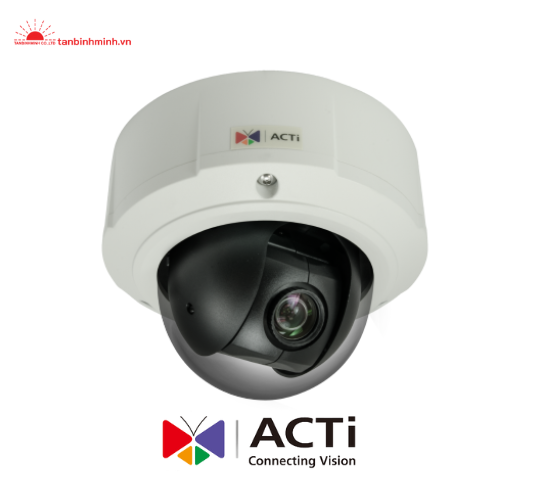

Camera IP PTZ B96A

Camera IP PTZ

  • MS : B96A
  • Bảo hành :
  • Kho hàng :
  • Hãng sản xuất : ACTi
  • Xuất xứ : TAIWAN
  • Seri sản phẩm :

Số lượng mua
Thông số kỹ thuật
Tổng quan
Video
Download
Phụ kiện



Product Type Mini PTZ
Maximum Resolution 5MP
Application Environment Outdoor
Image Sensor Progressive Scan CMOS
Sensor Size 1/3.2 "
Effective Pixels 2592(H) X 1944(V) (5.04 MP)
Day / Night Yes
Low Light Sensitivity Standard
Minimum Illumination Color: 0.1 lux at F1.8 (30 IRE , 2400 K); B/W: 0.05 lux at F1.8 (30 IRE, 2400 K)
Color to B/W Switch ISP based switch, configurable
Mechanical IR Cut Filter Yes
IR Sensitivity Range 700-1100nm
IR LED No
Electronic Shutter 1/5-1/2000 second (manual mode); 1/5-1/10000 second (auto mode)
Horizontal Resolution (TV Lines) 1450 TVL
S/N Ratio 52 dB

Lens


Focal Length Zoom, f4.9-49mm
Aperture F1.6-F3.0
Zoom Ratio 10x optical
Zoom Speed 2 second (wide to tele)
Zoom Application Camera Installation, Auto Zoom by Event, Manual Operation
Iris DC iris
Focus Auto focus
Lens Mount Board mount
Horizontal Viewing Angle 49.7° - 5.8°
Vertical Viewing Angle 37° - 4.2°

PTZ


Manual Panning / Tilting Speed 0.1° - 190°/second, 0.1° - 150°/second
Preset Panning / Tilting Speed 0.1° - 190°/second, 0.1° - 150°/second
Panning Range -175°~175°
Tilting Range 0°~180° (with E-flip)
PTZ Control Remote manual control, 10 preset tours, Auto scan
Preset Accuracy (Panning/Tilting) 1.5°/1.5°
Absolute Position Yes
Pan, Tilt or Zoom protocol Visca, Pelco-D, Pelco-P, ACTi URL command

Video


Compression H.264 (Baseline/ Main/ High profile), MJPEG
Maximum Frame Rate vs. Resolution 15 fps at 2592 x 1944
15 fps at 2048 x 1536
30 fps at 1920 x 1080
30 fps at 1280 x 720
30 fps at 800 x 600
30 fps at 640 x 480
15 fps at 320 x 240
Multi-Streaming Simultaneous dual streams based on two configurations
Bit Rate 28Kbps - 6Mbps (per stream)
Bit Rate Mode Constant, Variable
Wide Dynamic Range Basic WDR (74 dB)
Image Enhancement White Balance, Brightness, Contrast, Sharpness, Automatic gain control, Flickerless
Digital Noise Reduction 2D + 3D DNR
Privacy Mask 4 configurable regions for each of 17 preset points
Text Overlay Yes
On-Screen Graphics Yes
Server-based Analytics Object Line Counting, People Counting, Face Detection, Object Based Motion Detection, Tamper, Object Line Crossing Detection, Object Enter Area Detection, Missing Object Detection, Unattended Object Detection, Smoke Detection, Heat Map, Dwell Time, Direction Detection, Automatic License Plate Recognition, People Queue Detection, (Require PC-based or standalone IVS or ALPR Server. Contact ACTi support for recommendations on how to maximize analytical accuracy)
Image Orientation Flip, Mirror

Audio


Audio Type 2-way, Line-in, Line-out
Audio Compression 8 kHz, 16 bit encoding, Mono, PCM, G.711

Network


Network Protocol & Service IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X
Ethernet Port 1 x RJ-45 connector
Security IP address filtering, HTTPS encryption, Password protected user level, Anonymous login, IEEE 802.1X network access control

Event


Event Trigger Video motion detection (3 regions), External device through digital input, Sound detection,
Event Response Notify control center, Go to PTZ preset point or preset tour, Change camera settings, Command other devices, E-mail notification with snapshots, Play the audio file, Push notification to mobile device, Save video to local storage, Upload video or snapshot to FTP server, Upload video to NVR server, Activate external device through digital output

Integration


Unified Solution Fully compatible with ACTi software
Software Development Kit Yes
GPS Position Manual setting
ONVIF Compliant Yes, Profile S, Profile G, Profile T* (To be available through future firmware upgrade), Profile Q
GB28181 Compliant Yes
Web Browser IE 11
Auto Firmware Upgrade Yes

Interface


Audio Interface Terminal block
Local Storage MicroSDHC, MicroSDXC Memory Card Slot (card not included, up to 256GB)
Digital Input/Output 1/1

General


Power Source DC 12V, PoE Class 3 (IEEE802.3af)
Power Consumption 11.6 W (PoE, heater and fan on)
Weight 1306g (2.879lb)
Dimensions (Ø x H): 153mm x 116mm (6" x 4.6")
Environmental Casing Weatherproof (IP67), Vandal proof (IK10)
Mount Type Surface, Gang Box, Flush, Pendant, Converter for NPT Standard Mounts, Wall Mount, Pole Mount, Corner Mount
Fan Yes
Heater Yes
Starting Temperature -30°C ~ 50°C (-22°F ~ 122°F) within 30 minutes
Operating Temperature -40°C ~ 50°C (-40°F ~ 122°F)
Operating Humidity 10% - 85% RH
Approvals CE, FCC, IP67, IK10, NEMA 4X, UL Listed (UL 60950-1)
Warranty 3 Year(s) (3 months in continuous motion). For extended warranty offering, see http://www.acti.com/support/warranty

Photo Indication

  1. Ethernet Port
  2. DC 12V Power Input
  3. Digital Input / Output and Audio-In / Audio-Out
  4. Reset Button
  5. Memory Card Slot

Dimension Diagram

Unit: mm [inch]
