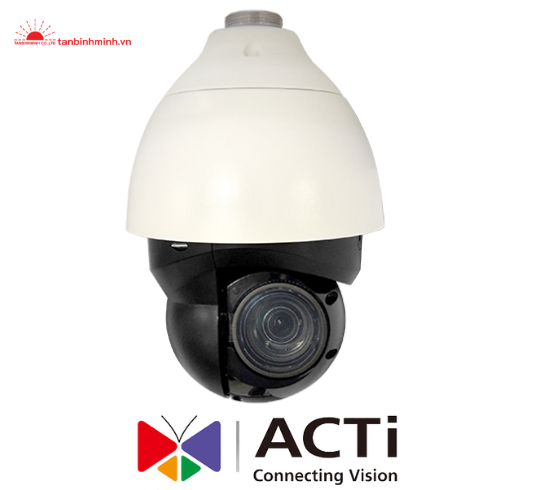

Camera IP PTZ A950

Camera IP PTZ

  • MS : A950
  • Bảo hành :
  • Kho hàng :
  • Hãng sản xuất : ACTi
  • Xuất xứ : TAIWAN
  • Seri sản phẩm :

Số lượng mua
Mua sản phẩm này
SP cùng loại
SP xem nhiều
Thông số kỹ thuật
Tổng quan
Video
Download
Phụ kiện



Product Type Speed Dome
Maximum Resolution 8MP
Application Environment Outdoor
Image Sensor Progressive Scan CMOS
Sensor Size 1/1.8 "
Effective Pixels 3864(H) X 2180(V) (8.42 MP)
Day / Night Yes
Low Light Sensitivity Extreme
Mechanical IR Cut Filter Yes
IR LED Adaptive IR LED
IR Working Distance 100m

Lens


Focal Length Zoom, f6.4-138.5mm
Aperture F1.5
Zoom Ratio 22x optical
Iris DC iris
Focus Auto focus
Lens Mount Board mount
Horizontal Viewing Angle 59.8° - 3°

PTZ


Manual Panning / Tilting Speed 0.1° - 90°/second, 0.1° - 60°/second
Preset Panning / Tilting Speed 5° - 280°/second, 5° - 280°/second
Panning Range 360° endless
Tilting Range -20°~200°
PTZ Control PTZ Control, Speed Control, Auto scan, 256 preset points
Preset Accuracy (Panning/Tilting) 5°/280°, 5°/280°

Video


Compression H.265, H.264, MJPEG
Maximum Frame Rate vs. Resolution 30 fps at 3840 x 2160 (4K Ultra HD)
30 fps at 3200 x 1800
30 fps at 1920 x 1080
30 fps at 1280 x 1024
30 fps at 1280 x 720
30 fps at 800 x 600
30 fps at 720 x 480
30 fps at 640 x 480
30 fps at 352 x 240
30 fps at 320 x 240
Multi-Streaming Quad streams
Wide Dynamic Range Extreme WDR
Image Enhancement Gyro-based Image Stabilizer
Digital Noise Reduction 2D + 3D DNR
Privacy Mask Yes
Text Overlay Yes
Built-in Analytics Object Based Motion Detection
Image Orientation Flip, Mirror

Audio


Audio Type 2-way, Line-in, Line-out
Audio Compression G.711, G.726, AAC, PCM

Network


Ethernet Port 1 x Ethernet (10/100 Base-T), RJ-45 connector
Network Cable: all 4 pairs of standard Cat 5e or higher Ethernet cable

Integration


ONVIF Compliant Yes, Profile S, Profile G

Interface


Analog Video Output 1 x CVBS, BNC connector, for installation only
Local Storage MicroSD, MicroSDHC, MicroSDXC Memory Card Slot (card not included, microSD to SD Memory Card Adapter is required.)
Digital Input/Output 4/2

General


Power Source DC 12V, AC 24V 3A, High PoE 60W
Power Consumption High PoE: Max. 46.20W (by using all 4 pairs of standard Cat 5e or higher Ethernet cable), AC: Max. 52.80W, 71.50VA
Weight 4155g (9.16lb)
Dimensions (Ø x H): 207.4mm x 300.4mm (8.17" x 11.83")
Environmental Casing Weatherproof (IP66)
Bundled Accessories Power Adapter (DC 12V)
Mount Type Wall Mount, Ceiling Bracket, Pendant, Corner Mount, Pole Mount, Converter for NPT Standard Mounts
Heater Yes
Operating Temperature -40°C ~ 50°C (-40°F ~ 122°F)
Approvals CE, FCC, IP66
Warranty 3 Year(s) (1 year in continuous motion). For extended warranty offering, see http://www.acti.com/support/warranty

Photo Indication

  1. Memory Card Slot
  2. DC12V Power Input Jack
  3. Analog Video Output Connector
  4. Audio Input/Output, Digital Input/ Output, Serial Port Connector
  5. Ethernet Port
  6. AC24V Power Input
  7. Reset Button

Dimension Diagram

Unit: mm [inch]
