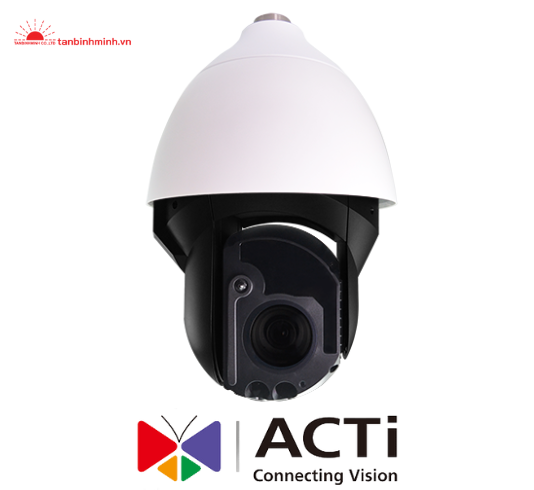

Camera IP PTZ A951

Camera IP PTZ

  • MS : A951
  • Bảo hành :
  • Kho hàng :
  • Hãng sản xuất : ACTi
  • Xuất xứ : TAIWAN
  • Seri sản phẩm :

Số lượng mua
Mua sản phẩm này
SP cùng loại
SP xem nhiều
Thông số kỹ thuật
Tổng quan
Video
Download
Phụ kiện



Product Type Speed Dome
Maximum Resolution 8MP
Application Environment Outdoor
Image Sensor Progressive Scan CMOS
Sensor Size 1/1.8 "
Effective Pixels 3864(H) X 2180(V) (8.42 MP)
Day / Night Yes
Low Light Sensitivity Extreme
Minimum Illumination Color: 0.04 lux; B/W: 0.002 lux
Mechanical IR Cut Filter Yes
IR LED Adaptive IR LED
IR Working Distance 100m
Electronic Shutter 1-1/10000 second (auto mode)

Lens


Focal Length Zoom, f6.5-202mm
Aperture F1.55
Zoom Ratio 31x optical
Iris P-Iris
Focus Auto focus on fast-moving objects with built-in LiDAR module
Focus Distance LiDAR: 100m (25x)
ISP: 150m (31x)
Lens Mount Board mount
Horizontal Viewing Angle 63.4° - 2.3°
Vertical Viewing Angle 37.8° - 1.4°

PTZ


Manual Panning / Tilting Speed 0.1° - 90°/second, 0.1° - 55°/second
Preset Panning / Tilting Speed 300°/second, 300°/second
Panning Range 360° endless
Tilting Range -10°~100°
PTZ Control PTZ Control, Speed Control, Auto scan, 256 preset points

Video


Compression H.265, H.264, MJPEG
Maximum Frame Rate vs. Resolution 30 fps at 3840 x 2160 (4K Ultra HD)
30 fps at 1280 x 720
Multi-Streaming Quad streams based on video configurations
Wide Dynamic Range Extreme WDR
Image Enhancement White Balance, Brightness, Contrast, Sharpness, Gyro-based Image Stabilizer
Digital Noise Reduction 2D + 3D DNR
Privacy Mask Yes
Text Overlay Yes
Built-in Analytics Object Based Motion Detection, Tampering Detection, Face Detection, Face Tracking, Face Recognition, People Counting, People Detection, Car Detection

Audio


Audio Type 2-way, Line-in, Line-out
Audio Compression G.711, G.726, AAC, PCM

Network


Network Protocol & Service IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, SMTP, FTP, IGMP, ICMP, ARP, UPnP, QoS, SNMP, IEEE 802.1X
Ethernet Port 1 x Ethernet (1000 Base-T), RJ-45 connector
Security IP address filtering, HTTPS encryption, Password protected user level, IEEE 802.1X network access control

Event


Event Trigger Video motion detection, External device through digital input, Sound detection
Event Response Send E-mail Notification, Save video to local storage, Upload snapshot to FTP server, Activate external device through digital output

Integration


ONVIF Compliant Yes, Profile S, Profile G, Profile T

Interface


Audio Interface 1/1, Terminal block
Local Storage MicroSD, MicroSDHC, MicroSDXC memory card slot (card not included)
Digital Input/Output 4/2 (Terminal block)

General


Power Source AC 24V, High PoE 60W
Power Consumption 55 W (AC), 51 W (PoE)
Weight 8900g (19.62lb)
Dimensions (Ø x H): 284mm x 431mm (11.18" x 16.97")
Environmental Casing Weatherproof (IP66), Integrated wiper
Bundled Accessories High PoE injector (for USA) or Power Adapter (for other countries)
Heater Yes
Operating Temperature -40°C ~60°C (-40°F ~ 140°F) heater on, -10°C ~60°C (14°F ~ 140°F) Wiper on
Operating Humidity 10% - 90% RH
Approvals CE Class A, FCC Class A, IP66
Material Metal
Plastic
Warranty 3 Year(s) (1 year in continuous motion). For extended warranty offering, see http://www.acti.com/support/warranty

Dimension Diagram

Unit: mm [inch]
