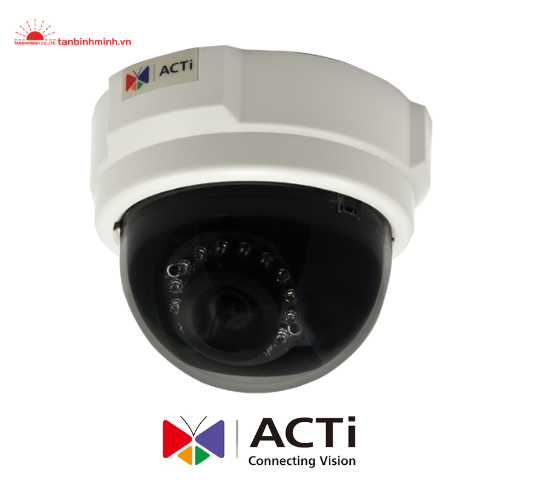

Camera IP ACTi TCM-3511

Camera IP Dome

  • MS : TCM-3511
  • Bảo hành :
  • Kho hàng :
  • Hãng sản xuất : ACTi
  • Xuất xứ : TAIWAN
  • Seri sản phẩm :

Số lượng mua
Mua sản phẩm này
SP cùng loại
SP xem nhiều
Thông số kỹ thuật
Tổng quan
Video
Download
Phụ kiện



Product Type Dome
Maximum Resolution 1.3MP
Application Environment Indoor
Image Sensor Progressive Scan CMOS
Sensor Size 1/3 "
Day / Night Yes
Low Light Sensitivity Standard
Minimum Illumination Color: 0.5 lux at F1.0 (30 IRE, 2400 K); B/W: 0 lux at F1.0 (IR LED on)
Color to B/W Switch CDS sensor based switch, configurable
Mechanical IR Cut Filter Yes
IR Sensitivity Range 700-1100nm
IR LED IR LED x 24 (850 nm)
IR Working Distance 30m (0 lux, 30IRE, Max Exposure Gain)
Electronic Shutter 1/30-1/1000 second (manual mode); 1/5-1/15000 second (auto mode)
S/N Ratio 44 dB

Lens


Focal Length Vari-focal, f3.3-12mm
Aperture F1.6
Iris Fixed iris
Focus Manual focus
Lens Mount Board mount
Horizontal Viewing Angle 78.1° - 23.1°
Viewing Angle Adjustment Pan: 0°-330°, Tilt: 30°-90°

Video


Compression H.264 (Baseline/ Main/ High profile), MPEG-4 SP, MJPEG
Maximum Frame Rate vs. Resolution 18 fps at 1280 x 1024
26 fps at 1280 x 720
30 fps at 640 x 480
Multi-Streaming Simultaneous dual streams based on two configurations
Bit Rate 28Kbps - 6Mbps (per stream)
Bit Rate Mode Constant, Variable
Wide Dynamic Range Basic WDR
Image Enhancement White Balance, Brightness, Saturation, Contrast, Sharpness, Automatic exposure, Flickerless
Digital Noise Reduction No
Privacy Mask 4 configurable regions
Text Overlay Yes
Server-based Analytics Object Line Counting, People Counting, Face Detection, Object Based Motion Detection, Tamper, Object Line Crossing Detection, Object Enter Area Detection, Missing Object Detection, Unattended Object Detection, Smoke Detection, Heat Map, Dwell Time, People Queue Detection, (Require PC-based or standalone IVS or ALPR Server. Contact ACTi support for recommendations on how to maximize analytical accuracy)
Image Orientation Flip, Mirror

Audio


Audio Type 2-way, Line-in, Line-out
Audio Compression 8 kHz, 16 bit encoding, Mono, PCM

Network


Network Protocol & Service IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, SMTP, FTP, IGMP, ICMP, ARP, UPnP, ToS, SNMP, IEEE 802.1X
Ethernet Port 1, Ethernet (10/100 Base-T), RJ-45 connector
Security IP address filtering, HTTPS encryption, Password protected user level, IEEE 802.1X network access control

Event


Event Trigger Video motion detection (3 regions), External device through digital input,
Event Response Notify control center, Change camera settings, Command other devices, E-mail notification with snapshots, Upload video or snapshot to FTP server, Activate external device through digital output

Integration


Unified Solution Fully compatible with ACTi software
Software Development Kit Yes
ONVIF Compliant Yes
Web Browser IE 8.0 or newer

Interface


Audio Interface Terminal block
Local Storage No
Digital Input/Output 1/1

General


Power Source DC 12V, PoE Class 3 (IEEE802.3af)
Power Consumption 6.72 W (DC), 9.12 W (PoE)
Weight 380g (0.84lb)
Dimensions (Ø x H): 130mm x 99mm (5.12" x 3.90")
Environmental Casing No
Mount Type Surface, Gang Box, Flush, Pendant, Converter for NPT Standard Mounts, Wall Mount, Pole Mount, Corner Mount
Starting Temperature -10°C ~ 50°C (14°F ~ 122°F)
Operating Temperature -10°C ~ 50°C (14°F ~ 122°F)
Operating Humidity 10% - 85% RH
Approvals CE, FCC, UL (for optional PoE injector and power adapter)
Warranty 3 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty
