CHI TIẾT SẢN PHẨM

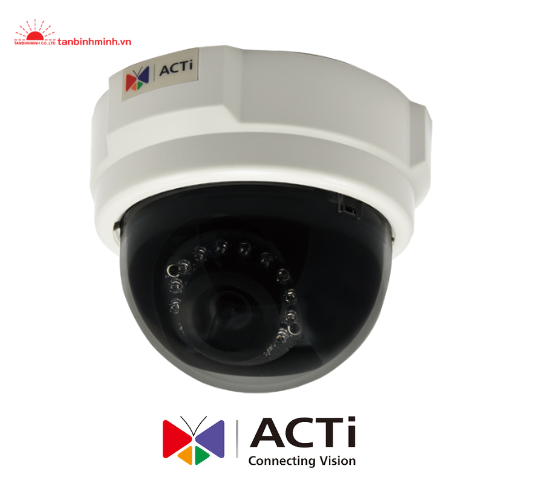

Camera IP ACTi KCM-7111

Camera IP Dome

  • MS : KCM-7111
  • Bảo hành :
  • Kho hàng :
  • Hãng sản xuất : ACTi
  • Xuất xứ : TAIWAN
  • Seri sản phẩm :

Số lượng mua
Thông số kỹ thuật
Tổng quan
Video
Download
Phụ kiện



Product Type Dome
Maximum Resolution 4MP
Application Environment Outdoor
Image Sensor Progressive Scan CMOS
Sensor Size 1/3.2 "
Effective Pixels 2592(H) X 1944(V) (5.04 MP)
Day / Night Yes
Low Light Sensitivity Standard
Minimum Illumination Color: 0.1 lux at F2.0 (30 IRE , 2400 K); B/W: 0.05 lux at F2.0 (30 IRE, 2400 K)
Color to B/W Switch ISP based switch, configurable
Mechanical IR Cut Filter Yes
IR LED No
Horizontal Resolution (TV Lines) 1561 TVL

Lens


Focal Length Fixed focal, f2.8mm
Aperture F2.0
Iris Fixed iris
Focus Manual focus
Lens Mount CS Mount
Horizontal Viewing Angle 82.6°
Viewing Angle Adjustment Pan: 0°-350°, Tilt: 0°-180°, Rotation: 0°-350°

Video


Compression H.264 (Baseline), MPEG-4 SP, MJPEG
Maximum Frame Rate vs. Resolution 8 fps at 2032 x 1920
15 fps at 1920 x 1080
30 fps at 1280 x 720
30 fps at 640 x 480
Multi-Streaming Simultaneous dual streams based on two configurations
Bit Rate 28Kbps - 6Mbps (per stream)
Bit Rate Mode Constant, Variable
Wide Dynamic Range Basic WDR
Image Enhancement White Balance, Brightness, Contrast, Automatic gain control, Flickerless
Digital Noise Reduction DNR
Privacy Mask 4 configurable regions
Text Overlay Yes
Server-based Analytics Object Line Counting, People Counting, Face Detection, Object Based Motion Detection, Tamper, Object Line Crossing Detection, Object Enter Area Detection, Missing Object Detection, Unattended Object Detection, Smoke Detection, Heat Map, Dwell Time, Direction Detection, Automatic License Plate Recognition, People Queue Detection, (Require PC-based or standalone IVS or ALPR Server. Contact ACTi support for recommendations on how to maximize analytical accuracy)
Image Orientation Flip, Mirror

Audio


Audio Type 2-way, Line-in, Line-out
Audio Compression 8 kHz, 16 bit encoding, Mono, PCM, G.711

Network


Network Protocol & Service IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, ToS, SNMP, IEEE 802.1X
Ethernet Port 1 x RJ-45 connector
Security IP address filtering, HTTPS encryption, Password protected user level, IEEE 802.1X network access control

Event


Event Trigger Video motion detection (3 regions), External device through digital input,
Event Response Notify control center, Change camera settings, Command other devices, E-mail notification with snapshots, Save video or snapshot to local storage, Upload video or snapshot to FTP server, Activate external device through digital output

Integration


Unified Solution Fully compatible with ACTi software
Software Development Kit Yes
ONVIF Compliant Yes, Profile S
Web Browser IE 8.0 or newer

Interface


Audio Interface Terminal block
Local Storage MicroSDHC memory card slot (card not included)
Digital Input/Output 2/2

General


Power Source DC 12V, PoE Class 3 (IEEE802.3af)
Power Consumption 10.08 W (PoE)
Weight 1070g (2.359lb)
Dimensions (Ø x H): 151.69mm x 114.9mm (5.97" x 4.52")
Environmental Casing Weatherproof (IP67), Vandal proof
Mount Type Surface, Gang Box, Flush, Pendant, Converter for NPT Standard Mounts, Wall Mount, Pole Mount, Corner Mount
Starting Temperature -30°C ~ 50°C (-22°F ~ 122°F)
Operating Temperature -30°C ~ 50°C (-22°F ~ 122°F)
Operating Humidity 10% - 85% RH
Approvals CE, FCC, IP67, UL (for optional PoE injector and power adapter)
Warranty 3 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty

Photo Indication

  1. Power Button
  2. Ethernet Port
  3. MicroSDHC Card Slot
  4. Reset Button
  5. Digital Input/Output
  6. DC 12V Power Input
  7. Audio Input / Output

Dimension Diagram

Unit: mm [inch]
