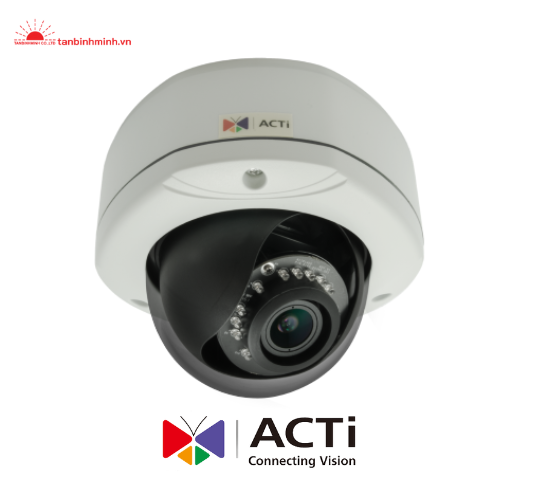

Camera IP ACTi E84

Camera IP Dome

  • MS : E84
  • Bảo hành :
  • Kho hàng :
  • Hãng sản xuất : ACTi
  • Xuất xứ : TAIWAN
  • Seri sản phẩm :

Số lượng mua
Mua sản phẩm này
SP cùng loại
SP xem nhiều
Thông số kỹ thuật
Tổng quan
Video
Download
Phụ kiện



Product Type Dome
Maximum Resolution 2MP
Application Environment Outdoor
Image Sensor Progressive Scan CMOS
Sensor Size 1/2.8 "
Effective Pixels 1984(H) X 1225(V) (2.43 MP)
Day / Night Yes
Low Light Sensitivity Superior
Minimum Illumination Color: 0.1 lux at F1.4 (30 IRE, 2400 K); B/W: 0 lux at F1.4 (IR LED on)
Color to B/W Switch ISP based switch, configurable
Mechanical IR Cut Filter Yes
IR Sensitivity Range 700-1100nm
IR LED Adaptive IR LED x 15 (850 nm)
IR Working Distance 30m (0 lux, 30IRE, Gain 255, Auto shutter mode)
Electronic Shutter 1/5-1/2000 second (manual mode); 1/5-1/10000 second (auto mode)
Horizontal Resolution (TV Lines) 1100 TVL
S/N Ratio 52 dB

Lens


Focal Length Vari-focal, f2.8-12mm
Aperture F1.4
Iris Fixed iris
Focus Manual focus
Lens Mount Board mount
Horizontal Viewing Angle 92.5° - 35.9°
Vertical Viewing Angle 50.0° - 18.6°
Viewing Angle Adjustment Pan: 0°-350°, Tilt: 17°-163°, Rotation: 0°-350°

Video


Compression H.264 (Baseline/ Main/ High profile), MJPEG
Maximum Frame Rate vs. Resolution 30 fps at 1920 x 1080
30 fps at 1280 x 720
30 fps at 800 x 600
30 fps at 640 x 480
15 fps at 320 x 240
Multi-Streaming Simultaneous dual streams based on two configurations
Bit Rate 28Kbps - 6Mbps (per stream)
Bit Rate Mode Constant, Variable
Wide Dynamic Range Basic WDR (75 dB)
Image Enhancement White Balance, Brightness, Contrast, Sharpness, Automatic gain control, Flickerless
Digital Noise Reduction DNR
Privacy Mask 4 configurable regions
Text Overlay Yes
On-Screen Graphics Yes
Server-based Analytics Object Line Counting, People Counting, Face Detection, Object Based Motion Detection, Tamper, Object Line Crossing Detection, Object Enter Area Detection, Missing Object Detection, Unattended Object Detection, Smoke Detection, Heat Map, Dwell Time, Direction Detection, Automatic License Plate Recognition, People Queue Detection, (Require PC-based or standalone IVS or ALPR Server. Contact ACTi support for recommendations on how to maximize analytical accuracy)
Image Orientation Flip, Mirror

Network


Network Protocol & Service IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X
Ethernet Port 1 x RJ-45 connector
Security IP address filtering, HTTPS encryption, Password protected user level, Anonymous login, IEEE 802.1X network access control

Event


Event Trigger Video motion detection (3 regions),
Event Response Notify control center, Change camera settings, Command other devices, E-mail notification with snapshots, Push notification to mobile device, Save video to local storage, Upload video or snapshot to FTP server, Upload video to NVR server

Integration


Unified Solution Fully compatible with ACTi software
Software Development Kit Yes
GPS Position Manual setting
ONVIF Compliant Yes, Profile S, Profile G, Profile T* (To be available through future firmware upgrade), Profile Q
GB28181 Compliant Yes
Web Browser IE 11 or newer, Firefox with VLC, Chrome with VLC, Safari with QuickTime
Auto Firmware Upgrade Yes

Interface


Local Storage MicroSDHC, MicroSDXC Memory Card Slot (card not included, up to 256GB)

General


Power Source PoE Class 2 (IEEE802.3af)
Power Consumption 4.95 W (PoE, IR on)
Weight 1009g (2.224lb)
Dimensions (Ø x H): 150.76mm x 116.9mm (6" x 4.6")
Environmental Casing Weatherproof (IP67), Vandal proof (IK10)
Mount Type Surface, Gang Box, Flush, Pendant, Converter for NPT Standard Mounts, Wall Mount, Pole Mount, Corner Mount
Starting Temperature -20°C ~ 50°C (-4°F ~ 122°F)
Operating Temperature -40°C ~ 50°C (-40°F ~ 122°F)
Operating Humidity 10% - 85% RH
Approvals CE, FCC, IP67, NEMA 4X, IK10, UL (for optional PoE injector)
Warranty 3 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty
