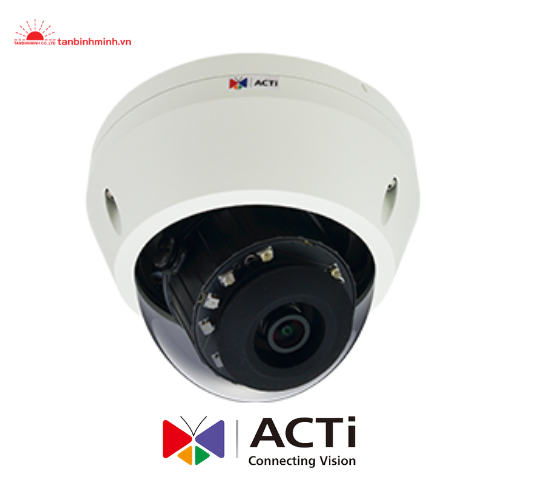

Camera IP ACTi E78

Camera IP Dome

  • MS : E78
  • Bảo hành :
  • Kho hàng :
  • Hãng sản xuất : ACTi
  • Xuất xứ : TAIWAN
  • Seri sản phẩm :

Số lượng mua
Mua sản phẩm này
SP cùng loại
SP xem nhiều
Thông số kỹ thuật
Tổng quan
Video
Download
Phụ kiện



Product Type Dome
Maximum Resolution 2MP
Application Environment Outdoor
Image Sensor Progressive Scan CMOS
Sensor Size 1/2.8 "
Effective Pixels 1944(H) X 1224(V) (2.38 MP)
Day / Night Yes
Low Light Sensitivity Superior
Minimum Illumination Color: 0.1 lux at F1.85 (30 IRE, 2400 K); B/W: 0 lux at F1.85 (IR LED on)
Color to B/W Switch ISP based switch, configurable
Mechanical IR Cut Filter Yes
IR Sensitivity Range 700-1100nm
IR LED Adaptive IR LED x 10 (850 nm)
IR Working Distance 30m (0 lux, 30IRE, Gain 255, Auto shutter mode)
Electronic Shutter 1/5-1/32000 second (manual mode); 1/5-1/32000 second (auto mode)
Horizontal Resolution (TV Lines) 1100 TVL
S/N Ratio 56 dB

Lens


Focal Length Fixed focal, f3.6mm
Aperture F1.85
Iris Fixed iris
Focus Fixed focus
Lens Mount Board mount
Horizontal Viewing Angle 84.5°
Vertical Viewing Angle 47.3°
Viewing Angle Adjustment Pan: 0°-350°, Tilt: 5°-175°, Rotation: 0°-350°

Video


Compression H.264 (Baseline/ Main/ High profile), MJPEG
Maximum Frame Rate vs. Resolution 60 fps at 1920 x 1080
60 fps at 1280 x 720
30 fps at 640 x 480
30 fps at 320 x 240
Multi-Streaming Simultaneous triple streams based on three configurations
Bit Rate 128Kbps - 12Mbps (per stream)
Bit Rate Mode Constant, Variable
Wide Dynamic Range Extreme WDR (145 dB)
Image Enhancement White Balance, Brightness, Contrast, Sharpness, Automatic gain control, Flickerless, Digital Image Stabilizer (DIS, EIS), Defogging
Digital Noise Reduction 2D + 3D DNR
Privacy Mask 4 configurable regions
Text Overlay Yes
On-Screen Graphics Yes
Built-in Analytics Basic Face Detection, Object Based Motion Detection, Tampering Detection, Object Line Crossing Detection, Object Enter Area Detection, Missing Object Detection, Unattended Object Detection, Object Loitering Detection
Server-based Analytics Object Line Counting, People Counting, Face Detection, Object Based Motion Detection, Tamper, Object Line Crossing Detection, Object Enter Area Detection, Missing Object Detection, Unattended Object Detection, Smoke Detection, Heat Map, Dwell Time, Direction Detection, Automatic License Plate Recognition, People Queue Detection, (Require PC-based or standalone IVS or ALPR Server. Contact ACTi support for recommendations on how to maximize analytical accuracy)
Image Orientation Flip, Mirror, Rotation
IVS performance Certain algorithms may require more computing power, which may limit the number of algorithms that can be concurrently used in the camera. Please test the actual performance before using in a project.

Audio


Audio Type 2-way, Mic-in, Line-in, Line-out
Audio Compression 8 kHz, 16 bit encoding, Mono, PCM, G.711

Network


Network Protocol & Service IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X
Ethernet Port 1 x RJ-45 pigtail connector
Security IP address filtering, HTTPS encryption, Password protected user level, Anonymous login, IEEE 802.1X network access control

Video Analytics


Analysis Source Type Video
Metadata Accuracy Standard

Event


Event Trigger Video motion detection (10 included and excluded polygons regions), External device through digital input, Sound detection, Intelligent event detection,
Event Response Notify control center, Change camera settings, Command other devices, E-mail notification with snapshots, Push notification to mobile device, Save video to local storage, Upload video to NVR server, Upload video or snapshot to FTP server, Activate external device through digital output

Integration


Unified Solution Fully compatible with ACTi software
Software Development Kit Yes
GPS Position Manual setting
ONVIF Compliant Yes, Profile S, Profile G, Profile T, Profile Q
GB28181 Compliant Yes
Web Browser IE 11
Auto Firmware Upgrade Yes

Interface


Audio Interface Terminal block
Local Storage MicroSDHC, MicroSDXC Memory Card Slot (card not included, up to 256GB)
Digital Input/Output 1/1

General


Power Source DC 12V, PoE Class 2 (IEEE802.3af)
Power Consumption 5.04 W (PoE)
Weight 551g (1.21lb)
Dimensions (Ø x H): 115mm x 87mm (5.53" x 3.43")
Environmental Casing Weatherproof (IP68), Vandal proof (IK10)
Mount Type Surface, Gang Box, Flush, Pendant, Converter for NPT Standard Mounts, Wall Mount, Pole Mount, Corner Mount
Starting Temperature -40°C ~ 50°C (-40°F ~ 122°F)
Operating Temperature -40°C ~ 50°C (-40°F ~ 122°F)
Operating Humidity 10% - 85% RH
Approvals CE, FCC, IP68, IK10, NEMA 4X, UL (for optional PoE injector and power adapter)
Warranty 3 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty

Photo Indication

  1. Mic Input
  2. Audio Output
  3. Digital Input/Output
  4. DC 12V Input
  5. Ethernet Port
  6. Reset Button
  7. System LEDs
  8. Memory Card Slot

Dimension Diagram

Unit: mm [inch]
