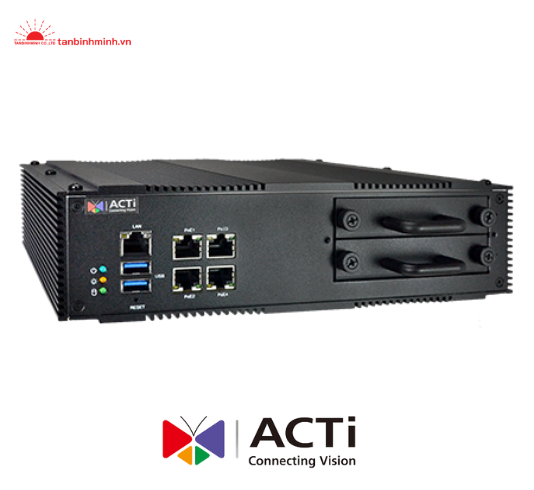

Đầu ghi hình 4 kênh PoE camera hành trình MNR-110P

NVR ACTi 4 kênh

  • MS : MNR-110P
  • Bảo hành :
  • Kho hàng :
  • Hãng sản xuất : ACTi
  • Xuất xứ : TAIWAN
  • Seri sản phẩm :

Số lượng mua
Thông số kỹ thuật
Tổng quan
Video
Download
Phụ kiện



Product Type Standalone NVR
Maximum Resolution Support all ACTi cameras in all resolutions
Maximum Number of Video Devices 4
Maximum Number of Access Control and Network I/O devices 4
Maximum Number of Clients Local: 1, Remote: 2
Supported Screen Resolution HDMI: 1080p, 4K2K
VGA: 1080p

Hardware


CPU Hi3536

License


License required No
Free License 4

Live View


Display Layout Mode Custom dynamic layouts by grid merging
Fisheye Dewarping Local: Yes*, Remote: Yes
Local Live View performance Please check "Standalone NVR Performance Validator" (http://www.acti.com/SANVRPerformance)
Digital Zoom Yes (available for remote web client)
Event Status Display event status upon alarm or upon connection loss or recovery between server and client
Instant Playback Instant Playback in live view window

Map


e-Map Yes*
Google Map Yes*

PTZ


PTZ Control PTZ Control, Speed Control, 32 preset points
Joystick USB based joystick supported*

Video


Compression H.265, H.264, MJPEG
Text Overlay Yes
Built-in Analytics Shock detection with built-in G sensor*

Audio


Audio Type 2-way, Line-in, Line-out

Network


Network Protocol & Service IPv4/v6, TCP, UDP, DHCP (Server/Client), HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, SMTP, ICMP, ARP, UPnP, iSCSi, Samba, NFS, SNMP
Ethernet Port Total ports: 6 port(s)
(WAN)
Non-PoE: 2 port(s), Ethernet (1000 Base-T), RJ-45 connector
(LAN)
PoE: 4 port(s), Ethernet (10/100 Base-T), RJ-45 connector

Recording


Scheduled Recording Yes
Event Recording Yes
Manual Recording Yes
Event Speed-up Recording Yes
Dual Stream Management Yes
Maximum Recording Throughput 300 Mbps

Search & Playback


Playback Control Continuous forward and backward playback with speeds 0.125x/0.25x/0.5x/1x/2x/4x/8x/16x, pause, stop
Synchronized Playback 4 channels
Recording Search Search video recordings by time, events, channels and bookmarks*
Video Export RAW, AVI

Event


Event Trigger [NVR]: Disk full, Disk not found, System booted successfully, Expiration of user accounts, Expiration of specific event schedule, Event action failed, S.M.A.R.T test failed.

[Video Device]: Video motion detection, External device through digital input, Sound detection, Video loss, Video Recovery, Network loss and recovery, Intelligent event detection (ACTi IVS Cameras) [Extended Device]: Point-of-sale (POS) status, Network I/O status, Access Control status
Event Response Play alert sound, Activate external device through digital output, E-mail notification with snapshots, Go to PTZ preset point or preset tour, Command other devices, Push notification

System


Permission control Unlimited number of users, Active Directory*, Customizable permissions for user groups*, Account lockout*, Automatic logout after idle*
Client PC Operating System Windows 10, Windows 8.1, Windows 7 SP1
Server Operating System Embedded Linux
Mobile Client Program Mobile device application (ACTi Mobile Client) supports Live View, PTZ Control, Event/time based search and playback, Supported device(s) iOS, Android device
USB 4-Port USB 3.0
Language Multi-Language

Integration


Unified Solution Fully compatible with ACTi cameras, encoders, central management system, TV wall and intelligent video surveillance software
ONVIF Compliant Yes, Profile S, Profile G*
Web Browser IE 11 (Please verify that your computer meets the minimum system requirements for Internet Explorer from Microsoft website.)
Auto Firmware Upgrade Yes
Third-party Integration Access Control, Network I/O

Storage


Storage Bay SATA, Max. 2 Disk(s)
HDD Size 2.5"
Maximum Recording Capacity 1TB x2
Supported Storage Video Recording: SATA disk, iSCSI
Export*: USB, iSCSI, Samba, NFS

Interface


Serial Port 2 x RS-232
Wireless mini-PCIe slot x 2 for optional Wireless modules such as Wi-Fi (IEEE 802.11b/g/n), 4G, GPS
Digital Input/Output 2/2
External Storage Interface iSCSI
Local Access USB keyboard & mouse
Local Display Interface HDMI x 1, VGA x 1,

General


PoE Output Maximum 10.08 Watts per port
(the recommended maximum power consumption of supported camera is 6.25 Watts)**
PoE Power Budget Maximum 40 W
Power Source DC 9-36V, adapter not included
Weight 3100g (6.834lb)
Dimensions (W x H x D): 270.6mm x 72.3mm x 239mm (10.7" x 2.8" x 9.4")
Operating Temperature -20°C ~ 60°C (-4°F ~ 140°F)
Remote Access Web Client, Mobile Client
Approvals CE, FCC, EN50155
Warranty 3 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty
Comments * To be available through future firmware upgrade
** Please check "Unified Solution Validator" to find the supported models (http://www.acti.com/unifiedsolution)
*** Please test the actual performance before using in a project.

Photo Indication

  1. LAN Ports
  2. LED Indicators
  3. USB 3.0 Port
  4. Reset Button
  5. Audio Input / Output
  6. Digital Input/Output
  7. Power Button
  8. Power Input
  9. Serial Port
  10. Hard Disk Bay
  11. Power-over-Ethernet port
  12. Serial Port
  13. USB 3.0 Port
  14. WAN Port
  15. HDMI Port
  16. VGA Port

Dimension Diagram

Unit: mm [inch]
