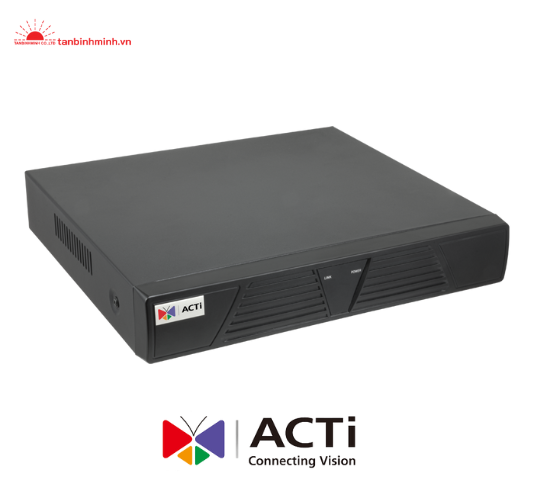

Đầu ghi hình 4 kênh PoE ENR-010P

NVR ACTi 4 kênh

  • MS : ENR-010P
  • Bảo hành :
  • Kho hàng :
  • Hãng sản xuất : ACTi
  • Xuất xứ : TAIWAN
  • Seri sản phẩm :

Số lượng mua
Mua sản phẩm này
SP cùng loại
SP xem nhiều
Thông số kỹ thuật
Tổng quan
Video
Download
Phụ kiện



Product Type Standalone NVR
Maximum Resolution Local: up to 3MP; Remote: up to12MP
Maximum Number of Cameras 4
Maximum Number of Video Devices 4
Maximum Number of Clients Local: 1, Remote: 2

License


License required No
Free License 4

Live View


Display Layout Mode 1, 2, 4
Fisheye Dewarping Yes
Local Live View performance Please check "Standalone NVR Performance Validator" (http://www.acti.com/SANVRPerformance)
Digital Zoom Yes
Event Status Display event status upon alarm or upon connection loss or recovery between server and client
Instant Playback Instant Playback in live view window (Remote client)

PTZ


PTZ Control PTZ Control, Speed Control, 32 preset points
Joystick USB based joystick supported

Video


Compression H.264

Audio


Audio Compression PCM, G.711

Network


Network Protocol & Service IPv4/v6, TCP, IP, UDP, HTTP, HTTPS, DHCP (Server/Client), PPPoE, RTP, RTSP, DNS, DDNS, NTP, SNTP, ICMP, ARP, SMTP, UPnP, To be available through future firmware upgrade
Ethernet Port Total ports: 5 port(s)
(WAN)
Non-PoE: 1 port(s), Ethernet (10/100 Base-T), RJ-45 connector
(LAN)
PoE: 4 port(s), Ethernet (10/100 Base-T), RJ-45 connector
Security HTTPS encryption, Password protected user level

Recording


Scheduled Recording Yes
Event Recording Yes
Manual Recording Yes
Event Speed-up Recording Yes
Dual Stream Management Yes
Maximum Recording Throughput 16 Mbps

Search & Playback


Playback Control Continuous forward and backward playback with speeds 0.5x/1x/2x/4x/8x/16x/32x, pause, stop
Synchronized Playback 4 channels
Video Export AVI, RAW

Event


Event Trigger Video motion detection, External device through digital input, Network loss and recovery
Event Response Play alert sound, Activate external device through digital output, E-mail notification with snapshots, Go to PTZ preset point or preset tour

System


Permission control Unlimited number of users, Customizable permissions for user groups
Client PC Operating System Windows 7 SP1, Windows 8.1
Server Operating System Embedded Linux
Mobile Client Program Mobile device application (ACTi Mobile Client) supports Live View, PTZ Control, Event/time based search and playback, Supported device(s) iPhone, Android device
USB 2-Port USB 2.0
Language Multi-Language
System Status Monitor Real time status reports on remote browser

Integration


Unified Solution Fully compatible with ACTi cameras, encoders, central management system, TV wall and intelligent video surveillance software
ONVIF Compliant Yes, Profile S
Web Browser IE 11 (Please verify that your computer meets the minimum system requirements for Internet Explorer from Microsoft website.)

Storage


Storage Bay SATA, Max. 1 Disk(s) (without storage disks)
HDD Size 3.5"
Maximum Recording Capacity 14TB x1

Interface


Local Access USB keyboard & mouse
Local Display Interface HDMI x 1,

General


PoE Output Maximum 15.4 Watts per port
PoE Power Budget Maximum 80 W
Power Source DC 48V
Weight 909g (2.004lb)
Dimensions (W x H x D): 260mm x 45mm x 228mm (10.2" x 1.8" x 9")
Bundled Accessories Power Adapter
Fan Yes
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Operating Humidity 10% - 85% RH
Remote Access Workstation, Web Client, Mobile Client
Approvals CE, FCC, UL (for built-in power adapter)
Warranty 3 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty

Photo Indication

  1. Link Indicator
  2. Power Indicator
  3. Reset Button
  4. HDMI Connector
  5. USB Port
  6. Gigabit Network Connector
  7. 4 PoE 10/100Mbps Ports
  8. Power Switch
  9. DC 48V Power Input

Dimension Diagram

Unit: mm [inch]
