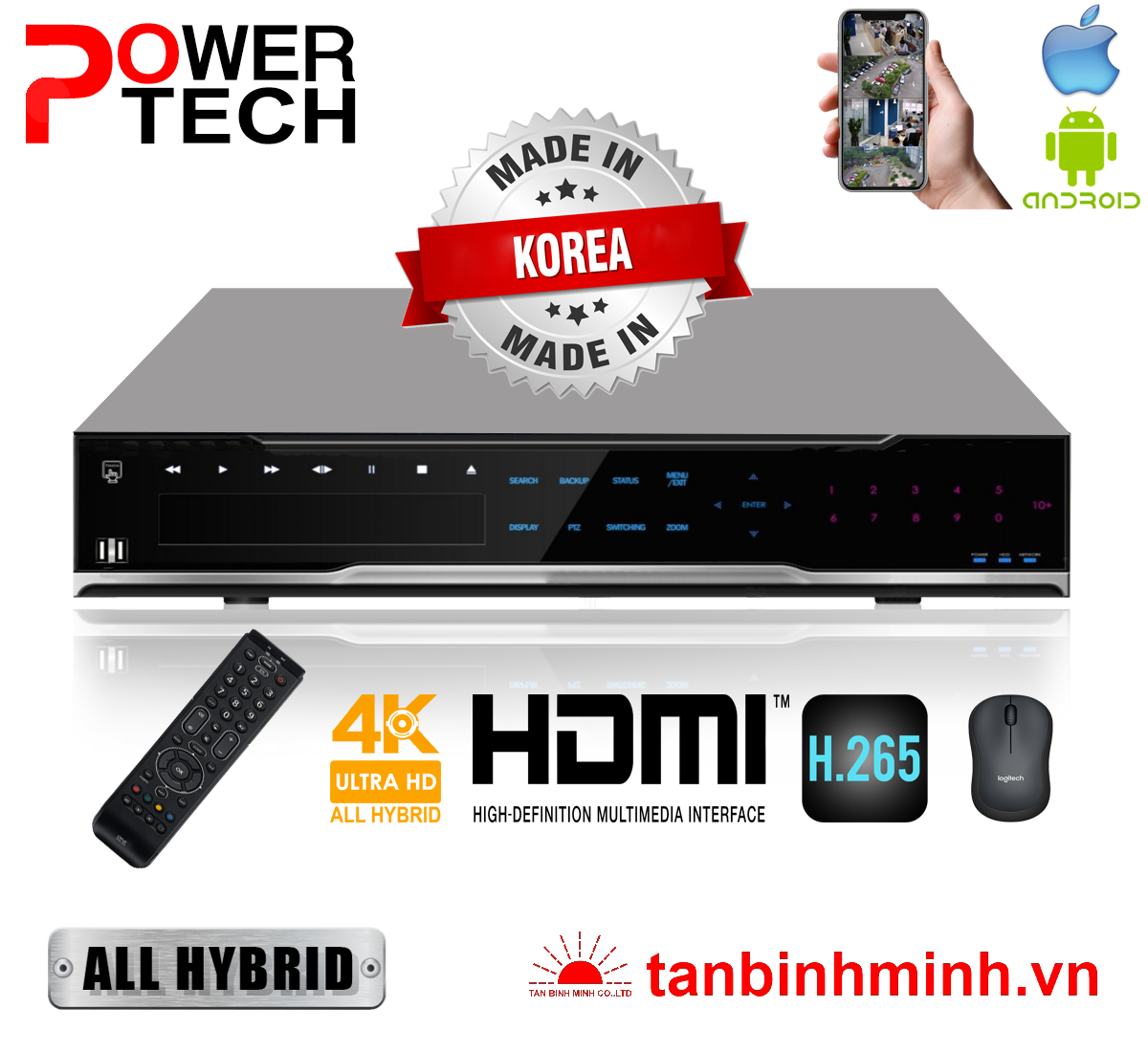

Model | x-Primero 265 Series | |||||
---|---|---|---|---|---|---|
x-Primero 16R 265 | x | |||||
Video | Camera input | 16 BNC | x | |||
Individual HD/Analog selectable | Analog, TVI, AHD, CVI, HD-SDI, EX-SDI, IP | |||||
Available source | Upto 4K IPC TVI/AHD/CVI 720p25,30/1080p25,30/3MP@18~30/4MP@12~30/8MP@15 HD-SDI/EX-SDI 720p25,30/1080p25,30/4MP@25,30/8MP@15 /Composite/960H/Mixed |
|||||
IP Camera | Spec | ONVIF 2.3, RTSP, H.264, dual stream use gigabit ethernet hub |
||||
Num | 8 | x | ||||
Restriction | Cannot setup Private ZONE Cannot support Timestamp |
|||||
Output | 2 HDMI (Main Display or Programmable HD Spot) 1 VGA (Main Display or Programmable HD Spot) 1 Composite (Programmable SPOT) |
|||||
Audio | Audio input | 16 RCA | ||||
Output | 4 RCA | |||||
Sensor In | 16 (NC, NO selectable) | |||||
Alarm out | 2 Relay, 14 TTL | |||||
Operating System | Embedded Linux OS | |||||
Display | Speed | Real Time | ||||
Resolution (Pixel) | 1280X1024, 1280X720, 1920X1080, UHD | |||||
Split screen | 1,4,6,8,9,13,16 | x | ||||
Main Recording | CODEC | H.265 | ||||
Resolution (Pixel) | 8MP : 8MP, 720p 4MP : 4MP, 720p 3MP : 3MP, 720p 1080p : 1080p, 720p 720p : 720p, 960x540 960H, Composite : 960H, D1 |
|||||
Picture quality | 4 steps (Super, High, Medium, Low) | |||||
Speed | 120fps @ 8MP 240fps @ 4MP 480fps @ 1080p |
x | ||||
Dual Recording | CODEC | H.265 | ||||
Condition | 640x360 | x | ||||
Playback | Display | 1,4,6,8,9,13,16 | x | |||
Search mode | ||||||
Speed | 480fps | x | ||||
Fast/Slow speed | Normal, REW & FF [recorded speed 2x, 4x, 8x, 16x, 32x, 64x, 1/2x , 1/4x], Frame to frame, Pause | |||||
Network (Individual setting of resolution, frame rates and picture quality) |
Network Interface | Gigabit Ethernet | ||||
High Resolution (Pixel) Video IN : Possible Recording |
8MP : 1080p, 720p 4MP : 1080p, 720p 3MP : 1080p, 720p 1080p : 1080p, 720p 720p : 720p, 960x540 960H, Composite : 960H, D1 |
X | ||||
Low Resolution (Pixel) Video IN : Possible Recording |
8MP : 480x256 4MP : 480x256 3MP : 480x256 1080p : 480x256 720p : 480x256 960H, Composite : CIF |
|||||
Speed | 140fps @ 1080p | x | ||||
Protocol | TCP/IP, HTTP, DHCP | |||||
Application | Windows 7 / 8 (PC Client system& IE)/MAC | |||||
Web Browser | Internet Explorer | |||||
Smart phone App | Android, iPhone for live and search | |||||
Backup | Interface | USB 2.0 X 3 | ||||
Backup device | External HDD and CD/DVD-RW, Network, Thumb Drive | |||||
The number of HDD | 8 SATA + 1 eSATA(upto 8 bays, No capacity limit ; 10TB or more) | |||||
Function | · Full GUI with alpha blending | |||||
· Individual setting of resolution, frame rates and picture quality | ||||||
· Instant Replay | ||||||
· Digital Zoom | ||||||
· Mouse Control | ||||||
· Weekly scheduler with holiday by 10 minutes setting | ||||||
· Covert, Disable and Private function of cameras | ||||||
· Motion Detection with 576 area setting | ||||||
· Relay alarm output | ||||||
· PTZ control by RS-485 | ||||||
· Daylight Saving Time and Network Time Setting | ||||||
· Multi User Authority | ||||||
· Deinterlacer upon live and playback | ||||||
· Multi languages with full graphic | ||||||
· Individual Network port setting | ||||||
· Auto Deletion | ||||||
· Import and Export the configuration | ||||||
· Interactive setup via network | ||||||
· POS Interface | ||||||
· Mirroring | ||||||
Others | Power Consumption | 150W | ||||
Operating Temperature | 5~40°C(41~104°F) | |||||
Relative Humidity | Maximum 80% non-condensing | |||||
Dimension | 430(W)×420(D)×88(H) mm |
