CHI TIẾT SẢN PHẨM

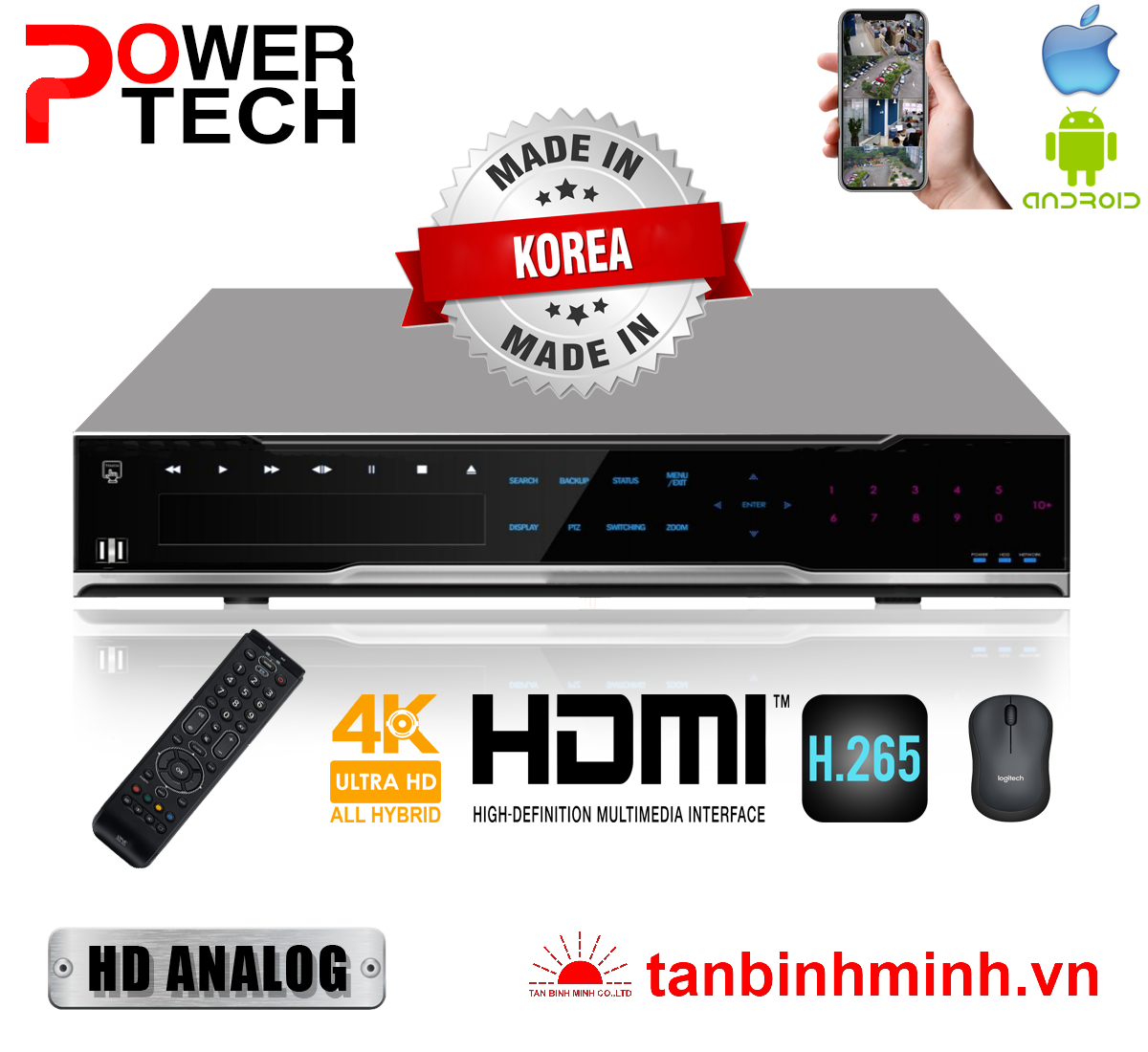

Đầu ghi hình 16 kênh 4K APM16R265
DVR 16 kênh
- MS : APM16R265
- Bảo hành : 12 Tháng
- Kho hàng : Còn hàng
- Hãng sản xuất : POWERTECH
- Xuất xứ : Korea
- Seri sản phẩm : Updating...
Số lượng mua
Thông số kỹ thuật
Tổng quan
Video
Download
Phụ kiện
| Model | a-Primero 265 Series | |||||
|---|---|---|---|---|---|---|
| a-Primero 16R 265 | X | |||||
| Video | Camera input | 16 BNC / Loop out | X | |||
| Individual HD/Analog selectable | Analog, TVI, AHD, CVI, IP | |||||
| Available source | Upto 4K IPC TVI/AHD/CVI 720p25,30/1080p25,30/3MP@18~30/4MP@12~30/8MP@15 /Composite/960H/Mixed |
|||||
| IP Camera | Spec | ONVIF 1812, RTSP, H.265, dual stream use gigabit ethernet hub |
||||
| Num | 8 | X | ||||
| Restriction | Cannot setup Private ZONE Cannot support Timestamp |
|||||
| Output | 2 HDMI (Main Display or Programmable HD Spot) 1 VGA (Main Display or Programmable HD Spot) 1 Composite (Programmable SPOT) |
|||||
| Audio | Audio input | 16 RCA | ||||
| Output | 4 RCA | |||||
| Sensor In | 16 (NC, NO selectable) | |||||
| Alarm out | 2 Relay, 14 TTL | |||||
| Operating System | Embedded Linux OS | |||||
| Display | Speed | Real Time | ||||
| Resolution (Pixel) | 1280X1024, 1280X720, 1920X1080, UHD | |||||
| Split screen | 1,4,6,8,9,13,16 | X | ||||
| Main Recording | CODEC | H.265 | ||||
| Resolution (Pixel), Video IN : Possible Recording |
8MP : 8MP, 720p 4MP : 4MP, 720p 3MP : 3MP, 720p 1080p : 1080p, 720p 720p : 720p, 960x540 960H, Composite : 960H, D1 |
|||||
| Picture quality | 4 steps (Super, High, Medium, Low) | |||||
| Speed | 120fps @ 8MP 240fps @ 4MP 480fps @ 1080p |
X | ||||
| Dual Recording | CODEC | H.265 | ||||
| Resolution (Pixel) | 640x360 | X | ||||
| Playback | Display | 1,4,6,8,9,13,16 | X | |||
| Search mode | ||||||
| Speed | 480fps | X | ||||
| Fast/Slow speed | Normal, REW & [recorded speed 2x, 4x, 8x, 16x, 32x, 64x, 1/2x , 1/4x], Frame to frame, Pause | |||||
| Network (Individual setting of resolution, frame rates and picture quality) |
Network Interface | Gigabit Ethernet | ||||
| High Resolution (Pixel) Video IN : Possible Recording |
8MP : 1080p, 720p 4MP : 1080p, 720p 3MP : 1080p, 720p 1080p : 1080p, 720p 720p : 720p, 960x540 960H, Composite : 960H, D1 |
X | ||||
| Low Resolution (Pixel) Video IN : Possible Recording |
8MP : 480x256 4MP : 480x256 3MP : 480x256 1080p : 480x256 720p : 480x256 960H, Composite : CIF |
|||||
| Speed | 140fps @ 1080p | X | ||||
| Protocol | TCP/IP, HTTP, DHCP | |||||
| Application | Windows 7 / 8 (PC Client system& IE)/MAC | |||||
| Web Browser | Internet Explorer | |||||
| Smart phone App | Android, iPhone for live and search | |||||
| Backup | Interface | USB 2.0 X 3 | ||||
| Backup device | External HDD and CD/DVD-RW, Network, Thumb Drive | |||||
| The number of HDD | 8 SATA + 1 eSATA(upto 8 bays, No capacity limit ; 10TB or more) | |||||
| Function | · Full GUI with alpha blending | |||||
| · Individual setting of resolution, frame rates and picture quality | ||||||
| · Instant Replay | ||||||
| · Digital Zoom | ||||||
| · Mouse Control | ||||||
| · Weekly scheduler with holiday by 10 minutes setting | ||||||
| · Covert, Disable and Private function of cameras | ||||||
| · Motion Detection with 576 area setting | ||||||
| · Relay alarm output | ||||||
| · PTZ control by RS-485 | ||||||
| · Daylight Saving Time and Network Time Setting | ||||||
| · Multi User Authority | ||||||
| · Deinterlacer upon live and playback | ||||||
| · Multi languages with full graphic | ||||||
| · Individual Network port setting | ||||||
| · Auto Deletion | ||||||
| · Import and Export the configuration | ||||||
| · Interactive setup via network | ||||||
| · POS Interface | ||||||
| · Mirroring | ||||||
| Others | Power Consumption | 150W | ||||
| Operating Temperature | 5~40°C(41~104°F) | |||||
| Relative Humidity | Maximum 80% non-condensing | |||||
| Dimension | 430(W)×420(D)×88(H) mm | |||||
