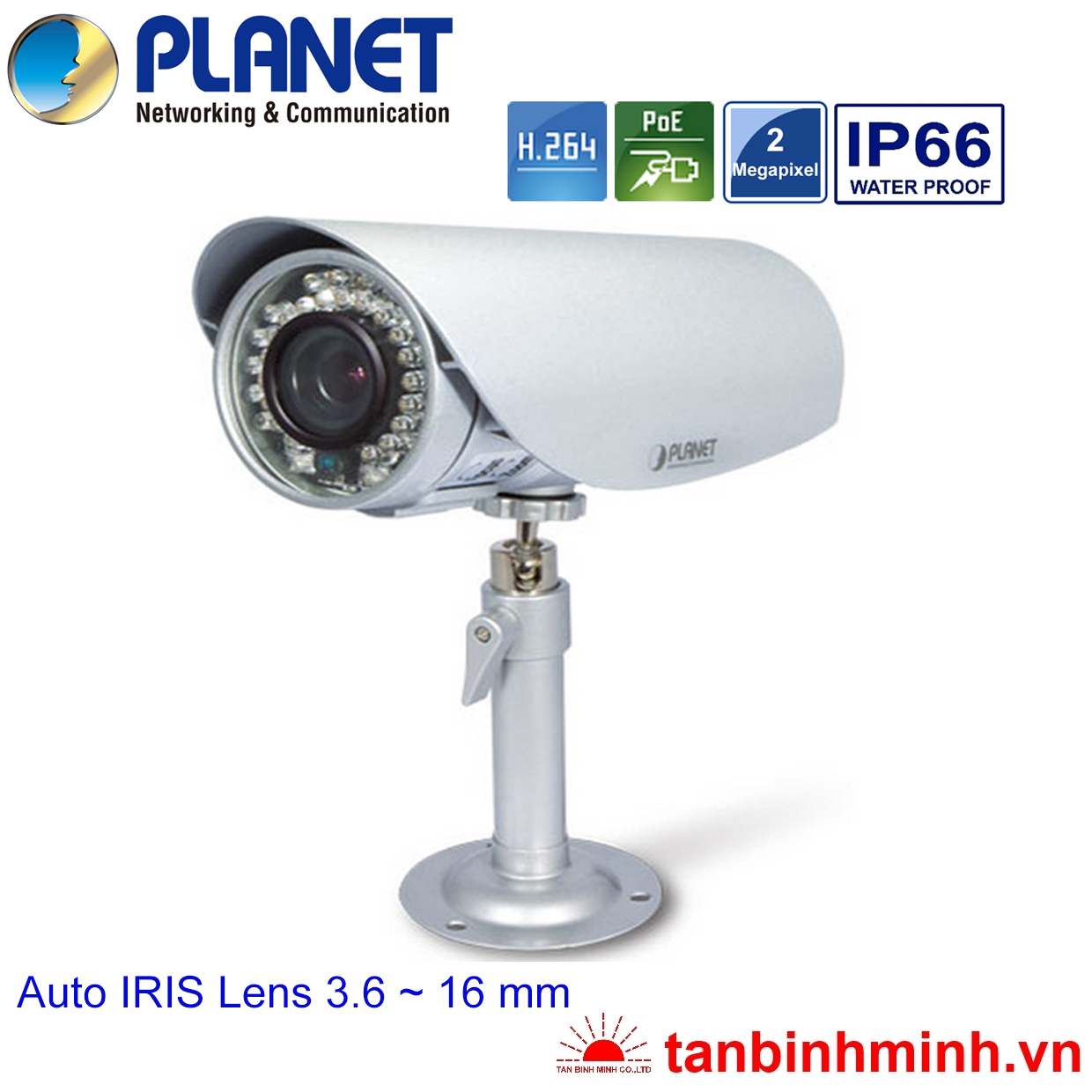

Camera IP Planet ICA-HM316

Model

ICA-HM316

Camera

Image Device

1/3.2" 2 Mega-Pixel progressive scan CMOS sensor

Lens

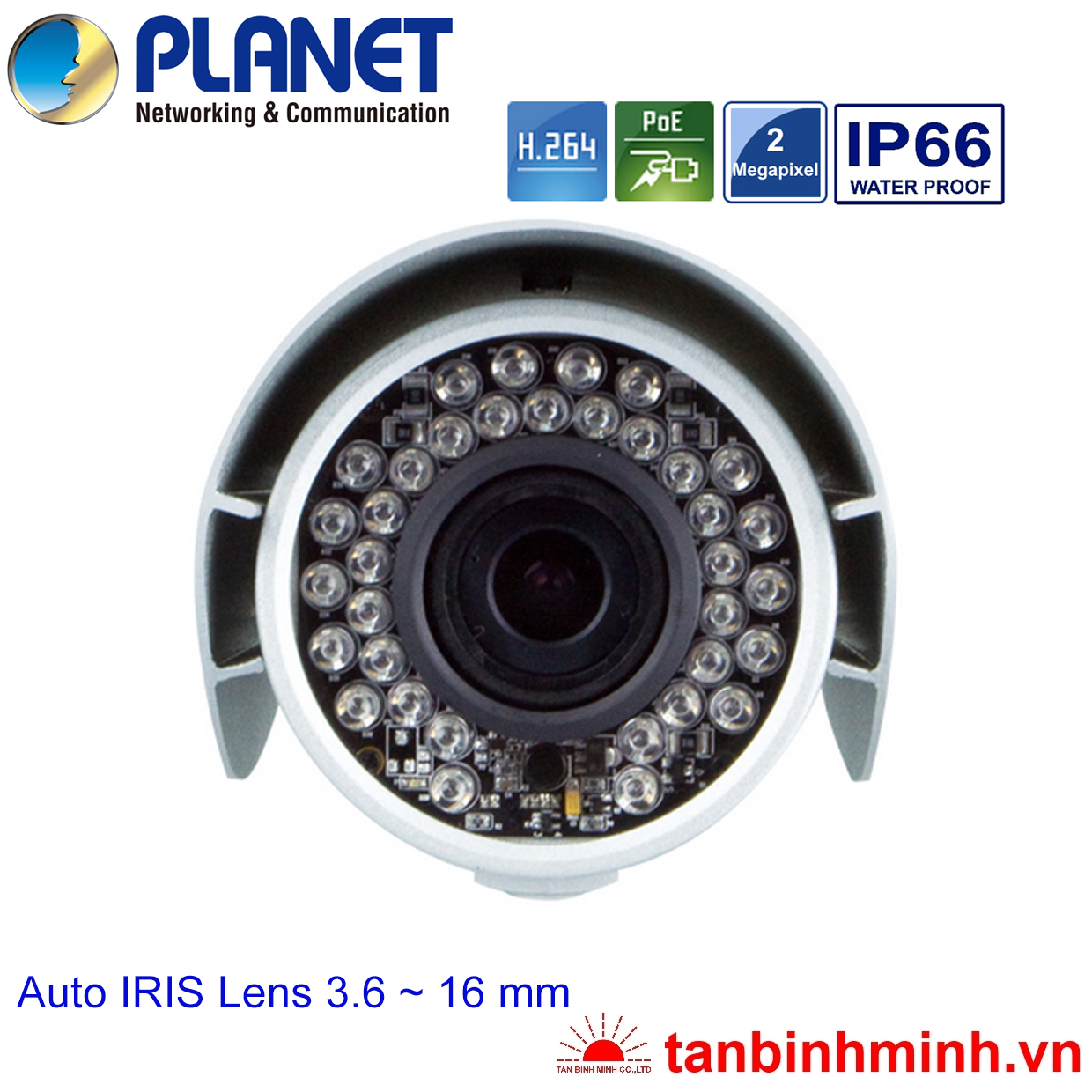

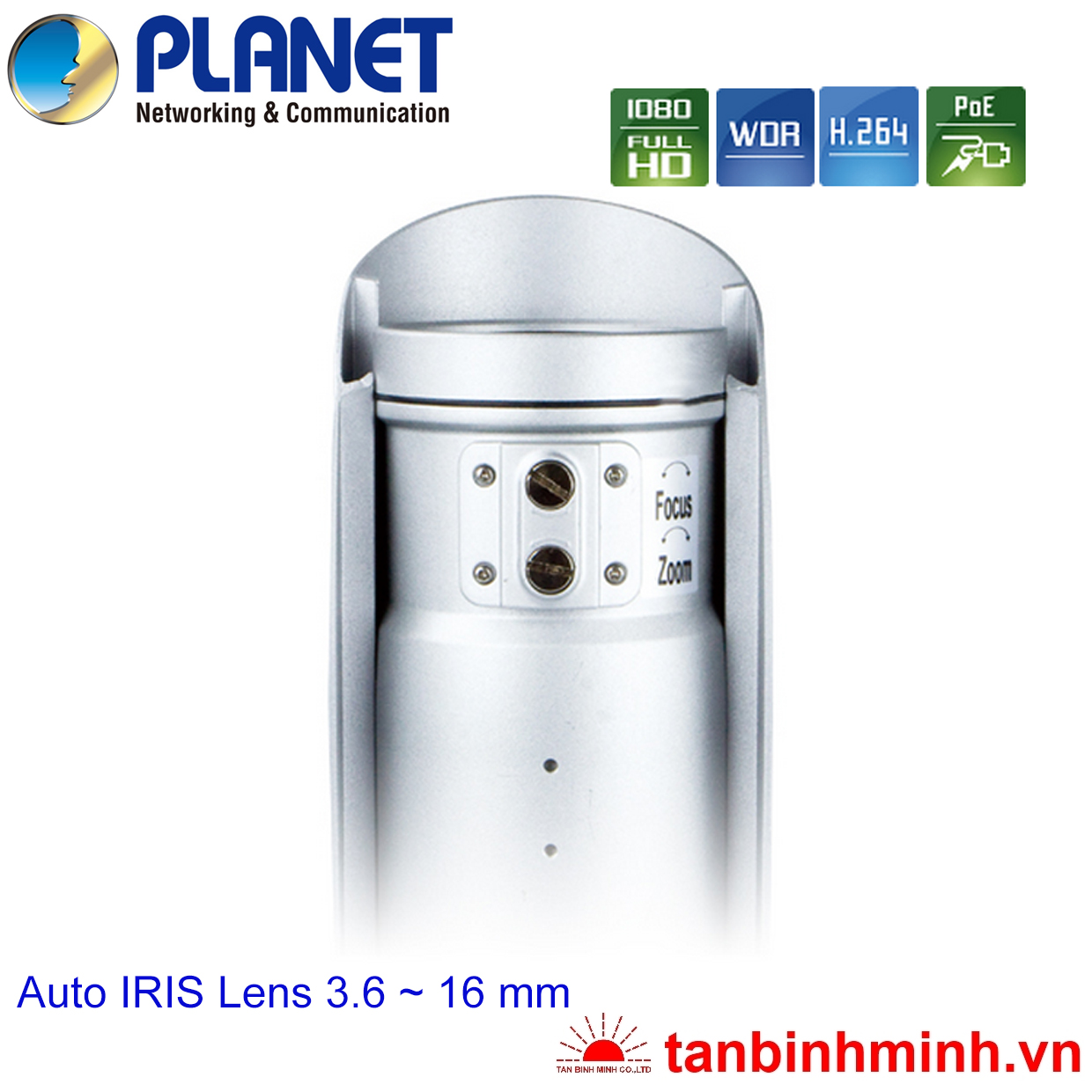

Vari-Focal 3.6~16 mm, DC Auto-Iris
Mechanical IR Cut Filter
Angle of view : horizontal: 20.8 ~ 75.4 Degree / vertical: 15.7 ~ 54.9 Degree

Min Illuminator

0 lux @ F1.2

IR Illumination LED

IR LED*35, 850nm
Built-in IR illuminators, Effective up to 25 meter

Effective Pixels

1600 x 1200 pixels


Video Encoder

H.264 / MPEG-4 / M-JPEG

Video Profile

H.264: UXGA / 720P / SXGA / VGA / QVGA / QCIF
M-JPEG: UXGA / 720P / SXGA / VGA / QVGA
MPEG-4: QCIF (Only for 3GPP)

Frame Rate

UXGA Up to 15fps
SXGA Up to 22fps
HD-720P / SVGA / VGA / QVGA / QCIF Up to 30fps

Image Setting

Brightness, sharpness, contrast, AGC, Night Mode
Text, time and date overlay

Streaming

Simultaneously multi-profile streaming
M-JPEG streaming over HTTP
Supports 3GPP mobile surveillance
Controllable frame rate and bandwidth
Constant and variable bit rate (MPEG-4 / H.264)

Audio

Audio Streaming

Two-Way Audio

Audio Encoder

RTSP: G.711
3GPP: AMR

Microphone

External microphone input

Audio Output

Phone Jack

Network and Configuration

Network Standard

IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX

Supported Protocols

IPv4, TCP, UDP, HTTP, SMTP, FTP, NTP, DNS, DDNS, DHCP, UPnP, RTSP, RTP, RTCP, PPPoE, 3GPP, ICMP

Security

Password protection, user access log

Users

10 simultaneous unicast users

System Integration

Application Programming Interface

Open API for software integration
SDK

Alarm Triggers

Intelligent video motion detection and external input
3-zone video motion detection

Alarm Events

File upload via FTP, email and SAMBA
External output activation
Configurable Pre/Post alarm buffering

General

Power Supply

12V DC, 1A
IEEE 802.3af Class 0

Power Consumption

Max 10.8 W while IR LED ON
Max 7.7 W while IR LED OFF

Housing

Weather-proof IP66-rated housing

Operating Temperature

-20 ~ 50 Degree C

Operating Humidity

20 ~ 80% (non-condensing)

Weight

850g

Dimension (Φ x L)

83 x 180 mm

Emission

CE, FCC

Connectors

10/100 Mbps Ethernet, RJ-45
DC power jack
Terminal block for 1 alarm input, 1 output and factory default reset
External MIC input
Audio out
Composited video out (Max. resolution: D1 720 x 480 pixel)
