Camera IP Planet ICA-3550V

Model

ICA-3550V

Camera

Image Device

1/3.2" 5 mega-pixel progressive scan CMOS Sensor

Lens

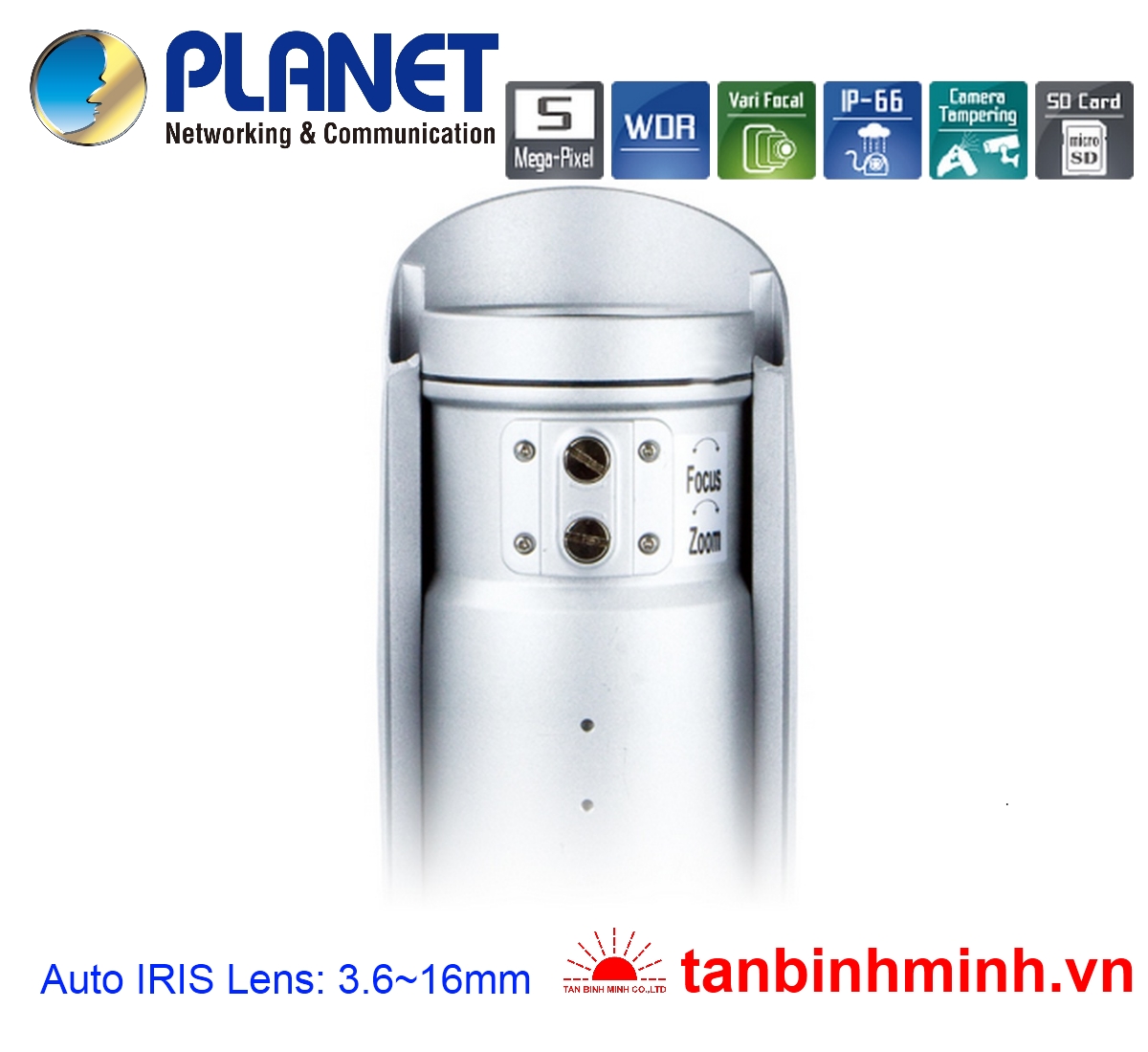

Vari-focal 3.6~16 mm, DC auto-iris
Mechanical IR-cut filter
Angle of view : horizontal: 27.31 ~ 75.24 degrees / vertical: 19.09 ~ 54.16 degrees

Min Illuminator

0 Lux @ F1.2

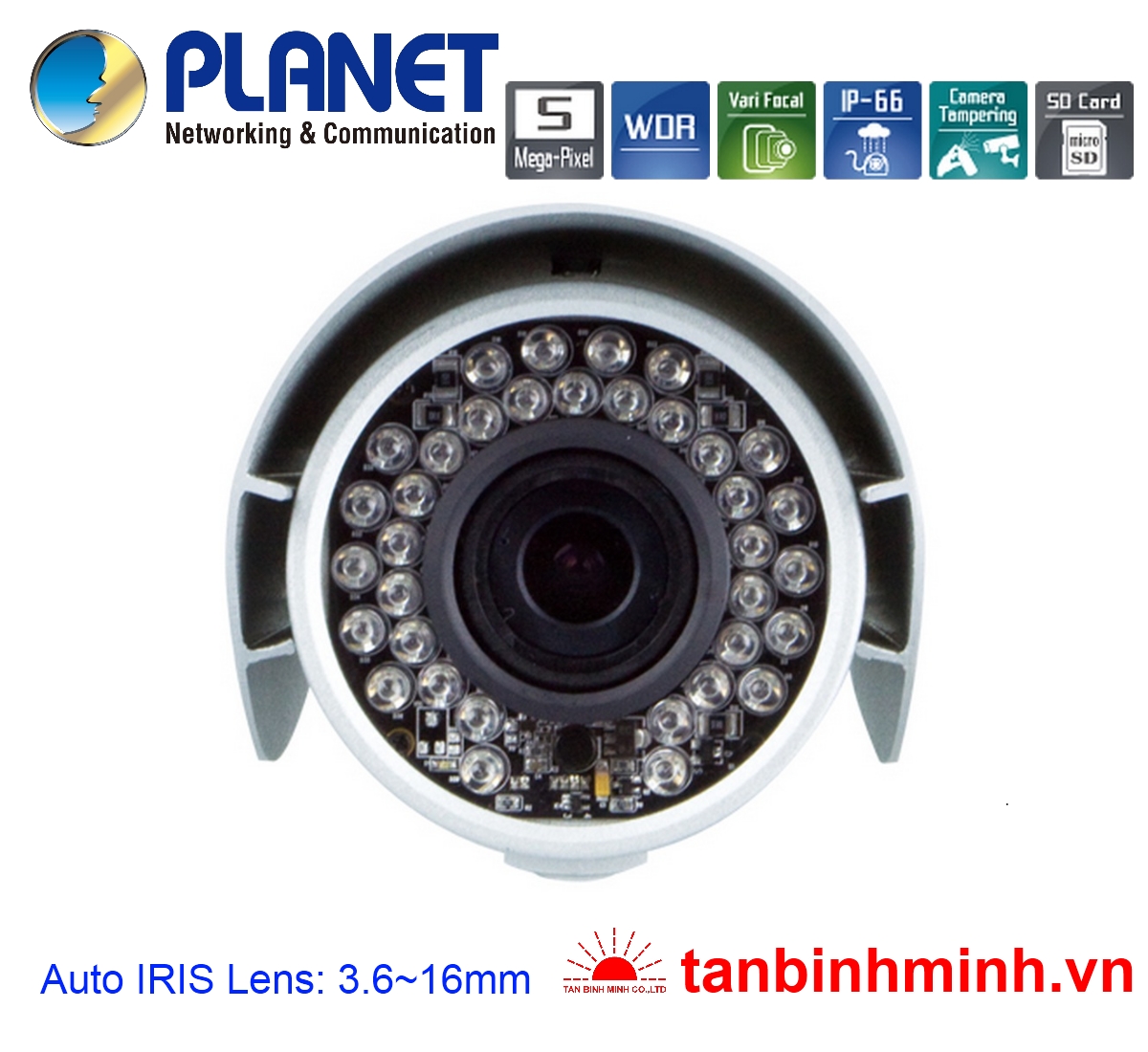

IR Illumination LED

IR LED*35, 850nm
Built-in IR illuminators, effective up to 25 meters

Effective Pixels

2592 x 1944 pixels


Video Encoder

H.264 / MPEG-4 / M-JPEG

Video Profile

H.264: 2592 x 1944 / 1080P / 720P / QXGA / UXGA / 1280 x 960 / VGA / QVGA / QCIF
M-JPEG: 2592 x 1944 / 1080P / 720P / QXGA / UXGA / 1280 x 960 / VGA / QVGA / QCIF
MPEG4: VGA / QVGA / QCIF (Only for 3GPP)

Frame Rate

5MP up to 15fps
Full HD up to 30fps

Image Setting

Brightness, sharpness, contrast, AGC, night mode
Text, time and date overlay

Streaming

Simultaneously multi-profile streaming
M-JPEG streaming over HTTP
Supports 3GPP mobile surveillance
Controllable frame rate and bandwidth
Constant and variable bit rate (MPEG4 / H.264)

Audio

Audio Streaming

Two-way audio

Audio Encoder

RTSP: G.711 / G.726
3GPP: AMR

Microphone

External microphone input

Audio Output

Phone jack

Network and Configuration

Network Standard

IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX

Supported Protocols

IPv6, IPv4, HTTP, HTTPS, SNMP, QoS/DSCP, Access list, IEEE 802.1X, RTSP, TCP/IP, UDP, SMTP, FTP, PPPoE, DHCP, DDNS, NTP, UPnP, 3GPP, SAMBA, Bonjour

Security

Password protection, IP address filtering, HTTPS
encrypted data transmission, 802.1X port-based
authentication for network protection, QoS/DSCP

Users

10 simultaneous unicast users

System Integration

Application Programming Interface

Open API for software integration
SDK

Alarm Triggers

Intelligent video motion detection and external input
3-zone video motion detection

Alarm Events

File upload via FTP, email and SAMBA
External output activation
Configurable Pre/Post alarm buffering

General

Power Supply

12V DC, 1A
IEEE 802.3af Class 0

Power Consumption

DC 12V Max: 6.48W (IR On); 4.2W (IR Off)
PoE Max: 8.16W (IR on); 5.28W (IR Off)

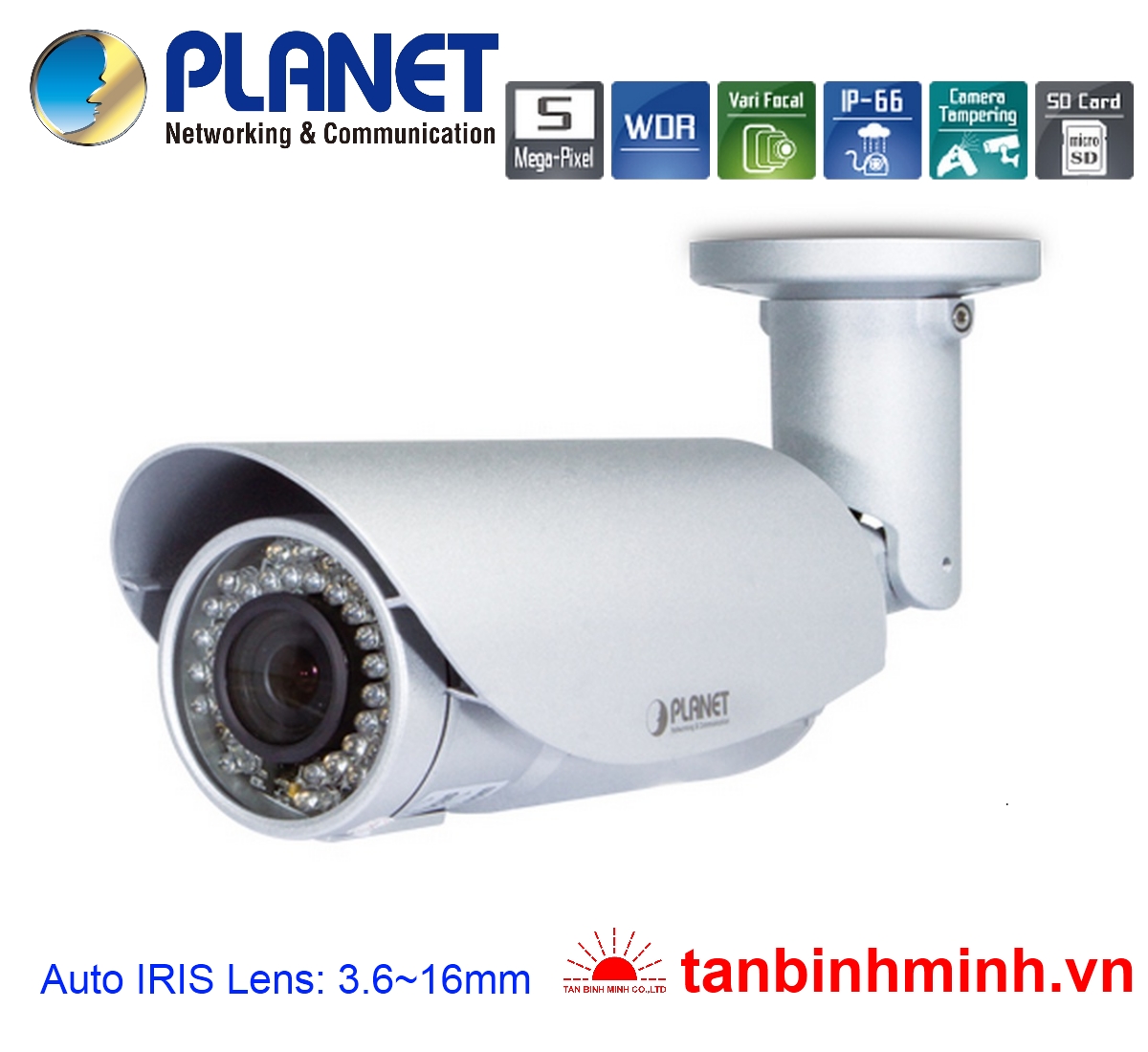

Housing

Weather-proof IP66-rated housing

Operating Temperature

-20 ~ 50 degrees C

Operating Humidity

20 ~ 80% (non-condensing)

Weight

1062g

Dimensions (Φ x L)

83 x 180 mm

Emission

CE, FCC

Connectors

10/100 Mbps Ethernet, RJ-45
DC power jack
Terminal block for 1 alarm input , 1 output and factory default reset
External mic input
Audio out
Micro SD/SDHC card (max 32GB, class 6)
Composited video out
