CHI TIẾT SẢN PHẨM

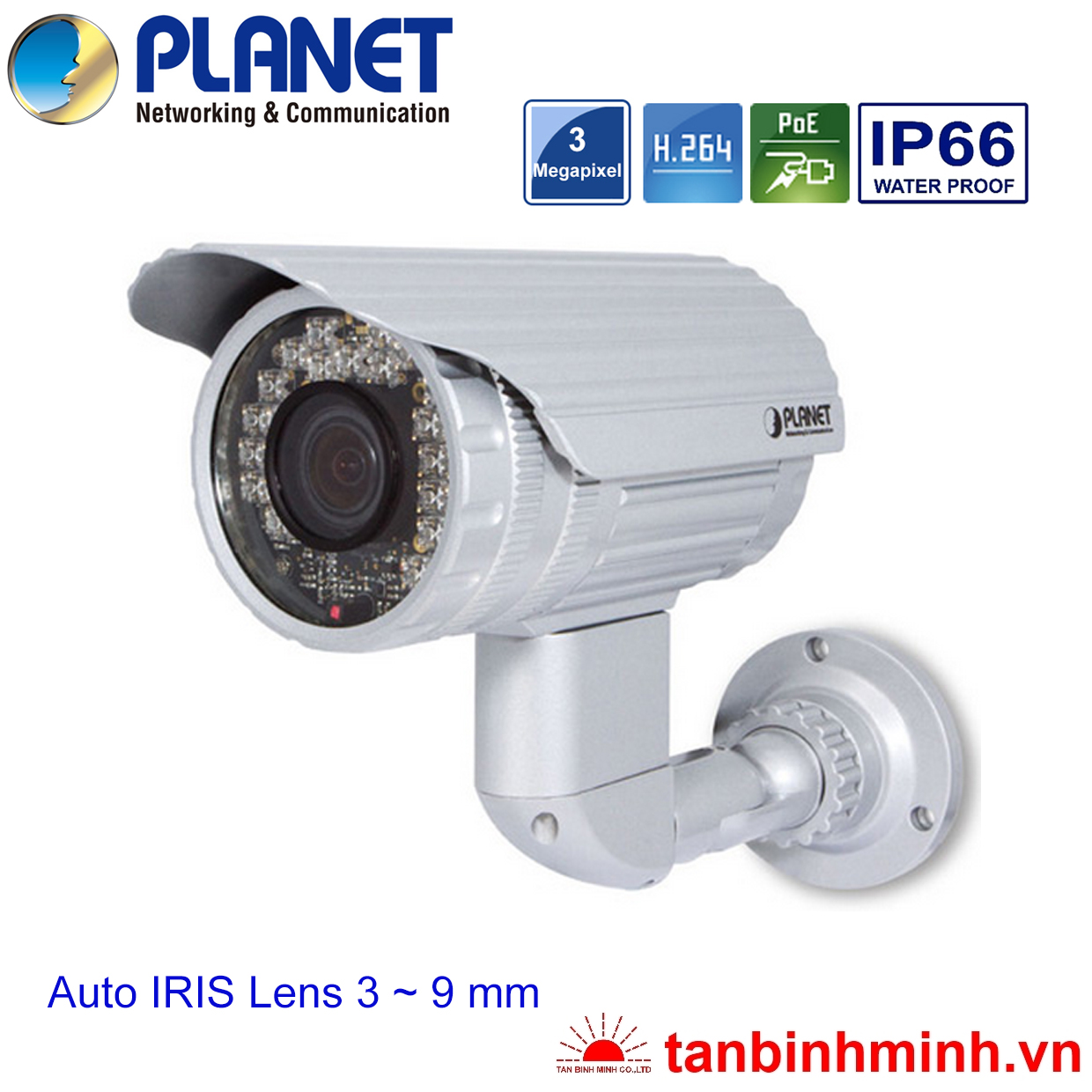

Camera IP Planet ICA-3350V

Camera IP Thân dài

  • MS : ICA-3350V
  • Bảo hành : 12 tháng
  • Kho hàng : Còn hàng
  • Hãng sản xuất : Planet
  • Xuất xứ : Taiwan
  • Seri sản phẩm :

Số lượng mua
Thông số kỹ thuật
Tổng quan
Video
Download
Phụ kiện

Model

ICA-3350V

Camera

Image device

1/2.8 type Sony Exmor progressive scan CMOS sensor

Lens

Vari-focal 3.0~9.0mm, DC Auto-iris
Mechanical IR Cut Filter
Angle of view : horizontal: 40 ~ 97 Degree / vertical: 30 ~ 81 Degree

Min Illumination

0.5 lux @ F1.2

IR Illuminations

IR LED*24, 850nm
Built-in IR illuminators, Effective up to 25 meter

Effective Pixels

2048 x 1536 pixels


Video Compression

H.264 / MPEG-4 / M-JPEG

Video Resolution

H.264: QXGA / SXGA / VGA / QVGA
MPEG4: VGA / QVGA
M-JPEG: QXGA / SXGA / VGA / QVGA

Frame Rate

Up to 30fps for all resolutions

Image Setting

AE, AWB
3D Noise reduction
WDR
Color, brightness, sharpness, contrast
Mirror/Flip
8 Privacy Masks
Text, time and date overlay

Streaming

Simultaneously multi-profile streaming
Streaming over UDP, TCP, or HTTP
M-JPEG streaming over HTTP (server push)
Supports 3GPP mobile surveillance (MPEG4)
Controllable frame rate and bandwidth
Constant and variable bit rate (MPEG4/H.264)
ROI

Audio

Audio Streaming

Two-way Audio

Audio Compression

RTSP: G.711 64kbps, G.726 32kbps
3GPP: AMR

Microphone

External microphone input

Audio Output

Adjustable audio output gain

Network and Configuration

Standard

IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3ab 1000Base-T

Protocol

IPv4, IPv6, TCP/IP, UDP, HTTP, HTTPS, SMTP, FTP, NTP, DNS, DDNS, DHCP, ARP, Bonjour, UPnP, RTSP, RTP, RTCP, IGMP, PPPoE, 3GPP, ICMP, Samba

Security

Password protection, IP address filtering, HTTPS encrypted data transmission, user access log

Users

20 clients on-line monitoring at the same time

System Integration

Application Programming Interface

Open API for software integration
ONVIF Compliant

Alarm Triggers

Intelligent video motion detection and external input

Alarm Events

File upload via FTP, Samba to NAS, SD card or email
Notification via email, HTTP, and TCP
External output activation
Audio alerting output
Pre- and post-alarm buffering

General

Power Requirement

12V DC, 1A
IEEE 802.3af Class 3

Power Consumption

10W max.

Housing

Weather-proof IP66-rated housing

Operating Temperature

-20 ~ 50 Degree C

Operating Humidity

5 ~ 95% (non-condensing)

Weight

940g

Dimension (Φ x L)

100 x 171 mm

Emission

CE, FCC

Connectors

10/100/1000 Mbps Gigabit Ethernet, RJ-45
DC power jack
Terminal block for 1 alarm input and 1 output
RS-485 interface for scanners, pan/tilts
External MIC input
Audio out
Composited video out
Factory default reset
