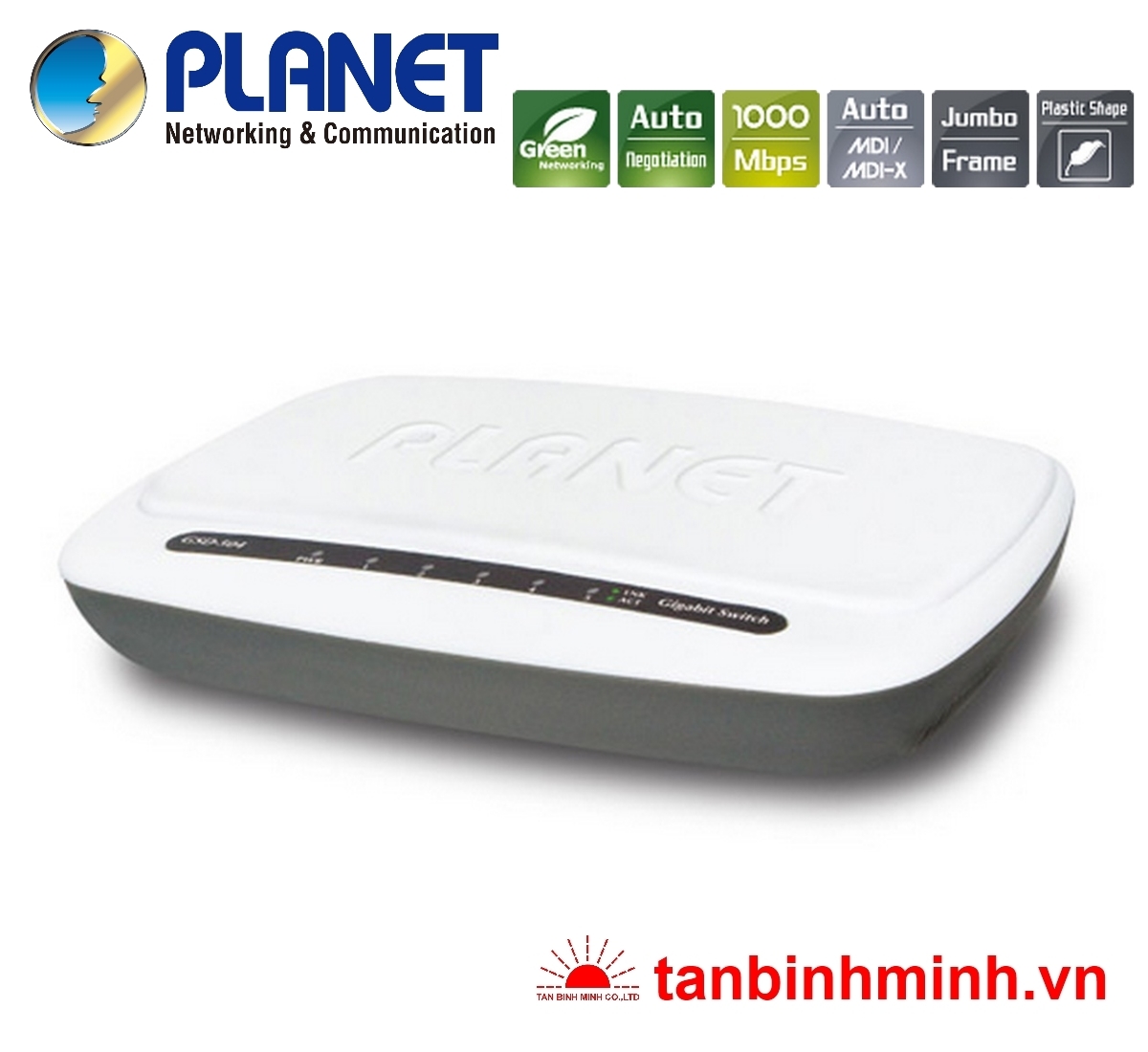

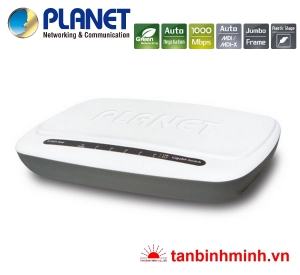

Switch 5 Port Planet GSD-504/ LAN

Model

GSD-504

10/100/1000Base-T Ports

5 Auto MDI/MDIX ports

Enclosure

Plastic

Dimension (W xD x H)

168 x 100 x 29 mm

Weight

152g

Power Requirement (External power adapter)

DC 5V, 1A

Power Consumption (100M Full operating)

4.6 Watts / 16 BTU

Switch Processing Scheme

Store-and-Forward

Address Table

8K entries

Flow Control

Back pressure Half Duplex, IEEE 802.3x Pause Frame Full Duplex

Switch fabric

10Gbps

Throughput (packet per second)

7.44Mpps

Jumbo packet size

9K

Standards Compliance

IEEE 802.3 (Ethernet)
IEEE 802.3u (Fast Ethernet)
IEEE 802.3ab (Gigabit Ethernet)
IEEE 802.3x (Full-Duplex Flow Control)

Temperature

Operating: 0~50 Degree C
Storage: -20~70 Degree C

Humidity Operating

Operating: 5~90%, Storage: 5~90% (Non-condensing)

Regulation Compliance

FCC Part 15 Class B, CE
