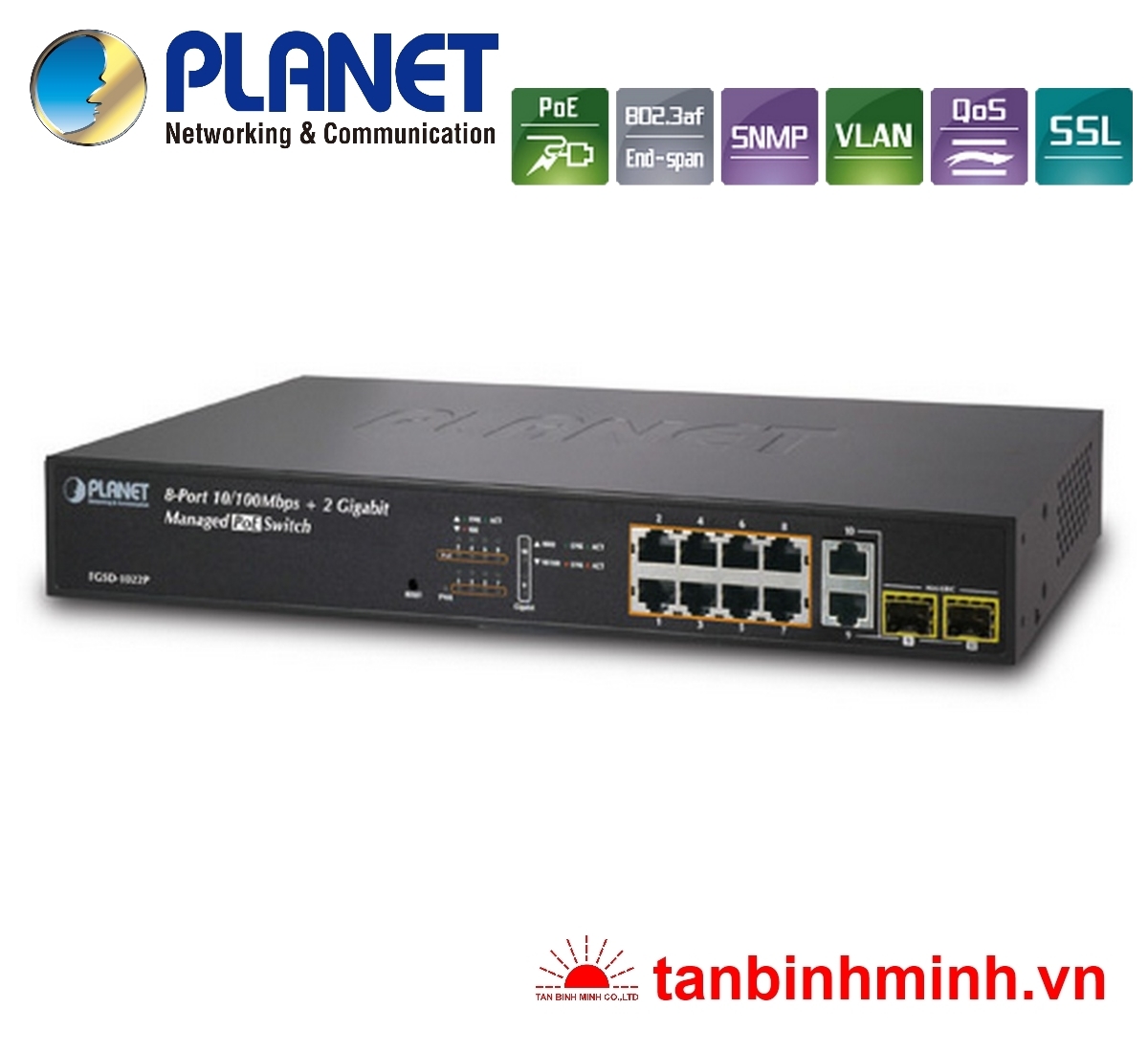

Switch 8 Port Planet FGSD-1022P/ PoE

Model

FGSD-1022P

10/100Mbps Copper Ports

8 10/ 100Base-TX RJ-45 Auto-MDI/MDI-X ports

1000Mbps Copper Ports

2 10/100/1000Base-T RJ-45 Auto-MDI/MDI-X ports

SFP/mini-GBIC Slots

2 1000Base-SX/LX/BX, shared with Port-9~Port-10

Switch Architecture

Store-and-Forward

Switch Fabric

5.6Gbps / non-blocking

Switch Throughput

4.16Mpps @64Bytes

Address Table

8K entries

Share Data Buffer

2 Mbits

Maximum Frame Size

9K Bytes

Flow Control

Back pressure for Half-Duplex
IEEE 802.3x Pause Frame for Full-Duplex

LED

Power (Green)
Link / Activity (Green)
PoE In-Use (Orange)
1000 LNK / ACT(Green)
10/100 LNK / ACT(Orange)

Dimensions (W x D x H)

330 x 155 x 43.5mm

Weight

1.63kg

Reset Button

< 1-5 seconds: System reboot
> 10 seconds: Factory Default

Power Input

100 ~ 240V AC, 50/60Hz

Power Consumption

200 Watts / 58.6 BTU

PoE Standard

IEEE 802.3af Power over Ethernet / PSE

PoE Power Supply Type

End-Span

PoE Power Output

Per Port 48V DC, 350mA . Max. 15.4 Watts

Power Pin Assignment

1/2(+), 3/6(-)

PoE Power Budget

180 Watts*

Max. number of Class 2 PD

8

Max. number of Class 3 PD

8

Management Interface

Console, Telnet, Web Browser, SSL, SNMPv1, v2c, v3

Port Configuration

Port disable / enable
Auto-negotiation
10/100/1000Mbps full and half duplex mode selection
Flow Control disable / enable

Operating

Temperature: 0 ~ 50 Degree C
Relative Humidity: 20% ~ 95%

Storage

Temperature: -10 ~ 70 Degree C
Relative Humidity: 20% ~ 95% (non-condensing)
