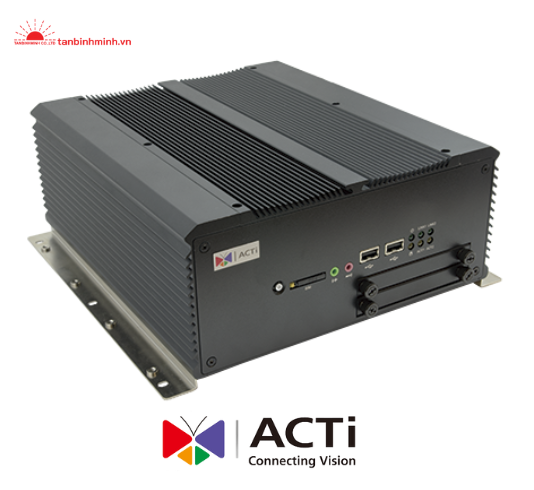

Đầu ghi hình 32 kênh camera hành trình MNR-310

NVR ACTi 32 kênh

  • MS : MNR-31
  • Bảo hành :
  • Kho hàng :
  • Hãng sản xuất : ACTi
  • Xuất xứ : TAIWAN
  • Seri sản phẩm :

Số lượng mua
Thông số kỹ thuật
Tổng quan
Video
Download
Phụ kiện



Product Type Standalone NVR
Maximum Resolution Support all ACTi cameras in all resolutions
Maximum Number of Cameras 32
Maximum Number of Video Devices 32
Maximum Number of POS devices 32 (requires additional license)
Maximum Number of Clients Local: 1, Remote: 3

Hardware


CPU Intel Atom D2550
RAM 2GB

License


License required Yes
Free License 16 (16 channels for ACTi and 1 channel for third-party video device)

Live View


Display Layout Mode Local:1, 3, 4, 5, 6, 8, 9, 10, 12, 16, Remote:1, 3, 4, 5, 6, 8, 9, 10, 12, 16, 18, 24, 25, 35, 36, 48, 49, 64, Custom
Fisheye Dewarping Yes
Local Live View performance Please check "Standalone NVR Performance Validator" (http://www.acti.com/SANVRPerformance)
Digital Zoom Yes
Event Status Display event status upon alarm or upon connection loss or recovery between server and client or when the allocated disk space is full
Instant Playback Instant Playback in live view window (Remote client)
Embedded websites in Live View Display and connect to pre-configured embedded website

Map


e-Map Yes
Layout Area maps with camera icons, small live view windows, hyperlinked
Setup e-Map image upload, Google maps settings and preset management, camera positioning, vision angle and pointed direction of camera, view positioning, source positioning, extended devices for Point-of-sale (POS), Access Control, Network I/O, Car Park
PTZ Mode Mouse PTZ mode to control e-Map video streams

PTZ


PTZ Control PTZ Control, Speed Control, 32 preset points
Joystick USB based joystick supported

Video


Compression H.265, H.264, MPEG-4, MJPEG

Audio


Audio Type 2-way

Network


Network Protocol & Service IPv4/v6, TCP, UDP, DHCP Client, HTTP, DNS, NTP, RTP, RTSP, SMTP, FTP, ICMP, ARP, UPnP, LDAP (client), iSCSi
Ethernet Port Total ports: 2 port(s)
Non-PoE: 2 port(s), Ethernet (1000 Base-T), RJ-45 connector

Recording


Scheduled Recording Yes
Event Recording Yes
Manual Recording Yes
Event Speed-up Recording Yes
Dual Stream Management Yes
Maximum Recording Throughput 192 Mbps

Search & Playback


Playback Control Continuous forward and backward playback with speeds 1x/2x/4x/8x/16x or frame-by-frame, pause, stop
Synchronized Playback 4 channels (Local), 32 channels (Remote)
Recording Search Search video recordings by time, events, channels, bookmarks, notifications and listed as clickable time-based thumbnails for full-size view and snapshot download
Smart Search Smart search of recorded video by Motion Detection and Tamper
Video Export RAW, AVI, EXE

Event


Event Trigger [NVR]: Disk full, Disk not found, Disk is available, Schedule service start and stop, Video Push start and stop, CPU limit exceeded, [Video Device]: Video motion detection, Passive IR sensor, External device through digital input, Sound detection, Intelligent event detection, Video Push start and stop, Video loss, Video Recovery, Network loss and recovery, [Extended Device]: Point-of-sale (POS) status, Network I/O status, Access Control status, Car park status
Event Response Pop-up window with live video and event confirmation activation, Switch to hotspot window, Switch to customize view, Command a PTZ device to go to a preset point, Play alert sound, Activate external device through digital output, Execute system command to activate other programs, Upload video or snapshot to FTP server, E-mail notification with snapshots, Push notification

Redundancy Server


Redundancy Service Yes, N+1 (With limited functions when NVR 3 server acts as Redundancy server)

System


Permission control Unlimited number of users, Active Directory, Customizable permissions for user groups, Account lockout, Automatic logout after idle, Playback password protected, Password validity period
Client PC Operating System Windows 7 SP1, Windows 8.1, Windows 10, Windows Server 2008 R2 SP1, Windows Server 2012 R2, Windows Server 2016
Server Operating System Windows 7 Embedded
Mobile Client Program Mobile device application (ACTi Mobile Client) supports Live View, PTZ Control, Video Push, Event/time based search and playback, iPad, Android device
USB 4-Port USB 2.0
Language Multi-Language

Integration


Unified Solution Fully compatible with ACTi cameras, encoders, central management system, TV wall and intelligent video surveillance software
GPS Position Manual setting
ONVIF Compliant Yes, Profile S
Web Browser IE 11 (Please verify that your computer meets the minimum system requirements for Internet Explorer from Microsoft website.)
Third-party Integration Point of Sale (POS), Access Control, Network I/O, Parking Management Station (PMS), (Various optional integrations requiring additional license)

Storage


System Drive mSATA SSD, 32GB
Storage Bay SATA, Max. 2 Disk(s)
HDD Size 2.5"
Maximum Recording Capacity 1TB x2
Supported Storage Video Recording: SATA disk, iSCSI
Export: iSCSI, USB

Interface


Serial Port 1 x RS-232
Wireless Wi-Fi (IEEE 802.11b/g/n), 4G, GPS (require optional accessories)
External Storage Interface eSATA, iSCSI, USB
Local Access USB keyboard & mouse, USB Joystick
Local Display Interface HDMI x 1,

General


Power Source AC 100-240V, DC 12V, DC 9-36V, adapter not included
Weight 5370g (11.839lb)
Dimensions (W x H x D): 235mm x 101mm x 268mm (9.25" x 3.97" x 10.55")
Operating Temperature -20°C ~ 60°C (-4°F ~ 140°F)
Operating Humidity 10% - 90% RH
Remote Access Workstation, Web Client, Mobile Client
Approvals CE, FCC, E-Mark, UL (for built-in power adapter)
Warranty 2 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty

Photo Indication

  1. Power Button
  2. SIM Card Holder
  3. Audio Line-out
  4. Audio Mic-in
  5. USB 2.0 Ports
  6. Power Status LED
  7. Link 1 LED
  8. Link 2 LED
  9. HDD Activity LED
  10. ACT 1 LED
  11. ACT 2 LED
  12. HDD Trays
  13. VGA Connector

Dimension Diagram

Unit: mm [inch]
