CHI TIẾT SẢN PHẨM

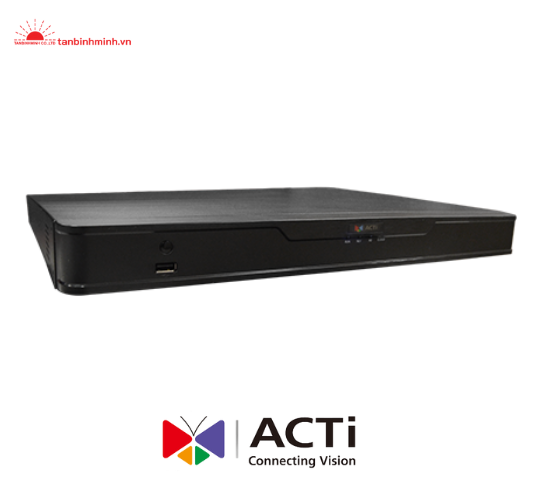

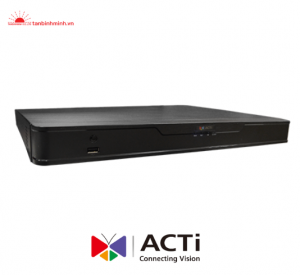

Đầu ghi hình 32 kênh ZNR-423
NVR ACTi 32 kênh
- MS : ZNR-423
- Bảo hành :
- Kho hàng :
- Hãng sản xuất : ACTi
- Xuất xứ : TAIWAN
- Seri sản phẩm :
Số lượng mua
Thông số kỹ thuật
Tổng quan
Video
Download
Phụ kiện
| Product Type | Standalone NVR |
| Maximum Resolution | 8MP |
| Maximum Number of Video Devices | 32 |
| Maximum Number of Clients | Local: 1, Remote: 2 |
| Supported Screen Resolution | HDMI: 3840x2160 (30Hz), 1920x1080 (60Hz/50Hz), 1600x1200 (60Hz), 1280x1024 (60Hz), 1280x720 (60Hz), 1024x768 (60Hz) HDMI/VGA: 1920x1080 (60Hz/50Hz), 1280x1024 (60Hz), 1280x720 (60Hz), 1024x768 (60Hz) |
License
| License required | No |
| Free License | 32 |
Live View
| Display Layout Mode | 1, 4, 6, 8, 9, 16, 32 |
| Local Live View performance | 2ch (up to 30 fps at 4K 3840 x 2160) 3ch (up to 30 fps at 5MP) 4ch (up to 30 fps at 4MP) 5ch (up to 30 fps at 3MP) 8ch (up to 30 fps at 2MP 1920 x 1080) 16ch (up to 30 fps at 720p) 32ch (up to 30 fps at D1) |
| Digital Zoom | Yes |
| Event Status | Display event status upon alarm or upon connection loss or recovery between server and client |
| Instant Playback | Instant Playback in live view window |
PTZ
| PTZ Control | PTZ Control, Speed Control |
Video
| Compression | H.265, H.264 |
Audio
| Audio Type | 2-way, Line-in, Line-out |
Network
| Ethernet Port | 2 x Ethernet (10/100/1000 Base-T), RJ-45 connector |
Recording
| Scheduled Recording | Yes |
| Event Recording | Yes |
| Manual Recording | Yes |
| Maximum Recording Throughput | 160 Mbps |
Search & Playback
| Playback Control | Continuous forward and backward playback with speeds 1/8x, 1/4x, 1/2x, 1x, 2x, 4x, 8x, 16x, 32x, 64x, 128x, 256x, pause, stop |
| Synchronized Playback | 32 channels |
| Video Export | MP4 |
System
| Permission control | 128 Remote users, Customizable permissions for user groups |
| Client PC Operating System | Windows 7, Windows 8, Windows 10 |
| Server Operating System | Embedded Linux |
| USB | 2-Port USB 2.0, 1-Port USB 3.0 |
Integration
| ONVIF Compliant | Yes |
| Web Browser | IE 10 or newer |
Storage
| Storage Bay | SATA, Max. 4 Disk(s) |
| HDD Size | 3.5" |
| Maximum Recording Capacity | 10TB x4 |
| RAID Level | No |
Interface
| Serial Port | 1 x RS-485 |
| Audio Interface | RCA Jack |
| Local Access | USB keyboard & mouse |
| Local Display Interface | HDMI x 1, VGA x 1 |
General
| Power Source | DC 12V |
| Power Consumption | 15 W (DC, without HDD) |
| Weight | 3150g (6.94lb) |
| Dimensions | (W x H x D): 440mm x 50mm x 344mm (17.3" x 2.0" x 13.5") Rack Space: 1U |
| Bundled Accessories | Power Adapter, USB Mouse |
| Operating Temperature | -10°C ~ 55°C (14°F ~ 131°F) |
| Operating Humidity | 10% - 90% RH |
| Remote Access | Web Client |
| Approvals | CE, FCC |
| Color | Black |
| Material | Iron |
| Warranty | 2 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
Dimension Diagram
Unit: mm [inch]
