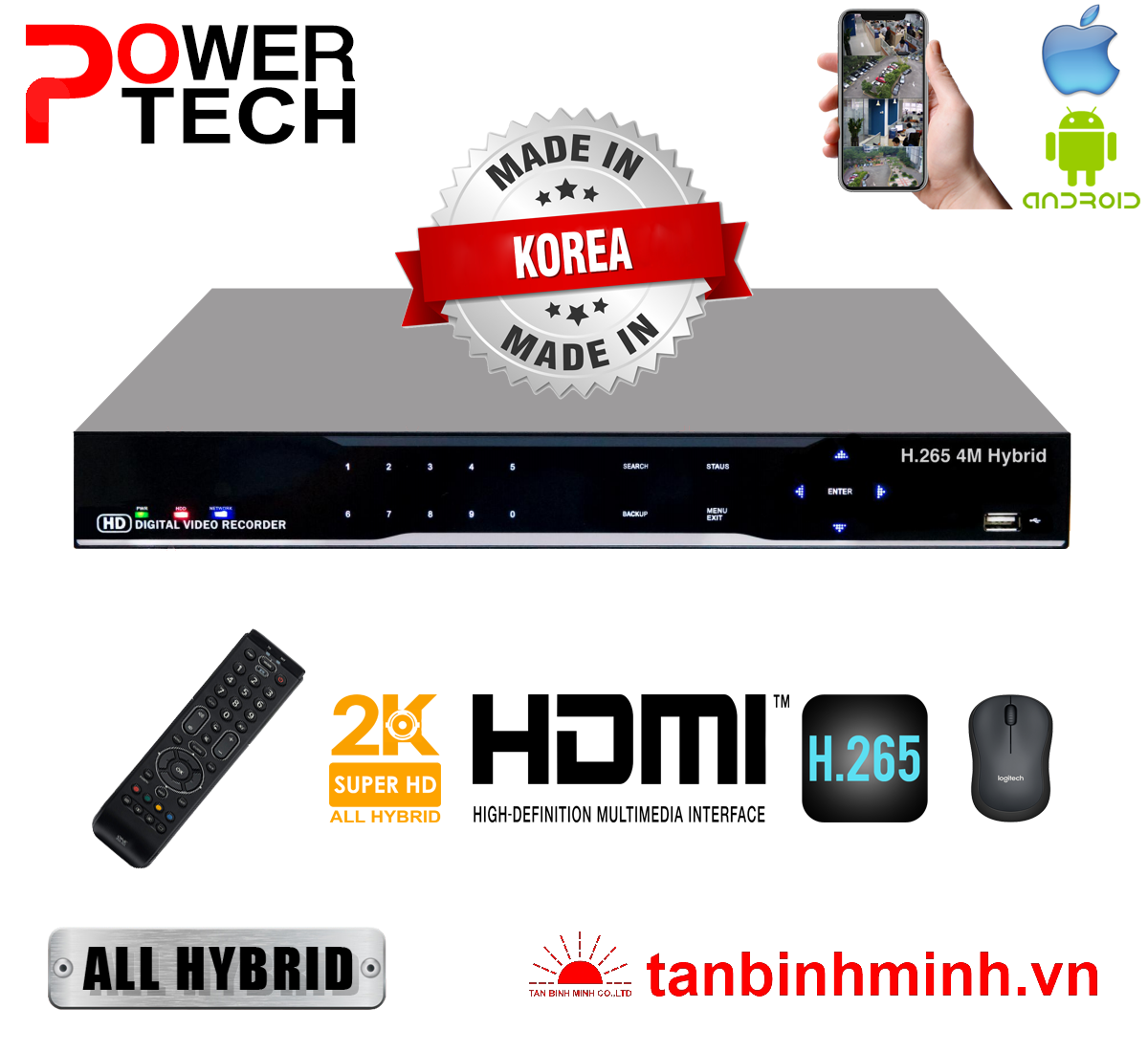

Model | X-Standard 265 | ||||
---|---|---|---|---|---|
x | X-Standard 08W 265 |
x | |||
Video | Camera input | x | 8 BNC | x | |
Individual HD/Analog selectable | Analog, HD-SDI, EX-SDI, AHD, TVI, CVI, IP | ||||
Available source | x | HD-SDI/EX-SDI/TVI/AHD/CVI/Analog - upto 8M 15fps | |||
IP Camera | Spec | ONVIF 2.3, RTSP, H.264, H.265 dual stream use gigabit ethnet hub |
|||
Num | x | 8 | x | ||
Resolution | x | upto 8M | |||
Restriction | Cannot setup Private ZONE Cannot support Timestamp |
||||
Output | x | 2 HDMI (Main Display or Programmable HD Spot) 1 VGA (Main Display or Programmable HD Spot) 1 Composite (Programmable SPOT) |
|||
Audio | Audio input | 4 RCA | |||
Output | 1 RCA | ||||
Sensor In | x | 8 (NC, NO selectable) | x | ||
Alarm out | 2 relay, 2 TTL | ||||
Operating System | Embedded Linux OS | ||||
Display | Speed | Real Time | |||
Resolution (Pixel) | 1280X1024, 1280X720, 1920X1080, 2560x1440(4M), 3840x2160(UHD, Main HDMI only) | ||||
Split screen | x | 1,4,6,8,9 | x | ||
Main Recording | CODEC | H.265 | |||
Resolution (Pixel) | 8MP or 1080p @8MP input 2,3,4,5MP or 720p @ 2,3,4,5MP input 720p or 960x540 @ 720p input 960H or D1 @ Composite, 960H input |
||||
Picture quality | 4 steps (Super, High, Medium, Low) | ||||
Speed | x | 120fps @ 4MP | x | ||
Dual Recording | CODEC | H.265 | |||
Resolution (Pixel) | x | 640x352 | x | ||
Playback | Display | x | 1,4,6,8,9 | x | |
Search mode | Calendar, Event ,POS , Panorama, Thumbnail, Bookmark | ||||
Speed | x | 120fps | x | ||
Fast/Slow speed | Normal, REW & FF [recorded speed 2x, 4x, 8x, 16x, 32x, 64x, 1/2x, 1/4x], Frame to frame, Pause | ||||
Network (Individual setting of resolution, frame rates and picture quality) |
Network Interface | x | Gigabit Ethernet | ||
High Resolution (Pixel) | same as Main Recording | ||||
Low Resolution (Pixel) | 640x352 @ 2,3,4,5,8MP, 720p CIF @ 960H, Composite |
||||
Speed | x | 70fps @ 1080p | x | ||
Protocol | TCP/IP, HTTP, DHCP | ||||
Application | Windows 7 / 8 / 10 (PC Client system& IE)/MAC | ||||
Web Browser | Internet Explorer, Safari | ||||
Smart phone App | Android, iPhone for live and search | ||||
Backup | Interface | USB 2.0 X 2 | |||
Backup device | External HDD, CD&DVD-RW, Network, Thumb Drive | ||||
The number of HDD | x | 2 SATA + 1 ESATA (No capacity limit ; 10TB of more) |
|||
Function | · Full GUI with alpha blending | ||||
· Individual setting of resolution, frame rates and picture quality | |||||
· Instant Replay | |||||
· Digital Zoom | |||||
· Mouse Control | |||||
· Weekly scheduler with holiday by 10 minutes setting | |||||
· Covert, Disable and Private function of cameras | |||||
· Motion Detection with 576 area setting | |||||
· Relay alarm output | |||||
· PTZ control by RS-485 | |||||
· Daylight Saving Time and Network Time Setting | |||||
· Multi User Authority up to 15 Users | |||||
· Deinterlacer upon live and playback | |||||
· 22 languages with full graphic | |||||
· Individual Network port setting | |||||
· Auto Deletion | |||||
· Import and Export the configuration | |||||
· Interactive setup via network | |||||
· POS Interface | |||||
· Mirroring | |||||
· Dual CODEC engine for independent video transmission | |||||
Others | Power Consumption | 60W | |||
Operating Temperature | 0~40°C(32~104°F) | ||||
Relative Humidity | Maximum 80% non-condensing | ||||
Dimension | 380(W)×340(D)×50(H) mm |
