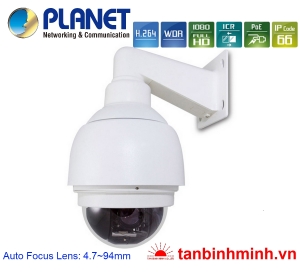

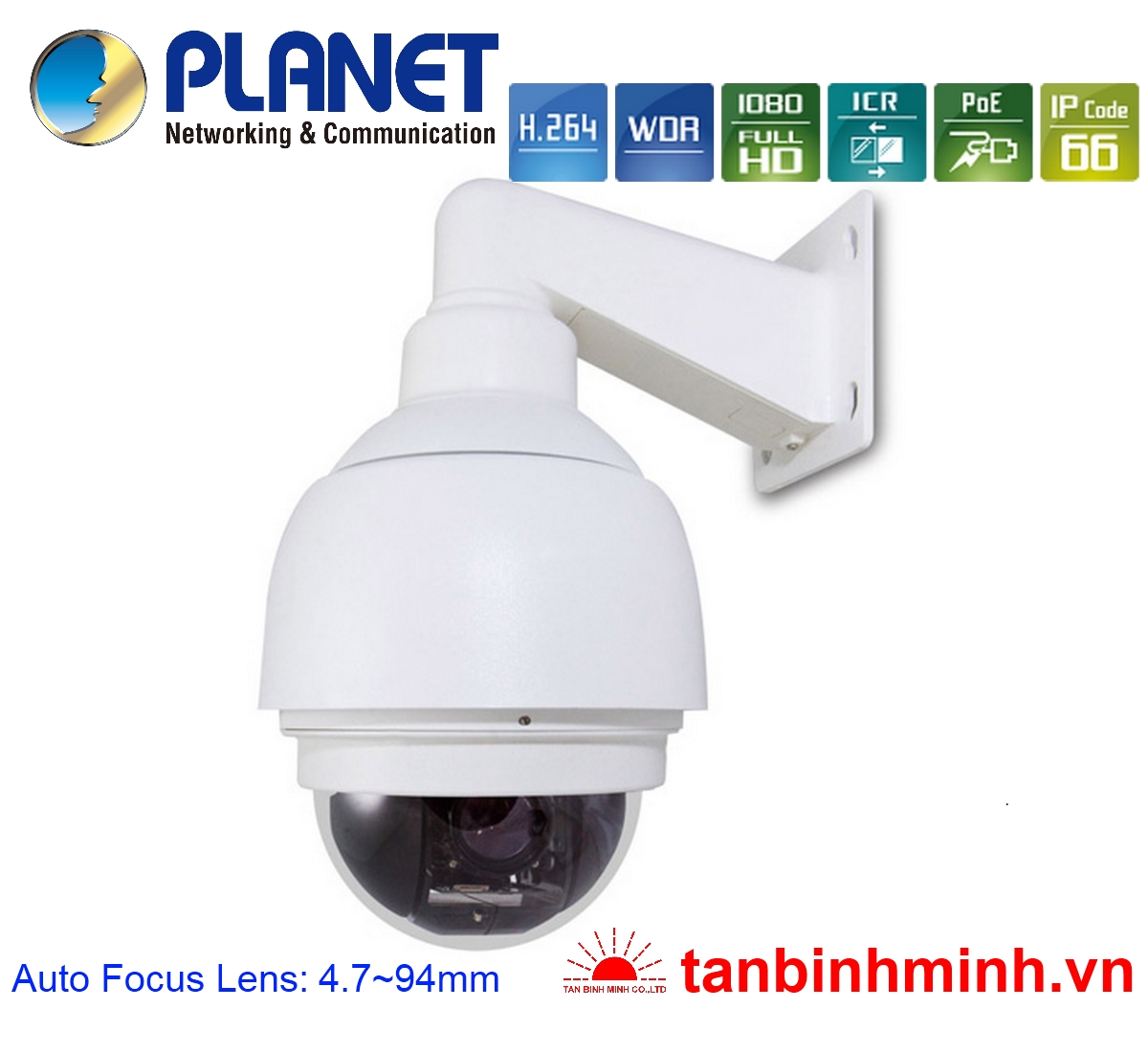

Camera IP Planet ICA-HM620

Model

ICA-HM620

Camera

Image device

1/2.8" Sony Progressive Scan CMOS Sensor

Lens

f = 4.7~94mm, F1.6 Auto/Manual-iris/Focus
Mechanical IR Cut Filter
Angle of view (horizontal x vertical):
H: 5.2 ~ 55.2 Degree
V: 2.4 ~ 42.1 Degree

Min Illumination

0.04 Lux (B/W)
0.3 Lux (color)

Effective Pixels

1920 x 1080 pixels

Pan / Tilt / Zoom

Optical Zoom

20x

Digital Zoom

1~8x variable

Pan Degree

0 ~ 360 Degree continuous panning

Tilt Degree

-10 ~ 190 Degree

Manual Speed

0.5 ~ 90 Degree/sec

Preset Point

256

Preset Accuracy

0.225 Degree

Preset Speed

5~400 Degree/sec

Sequence

8

Auto Pan

4

Camera Cruise

8

Privacy Mask

16

Proportional Pan & Tilt

On / Off (Pan and tilt speed proportional to zoom ratio)

Resume after Power loss

Yes

Zone Title

16

Home Function

Preset, Sequence, Auto pan, Cruise

Auto Flip

Digital / Mechanical / Off

Digital Slow Shutter

On / Off


Video Compression

H.264 / M-JPEG

Video Resolution

1080P / 720P / VGA / D1

Frame Rate

30/25 fps @ 1080P
60/50 fps @ 720P

Image Setting

Auto Electronic Shutter: 1/30 ~ 1/10k sec
Auto White Balance: Auto / Indoor / Outdoor / ATW
AGC: Auto / Manual
3D Digital Noise reduction
WDR
Color, sharpness
Mirror / Flip
Privacy Masks
Text, time and date overlay

Streaming

Simultaneously multi-profile streaming
Streaming over UDP, TCP, or HTTP
Controllable frame rate and bandwidth
Constant and variable bit rate (M-JPEG / H.264)

Audio

Audio Streaming

Two-Way Audio

Audio Compression

G.711 64kbps, G.726 32kbps, ADPCM, AAC

Microphone

External microphone input

Audio Output

Adjustable audio output gain

Network and Configuration

Standard

IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3at PoE Plus

Protocol`

IPv4, IPv6, TCP/IP, UDP, HTTP, HTTPS, SMTP, FTP, NTP, DNS, DDNS, DHCP, ARP, Bonjour, UPnP, RTSP, RTP, RTCP, IGMP, PPPoE, 3GPP, ICMP, Samba

Security

Password protection, IP address filtering, HTTPS encrypted data transmission, user access log

Users

20 clients on-line monitoring at the same time

System Integration

Application Programming Interface

Open API for software integration
ONVIF Compliant

Alarm Triggers

Intelligent video motion detection and external input

Alarm Events

File upload via FTP, Samba to NAS, SD card or email
Notification via email, HTTP, and TCP
External output activation
Audio alerting output
Pre- and post-alarm buffering

General

Power Requirement

AC 24V ± 10% (system & heater)
IEEE 802.3at (system)

Power Consumption

65 W (with heater)

Operating Temperature

-45 ~ 50 Degree C (-49 ~ 122 Degree F)

Operating Humidity

10 ~ 90% (non-condensing)

Weight (includes LENS)

2.32 kg

Dimension (Φ x H)

191.97 x 282.11 mm

Protection Class

IP66 outdoor classification, built-in fan and heater

Emission

CE, FCC

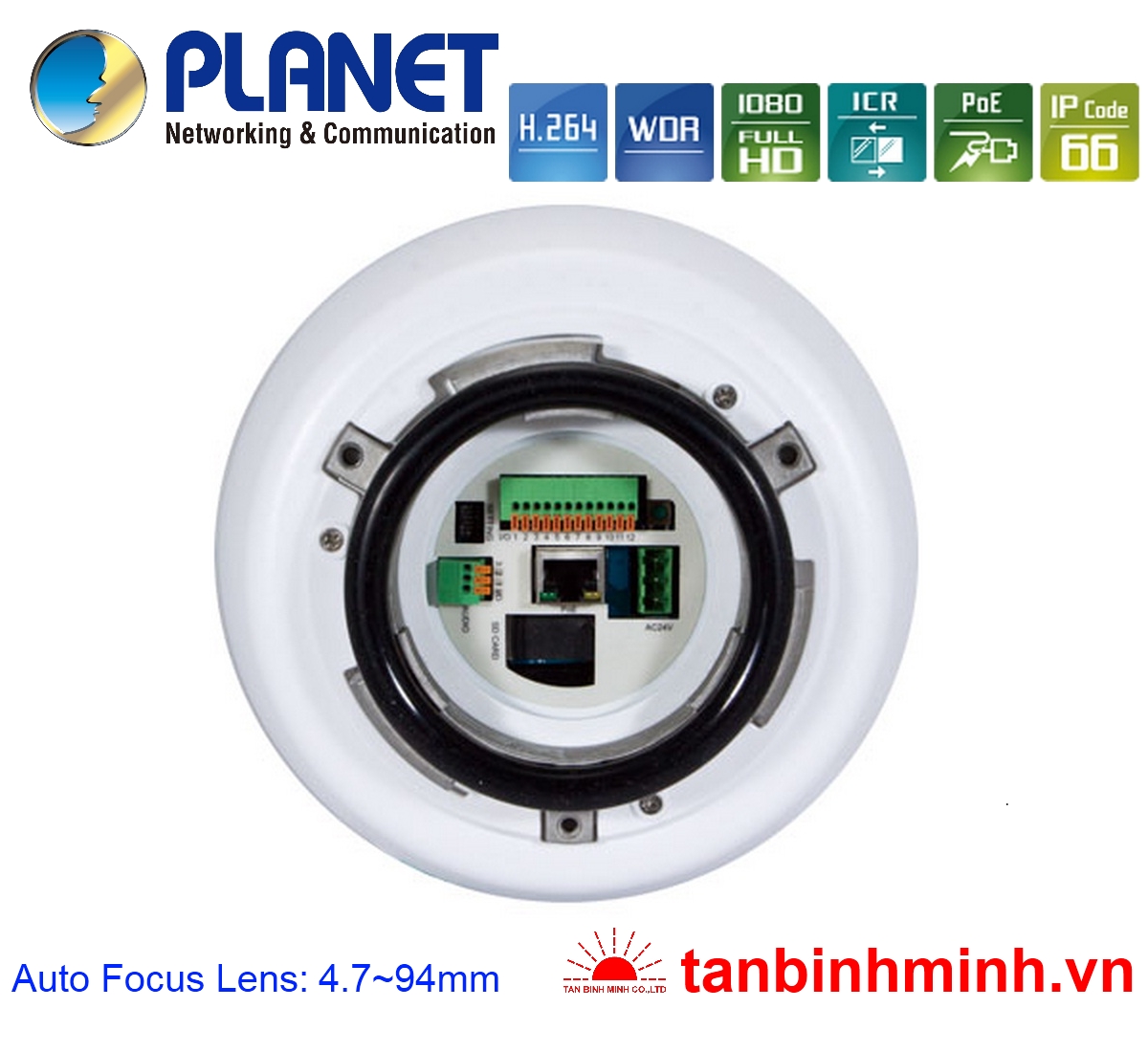

Connectors

10/100Mbps Ethernet, RJ-45
DC power jack
Terminal block for 4 alarm input and 2 output
External MIC input
Audio out
Micro SD/SDHC card (Max 32GB, Class 10)
Factory default reset
