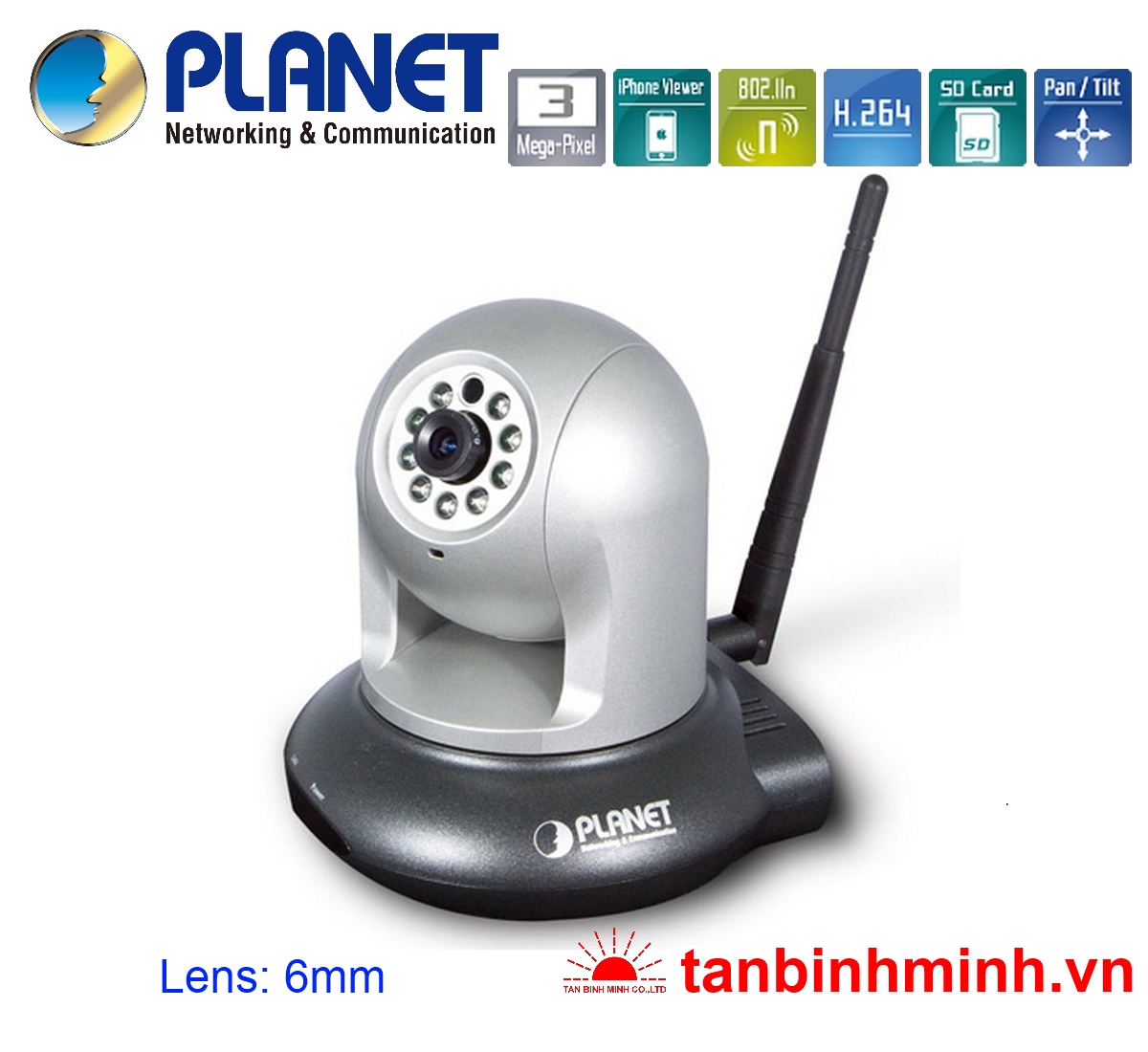

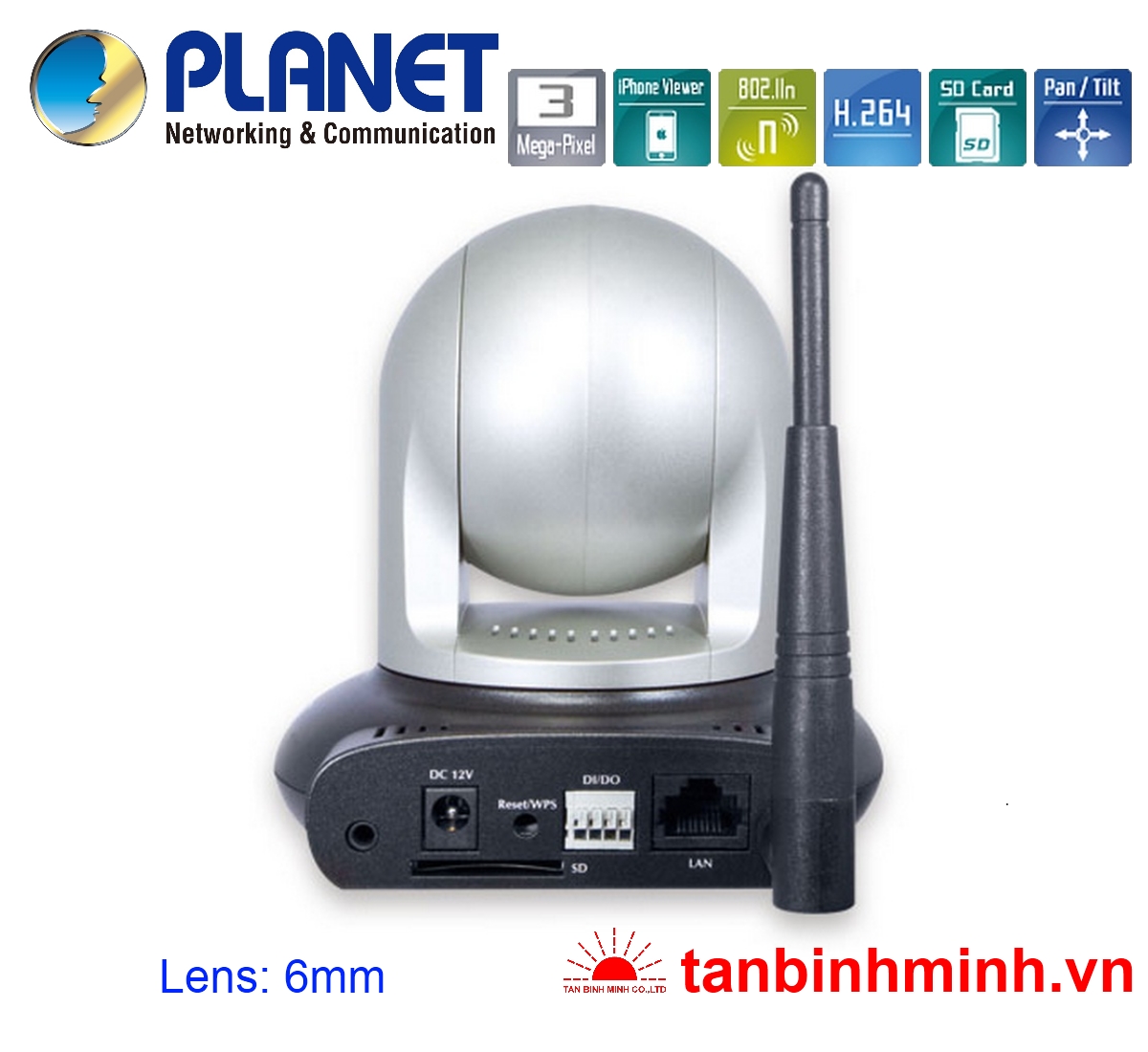

Camera IP Planet ICA-HM227W

Camera IP PTZ

MS : ICA-HM227W
Bảo hành : 12 tháng
Kho hàng : Còn hàng
Hãng sản xuất : Planet
Xuất xứ : Taiwan
Seri sản phẩm :

Số lượng mua

Mua sản phẩm này

SP cùng loại

SP xem nhiều

Camera IP Planet ICA-H652

Camera IP Planet ICA-HM620

Thông số kỹ thuật

Tổng quan

Video

Download

Phụ kiện

Model	ICA-HM227W
Image Sensor
Format	1/2.5" Progressive CMOS
Effective Pixels	2592H x 1944V
Lens
Mount	Board
Focal Length	6mm CS mount Lens
F No.	F 2
Format	1/2"
Angle of View	H: 54 Degree V: 41 Degree
Day / Night Function
IR Distance	10 Meters
IR LED / Wave Length	9pcs. LEDs / 850nm
Low Lux	Color: 1 Lux B/W: 0 Lux @ IR LED on
Audio / Video Specification
Video Compression	H.264 / MPEG4 / M-JPEG
High Resolution mode	H.264@QXGA / 1080P MPEG4@1080P MJPEG@720P
Video Resolution	Wired QXGA (2048 x1536): 20 fps 1080P (1920 x 1080): 30 fps Quad-VGA (1280 x 960): 30 fps 720P (1280 x 720): 30 fps D1 (720 x 480): 30 fps VGA (640 x 480): 30 fps QVGA (320 x 240): 30 fps Wireless QXGA (2048 x 1536) : 5FPS 1080P (1920 x 1080) : 15FPS 720P (1280 x 720) : 30FPS VGA (640 x 480) : 30FPS QVGA (320 x 240) : 30FPS
Multi-stream mode	H.264@720P/D1/VGA/QVGA MPEG4@720P/D1/VGA/QVGA MJPEG@720P/D1/VGA/QVGA
Codec Quality Options	H.264: 5 Levels or Bit Rate MPEG4: 5 Levels or Bit Rate MJPEG: 5 Levels
Network Interface
Network Interface	1 x 10/100Base-TX / RJ45
Network Standard	IEEE 802.3 / IEEE 802.3u
Network Protocol	TCP/IP, IPv6, IPv4, UDP, ICMP, DHCP, NTP, DNS, DDNS, SMTP, FTP, HTTP, HTTPs, Samba, PPPoE, UPnP, Bonjour, RTP, RTSP, RTCP,
Wireless Network
Wireless Standard	IEEE 802.11b / 802.11g / 802.11n
Wireless Data Rate	802.11n (20MHz) : up to 72Mbps 802.11n (40MHz) : up to 150Mbps 802.11g: 6, 9, 12, 24, 36, 48, 54Mbps 802.11b: 1, 2, 5.5, 11Mbps
Frequency	2.4GHz - 2.4835GHz
Wireless Channels	America / FCC: 2.414~2.462GHz (11 Channels) Europe / ETSI: 2.412~2.472GHz (13 Channels) Japan / TELEC: 2.412~2.484GHz (14 Channels)
RF Chain	1T1R mode
RF Modulation	802.11n: OFDM with BPSK, QPSK, 16-QAM, 64QAM 802.11g: OFDM with BPSK, QPSK, 16-QAM, 64QAM 802.11b: DSSS with BPSK, QPSK, CCK
Wireless Encryption	WEP 64/128-bit, WPA-PSK, WPA2-PSK, WPA2 TKIP/AES, WPS
Operating Mode	Infrastructure, Ad-Hoc Mode
Output Power	802.11n mode: 14dBm±1.5dBm 802.11g mode: 14dBm±1.5dBm 802.11b mode: 17dBm±1.5dBm
Receiver Sensitivity	802.11n (40MHz): -61dBm 802.11n (20MHz): -66dBm 802.11g (54Mbps): -72dBm 802.11b (11Mbps): -88dBm
Wireless Operating Range	Open Space: 100 ~ 300m Indoor: 35 ~ 100m
Wireless Power Impedance	802.11n -- Peak Output Power: 15.7dBm @ Nominal Temp Range 802.11g -- Peak Output Power: 15.5dBm @ Nominal Temp Range 802.11b -- Peak Output Power: 18dBm @ Nominal Temp Range
Special Features
Digital Zoom	10x
3GPP Supported	Yes
IP Filter	Yes
QoS	Yes
Time	Manual Time Setting, Time Server & NTP Support, Real Time Clock
Event Management	Events Triggered by Motion Detection or GPIO Image or Video Upload / Send over email, FTP, samba Recording Video file to SD Card by schedule
Hardware Section
Angle of Pan	0~350 ± 5 Degree
Angle of Tilt	0~120 ± 5 Degree
Local Storage	SD / SDHC Slot, max. 32GB
Audio Support	2-Way
Alarm Input / output	2 x D/I, 1 x D/O
LED Indicators	Power & Ethernet (1 x Power ,1 x Network Active)
Reset / WPS	1 x Push button
Power Supply	DC12V / 2A
Antenna Type	1 x 3 dBi (Max) Dual detachable diversity antenna
Antenna Connector	Reversed Polarity SMA Male
Environment
Dimension (W x D x H)	116 x 108 x 122 mm
Operating Temperature	0 ~ 50 Degree C
Operating Humidity	20 ~ 85% RH
Viewing System
OS	Windows® XP, 2000 / 2003 / 2008 server, Vista, Win 7
Browser	IE 6.0 or latter
Search & Installation	PLANET IPFinder
Monitor / Recording / Management	PLANET CV3P (4-Ch Cam Viewer 3 Pro Trial Version) PLANET CV3L (64-Ch Cam Viewer 3 Lite Bundle Version)
