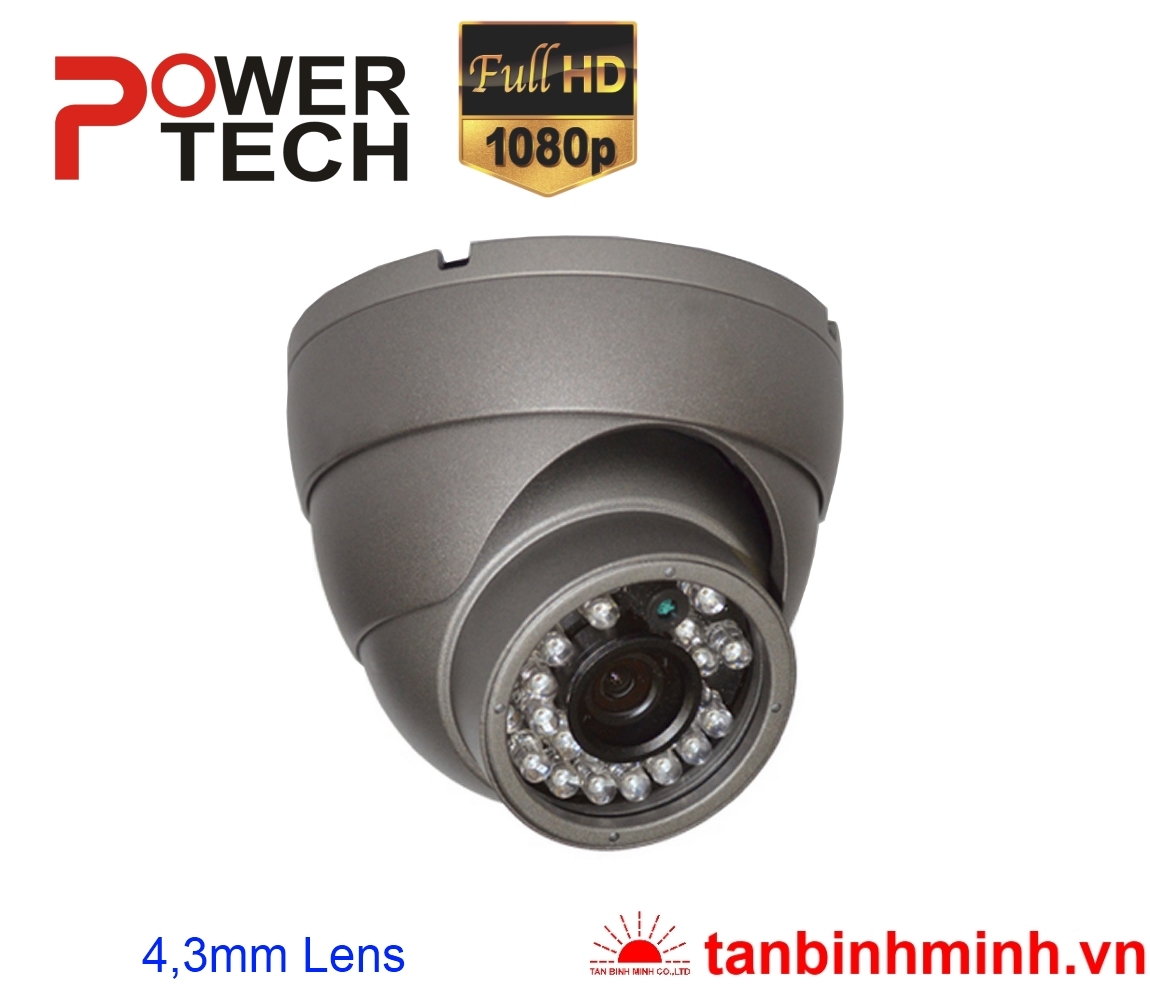

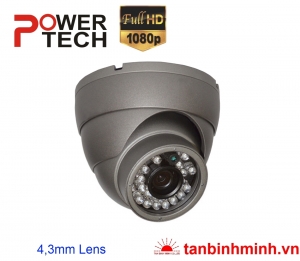

Camera Powertech HIB1 7225

Model

HIB1 7225

Resolution

HD-SDI(1080P 30P) / 1000 TV LINE OVER

Sensor

1/2.9" inch SONY CMOS

Total Pixels

2010(H) x 1108(V) = 2,227,080

Effective Pixels

1944(H) x 1092(V) = 2,122,648

Scanning System

PROGRESSIVE

S/N (Y signal)

Video Output

More than 52 dB (AGC Off)

SMPTE292M (HD-SDI) / (CVBS: 1.0Vp-p (75ohm) : Option)

Min.Illumination

0 Lux at IR On

White Balance

AUTO

Electronic shutter speed

AUTO (1/30sec ~ 1/60,000sec)

BRIGHTNESS

ADJUSTABLE (0 ~ 20 STEP)

DNR

HIGH

Day & Night

EXTERN

Smart IR

ON

Operating Temperature/Humidity

-10'C~+50'C / 30%~80% RH

Storage Temperature/Humidity

-20'C~+60'C / 20%~90% RH

Power

DC12V Only

signal Transmission

The distant difference is occurred according to cable option and other circumstances. (based on RG59: 100M)

Lens

Fixed 4.3mm
