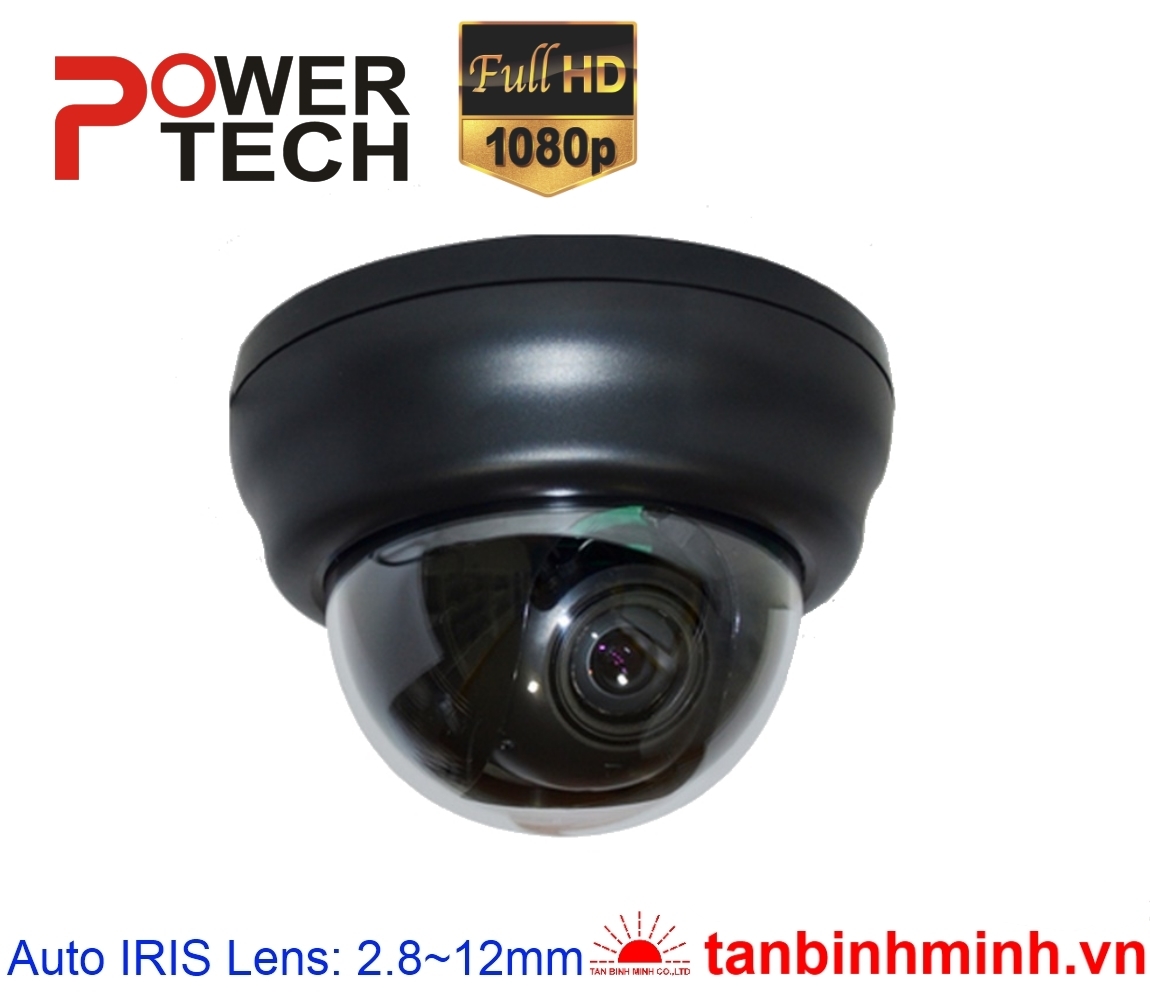

Camera Powertech HDO3 722V

Model

HDO3 722V

Resolution

HD-SDI(1080P 720P) / 1000 TV LINE OVER

Sensor

1/2.9 inch SONY CMOS

Total Pixels

2000(H) x 1241(V) = 2,482,000

Effective Pixels

1944(H) x 1092(V) = 2,122,648

Scanning System

PROGRESSIVE

S/N (Y signal)

More than 52 dB (AGC Off)

Video Output

SMPTE292M (HD-SDI) / (CVBS: 1.0Vp-p (75ohm) : Option)

Min.Illumination

0 Lux at IR On

White Balance

AUTO / AUTO EXT / PRESET / MANUAL

Electronic shutter speed

AUTO / MANUAL (1/30sec ~ 1/60,000sec)

BRIGHTNESS

ADJUSTABLE (0 ~ 20 STEP)

SENS_UP

OFF / X2 / X3 / X4

DNR

OFF / LOW / MIDDLE / HIGH

WDR / BLC

OFF / WDR / BLC

HLM

OFF / SET

ACE

OFF / ON

Day & Night

AUTO (Day <--> Night TIME Change) / COLOR / B/W / EXTERN / MDIR

PRIVACY

OFF / ON (32 Zone)

Motion Detection

OFF / ON

D.ZOOM

0 ~ X127

FLIP

OFF / ON

FREEZE

OFF / ON

Image Conversion

OFF / ON

SHARPNESS

ADJUSTABLE (0 ~ 10 STEP)

COMM.

RS-485(PELCO-D)

Operating Temperature/Humidity

-10'C~+50'C / 30%~80% RH

Storage Temperature/Humidity

-20'C~+60'C / 20%~90% RH

Power

DC12V

signal Transmission

The distant difference is occurred according to cable option and other circumstances. (based on RG59: 100M)

Lens

DC Auto IRIS V/F 2.8~12mm
