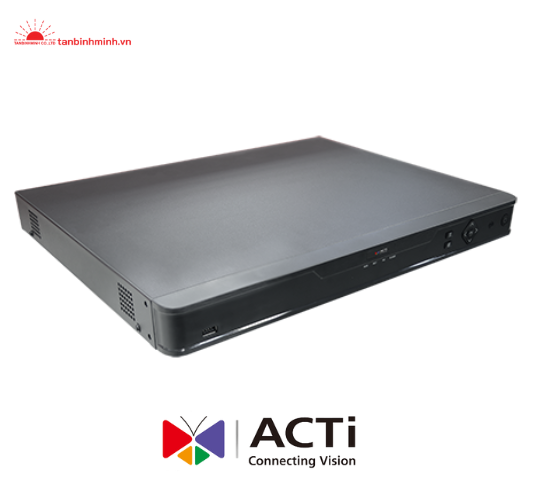

Đầu ghi hình 16 kênh PoE ZNR-221P

NVR ACTi 16 kênh

  • MS : ZNR-221P
  • Bảo hành :
  • Kho hàng :
  • Hãng sản xuất : ACTi
  • Xuất xứ : TAIWAN
  • Seri sản phẩm :

Số lượng mua
Thông số kỹ thuật
Tổng quan
Video
Download
Phụ kiện



Product Type Standalone NVR
Maximum Resolution 8MP
Maximum Number of Video Devices 16
Maximum Number of Clients Local: 1, Remote: 2
Supported Screen Resolution HDMI: 3840x2160 (30Hz), 1920x1080 (60Hz/50Hz), 1600x1200 (60Hz), 1280x1024 (60Hz), 1280x720 (60Hz), 1024x768 (60Hz)
VGA: 1920x1080 (60Hz/50Hz), 1280x1024 (60Hz), 1280x720 (60Hz), 1024x768 (60Hz)

Hardware



License


License required No
Free License 16

Live View


Display Layout Mode 1, 4, 6, 8, 9, 10,13,16
Local Live View performance 2ch (up to 30 fps at 4K 3840 x 2160)
4ch (up to 30 fps at 4MP)
5ch (up to 30 fps at 3MP)
8ch (up to 30 fps at 2MP 1920 x 1080)
16ch (up to 30 fps at 720p)
Digital Zoom Yes

PTZ


PTZ Control PTZ Control, Speed Control

Video


Compression H.265, H.264
Text Overlay Yes

Audio


Audio Type 2-way, Line-in, Line-out

Network


Ethernet Port Total ports: 17 port(s)
Non-PoE: 1 port(s), Ethernet (10/100/1000 Base-T), RJ-45 connector
PoE: 16 port(s), Ethernet (10/100 Base-T), RJ-45 connector

Recording


Scheduled Recording Yes
Event Recording Yes
Manual Recording Yes
Maximum Recording Throughput 160 Mbps

Search & Playback


Playback Control Continuous forward and backward playback with speeds 1x/2x/4x/8x/16x, pause, stop, frame-by-frame
Synchronized Playback 16 channels
Video Export MP4

System


Permission control 128 Remote users, Customizable permissions for user groups
Client PC Operating System Windows 7, Windows 8, Windows 10
Server Operating System Embedded Linux
USB 1-Port USB 3.0

Integration


ONVIF Compliant Yes
Web Browser IE 10 or newer

Storage


Storage Bay SATA, Max. 2 Disk(s)
HDD Size 3.5"
Maximum Recording Capacity 10TB x2
RAID Level No

Interface


Audio Interface 1/1, RCA Jack
Digital Input/Output 4/1 (Terminal block)
Local Access USB keyboard & mouse
Local Display Interface HDMI x 1, VGA x 1


General


PoE Output Maximum 30 Watts per port
PoE Power Budget Maximum 240 W
Power Source AC 100-240V
Power Consumption 10 W (AC, without HDD)
Weight 2600g (5.29lb)
Dimensions (W x H x D): 380mm x 53mm x 315mm (15" x 2.1" x 12.4")
Bundled Accessories Power cord, USB Mouse
Fan Yes
Operating Temperature -10°C ~ 50°C (14°F ~ 122°F)
Operating Humidity 10% - 90% RH
Remote Access Web Client
Color Black
Material Iron
Warranty 2 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty

Dimension Diagram

Unit: mm [inch]
