CHI TIẾT SẢN PHẨM

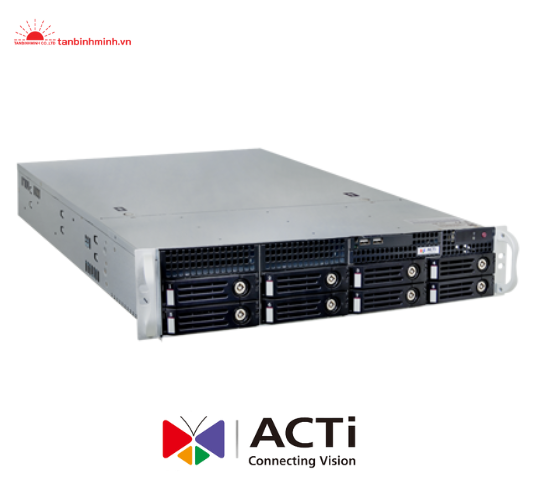

Đầu ghi hình 128 kênh IRN-406

NVR ACTi 128 kênh

  • MS : IRN-406
  • Bảo hành :
  • Kho hàng :
  • Hãng sản xuất : ACTi
  • Xuất xứ : TAIWAN
  • Seri sản phẩm :

Số lượng mua
Thông số kỹ thuật
Tổng quan
Video
Download
Phụ kiện



Product Type Standalone NVR
Maximum Resolution Support all ACTi cameras in all resolutions
Maximum Number of Video Devices 128
Maximum Number of POS devices 128 (requires additional license)
Maximum Number of Access Control and Network I/O devices 128 (requires additional license)
Maximum Number of Clients Local: 1, Remote: 5

Hardware


CPU Intel Core i7-7700
RAM 16GB, DDR4, 2666MT/s

License


License required Yes
Free License 64 (64 channels for ACTi and 1 channel for third-party video device)

Live View


Display Layout Mode Local:1, 3, 4, 5, 6, 8, 9, 10, 12, 16, Remote:1, 3, 4, 5, 6, 8, 9, 10, 12, 16, 18, 24, 25, 35, 36, 48, 49, 64, Custom
Fisheye Dewarping Yes
Local Live View performance Please check "Standalone NVR Performance Validator" (http://www.acti.com/SANVRPerformance)
Digital Zoom Yes
Event Status Display event status upon alarm or upon connection loss or recovery between server and client or when the allocated disk space is full
Instant Playback Instant Playback in live view window
Embedded websites in Live View Display and connect to pre-configured embedded website

Map


e-Map Yes
Google Map Yes
Layout Area maps with camera icons, small live view windows, hyperlinked
Setup e-Map image upload, Google maps settings and preset management, camera positioning, vision angle and pointed direction of camera, view positioning, source positioning, extended devices for Point-of-sale (POS), Access Control, Network I/O, Car Park
PTZ Mode Mouse PTZ mode to control e-Map video streams

PTZ


PTZ Control PTZ Control, Speed Control, 32 preset points

Video


Compression H.265, H.264, MPEG-4, MJPEG
Built-in Analytics Visual Tracking

Audio


Audio Type 2-way, Mic-in, Line-out

Network


Network Protocol & Service IPv4/v6, TCP, UDP, DHCP Client, HTTP, DNS, NTP, RTP, RTSP, SMTP, FTP, ICMP, ARP, UPnP, LDAP (client), iSCSi
Ethernet Port 2 x Ethernet (1000 Base-T), RJ-45 connector

Recording


Scheduled Recording Yes
Event Recording Yes
Manual Recording Yes
Event Speed-up Recording Yes
Dual Stream Management Yes
Maximum Recording Throughput 340 Mbps

Search & Playback


Playback Control Continuous forward and backward playback with speeds 1x/2x/4x/8x/16x or frame-by-frame, pause, stop
Synchronized Playback 9 channels (Local), 64 channels (Remote)
Recording Search Search video recordings by time, events, channels, bookmarks, notifications and listed as clickable time-based thumbnails for full-size view and snapshot download
Smart Search Smart search of recorded video by Motion Detection and Tamper
Video Export RAW, AVI, EXE

Event


Video Push Support Video Push from ACTi Mobile Client devices
Event Trigger [NVR]: Disk full, Disk not found, Disk is available, Schedule service start and stop, Video Push start and stop, CPU limit exceeded.

[Video Device]: Video motion detection, Passive IR sensor, External device through digital input, Sound detection, Intelligent event detection, RFID detection, Video Push start and stop, Video loss, Video Recovery, Network loss and recovery.

[Extended Device]: Point-of-sale (POS) status, Network I/O status, Access Control status, Car park status
Event Response Pop-up window with live video and event confirmation activation, Switch to hotspot window, Switch to customize view, Command a PTZ device to go to a preset point, Play alert sound, Activate external device through digital output, Execute system command to activate other programs, Upload video or snapshot to FTP server, E-mail notification with snapshots, Push notification

Redundancy Server


Redundancy Service Yes, N-to-N, N+1 (With limited functions when NVR 3 server acts as Redundancy server)

System


Permission control Unlimited number of users, Active Directory, Customizable permissions for user groups, Account lockout, Automatic logout after idle, Playback password protected, Password validity period
Client PC Operating System Windows 7 SP1, Windows 8.1, Windows 10, Windows Server 2008 R2 SP1, Windows Server 2012 R2, Windows Server 2016
Server Operating System Windows 10 IoT
Mobile Client Program Mobile device application (ACTi Mobile Client) supports Live View, PTZ Control, Video Push, Event/time based search and playback, Supported device(s) iOS, Android device
USB 4-Port USB 2.0, 4-Port USB 3.0
Language Multi-Language

Integration


Unified Solution Fully compatible with ACTi cameras, encoders, central management system, TV wall and intelligent video surveillance software
GPS Position Manual setting
ONVIF Compliant Yes, Profile S (contains the officially ONVIF conformant software NVR 3 Corporate)
Web Browser IE 11 (Please verify that your computer meets the minimum system requirements for Internet Explorer from Microsoft website.)
Third-party Integration Point of Sale (POS), Access Control, Network I/O, Parking Management Station (PMS), (Various optional integrations requiring additional license)

Storage


Supported Storage Technology NAS, SAN
System Drive SSD, 256GB
Hot Swappable Drive Yes
Storage Bay SATA, Max. 8 Disk(s) (without storage disks)
HDD Size 3.5"
Maximum Recording Capacity 14TB x8
RAID Level Hardware RAID 0, 1, 5, 6, 10, 50, 60
Supported Storage Video Recording: SATA disk, iSCSI
Export: iSCSI, USB

Interface


Serial Port 1 x RS-232
External Storage Interface iSCSI, USB
Expansion Slots Available 1 x PCIe 3.0 (x16)
3 x PCIe 3.0 (x1)
Local Access USB joystick, keyboard & mouse
Local Display Interface HDMI x 1, DVI x 1, Display Port x 1


General


Power Source AC 100-240V
Power Supply 500W
Weight 11300g (24.912lb)
Dimensions (W x H x D): 482.6mm x 88mm x 560.2mm (19" x 3.47" x 22.06")
Rack Space: 2U
Bundled Accessories Rackmount rails, Power cord
Mount Type Rack mounts
Fan Yes
Operating Temperature 10°C ~ 35°C (50°F ~ 95°F)
Operating Humidity 8% - 90% RH
Remote Access Workstation, Web Client, Mobile Client
Approvals CE, FCC
Color Silver
Warranty 3 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty
