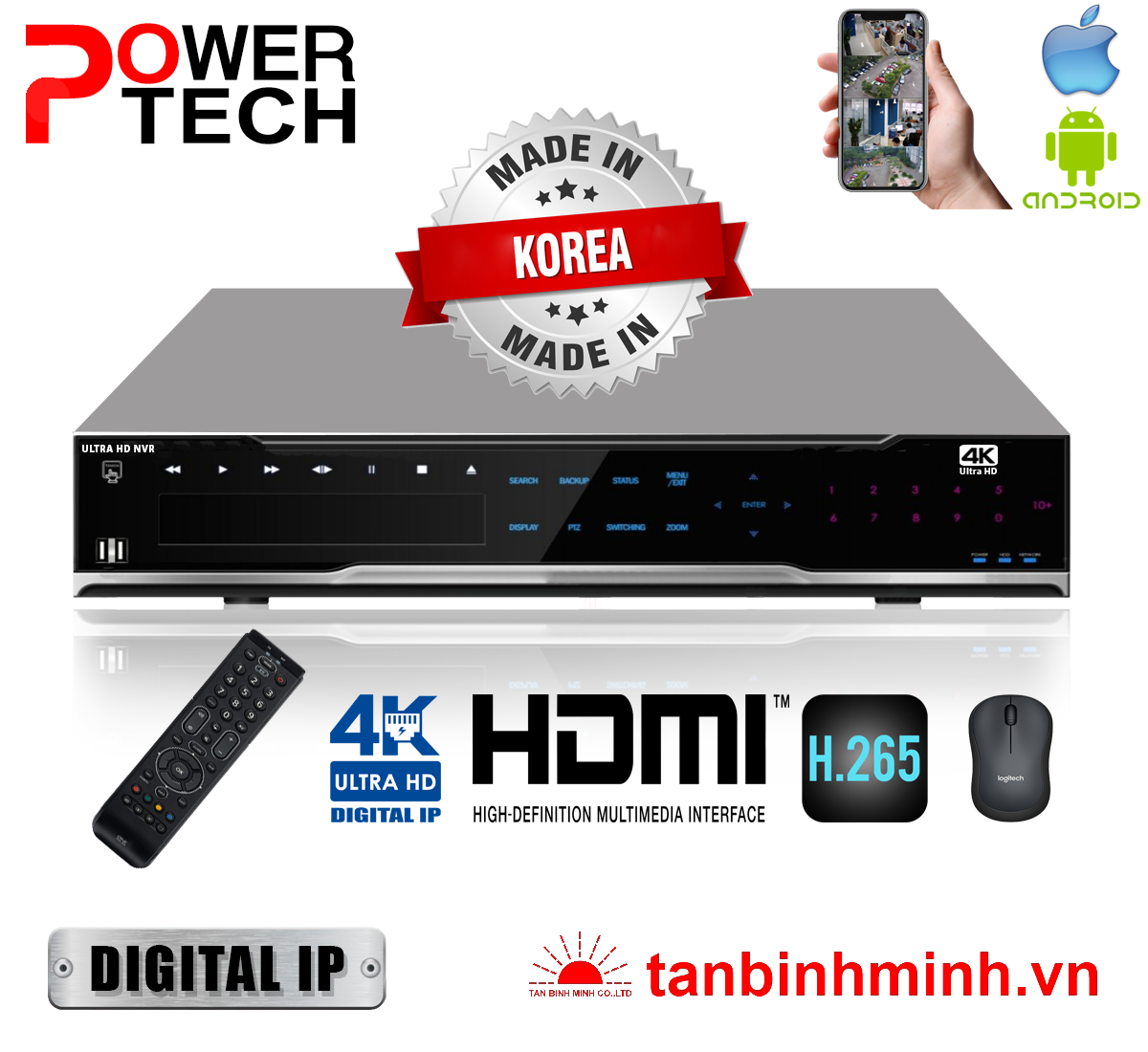

Đầu ghi hình 32 kênh 4K PoE IPM32R32P


  • MS : IPM32R32P
  • Bảo hành : 12 Tháng
  • Kho hàng : Còn hàng
  • Hãng sản xuất : POWERTECH
  • Xuất xứ : Korea
  • Seri sản phẩm : Updating...

Số lượng mua
Thông số kỹ thuật
Tổng quan
Phụ kiện
Model i-Primero Series
    i-Primero 32R 32P
Video Camera input     32 POE + 1 RJ45
IP Camera Spec ONVIF 1812, RTSP, H.264, H.265,
dual stream
Num 32
Resolution upto 8M
Output 1 HDMI (Main Display or Programmable HD Spot)
1 VGA (Main Display or Programmable HD Spot)
1 Composite (Programmable SPOT)
Audio Audio input 2 RCA
Output 1 RCA
Sensor In 16 (NC, NO selectable)
Alarm out 2 Relay, 14 TTL
Operating System Embedded Linux OS
Display Speed Real Time
Resolution (Pixel) 1280X1024, 1280X720, 1920X1080, 3840x2160(UHD, HDMI only)
Split screen 1,4,6,8,9,13,16,20,25,32
CODEC H.264, H.265
Resolution (Pixel) / fps main: upto 8MP @ 30
dual: upto 960x540
Total Bitrate 200Mbps
Channel Bitrate 6.25 Mbps
Playback Display 1,4,6,8,9,13,16,20,25,32
Search mode Calendar, Event ,POS , Panorama, Thumbnail, Bookmark
Fast/Slow speed Normal, REW & FF [recorded speed 2x, 4x, 8x, 16x, 32x, 64x, 1/2x , 1/4x], Frame to frame, Pause
Network Network Interface Gigabit Ethernet
Application Windows 7 / 8 / 10 (PC Client system& IE)/MAC
Web Browser Internet Explorer, Safari
Smart phone App Android, iPhone for live and search
Backup Backup device External HDD and CD/DVD-RW, Network, Thumb Drive
The number of HDD 8 SATA + 1 eSATA(upto 8 bays, No capacity limit ; 10TB or more)
Function · Full GUI with alpha blending
· Individual setting of resolution, frame rates and picture quality
· Instant Replay
· Digital Zoom
· Mouse Control
· Weekly scheduler with holiday by 10 minutes setting
· Covert, Disable and Private function of cameras
· Motion Detection with 576 area setting
· Relay alarm output
· PTZ control by RS-485
· Daylight Saving Time and Network Time Setting
· Multi User Authority
· Deinterlacer upon live and playback
· Multi languages with full graphic
· Individual Network port setting
· Auto Deletion
· Import and Export the configuration
· Interactive setup via network
· POS Interface
Others Power Consumption 280W (SMPS)
Operating Temperature 0~40°C(32~104°F)
Relative Humidity Maximum 80% non-condensing
Dimension 430(W)×420(D)×88(H) mm
