CHI TIẾT SẢN PHẨM

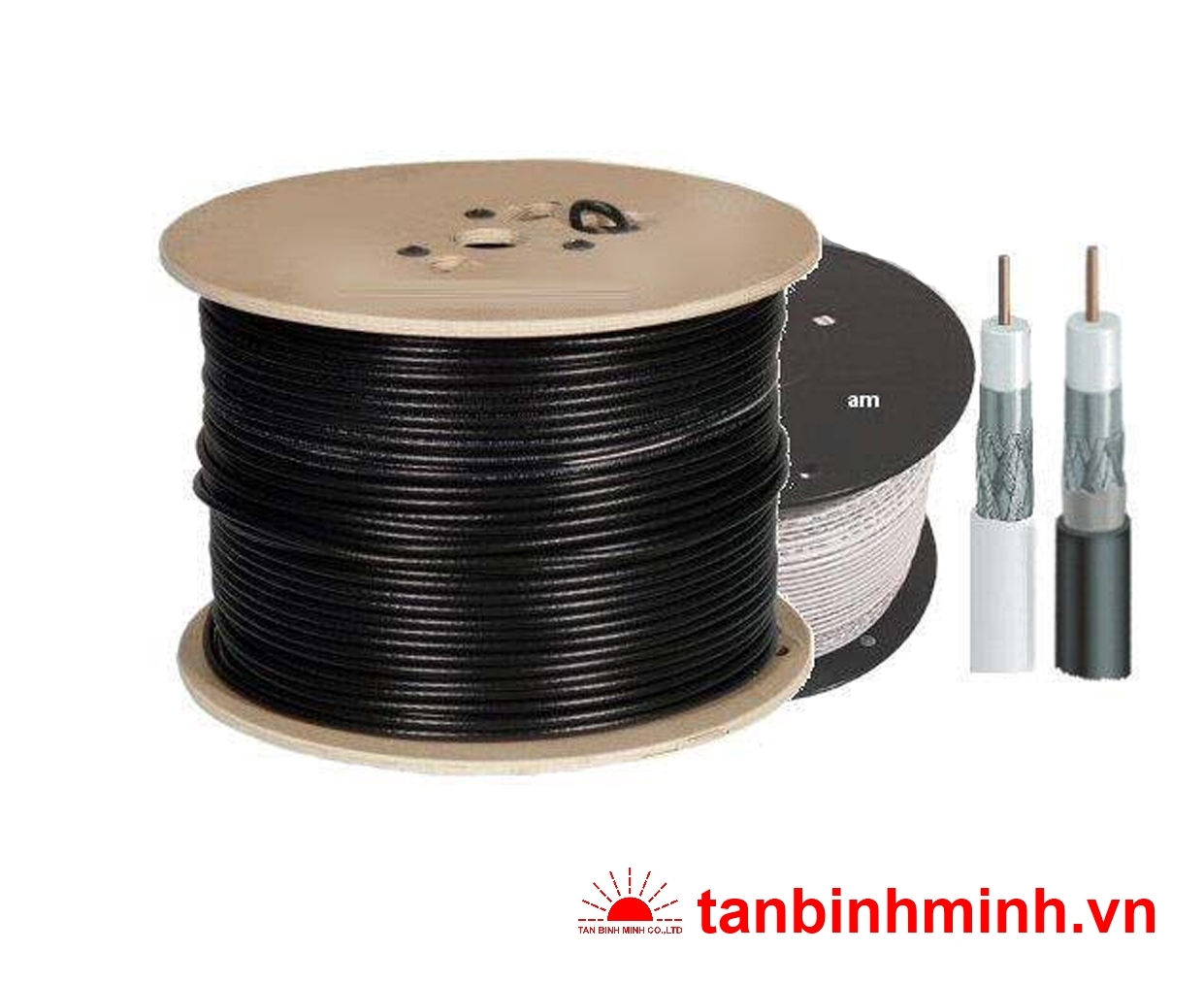

Cáp đồng trục 5C

Dây cáp các loại

  • MS : 5C Cable
  • Bảo hành :
  • Kho hàng : Còn hàng
  • Hãng sản xuất :
  • Xuất xứ : Korea
  • Seri sản phẩm :

Số lượng mua
Thông số kỹ thuật
Tổng quan
Video
Download
Phụ kiện

Model

5C Cable

Product Name

5C- 75 Ohm Coaxial Cable

Product Description

Bonded Laminated Aluminium Tape, 60% Braid, PVC  Jacket

Center Conductor

18 AWG Copper-Clad Steel
 Nominal Diameter: 0.040" (1.02mm)

Dielectric

Gas Expanded Polyethylene
Nominal Diameter over Dielectric: 0.180" (4.57mm)

Shield

1 st Shield: Aluminium Laminated Tape Bonded to the Dielectric
Nominal Diameter over Tape: 0.187" (4.75mm)
2 nd Shield: 34 AWG Aluminium Braid Wire60% Coverage

Jacket

PVC Jacket
Nominal Diameter over Jacket: 0.272" (6.91mm)
Nominal Jacket Thickness: 0.030" (0.76mm)

Electrical Propertie

Impedance: 75.0 +/- 3.0 Ohm
Velocity of Propagation: 85.0% Nominal
