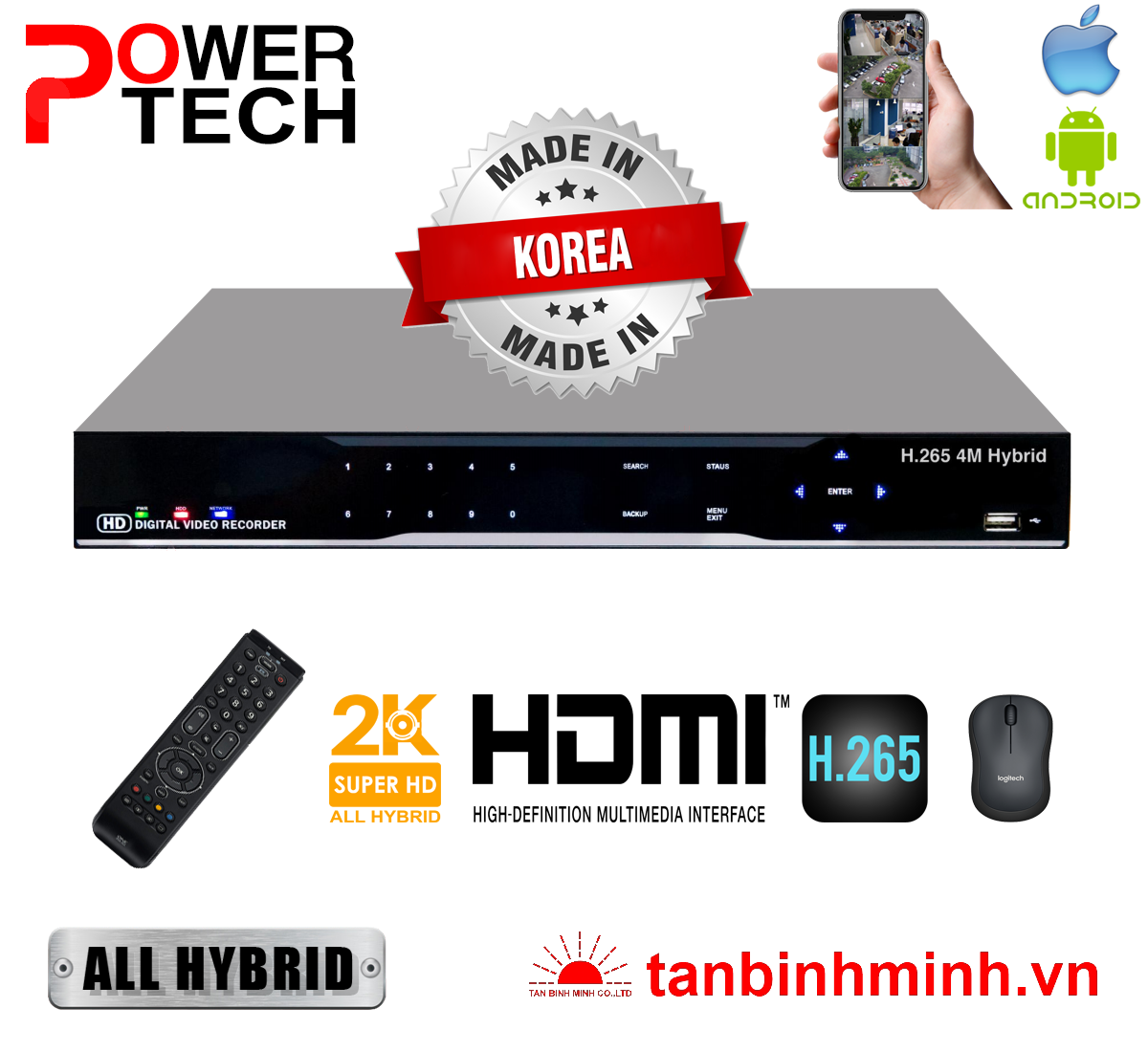

Đầu ghi hình 04 kênh 4M XST04W265

DVR 4 kênh

  • MS : XST04W265
  • Bảo hành : 12 Tháng
  • Kho hàng : Còn hàng
  • Hãng sản xuất : POWERTECH
  • Xuất xứ : Korea
  • Seri sản phẩm : Updating...

Số lượng mua
Thông số kỹ thuật
Tổng quan
Video
Download
Phụ kiện
Model X-Standard 265
X-Standard
04W 265
x x
Video Camera input 4 BNC x x
Individual HD/Analog selectable Analog, HD-SDI, EX-SDI, AHD, TVI, CVI, IP
Available source HD-SDI/EX-SDI - upto 4M
TVI/AHD/CVI/Analog - upto 5M
(only 1ch support 8M 15 fps)
x
IP Camera Spec ONVIF 2.3, RTSP, H.264, H.265 dual stream
use gigabit ethnet hub
Num 4 x x
Resolution upto 5M x
Restriction Cannot setup Private ZONE
Cannot support Timestamp
Output 1 HDMI (Main Display)
1 VGA (Main Display)
1 Composite (Programmable SPOT)
x
Audio Audio input 4 RCA
Output 1 RCA
Sensor In 4 (NC, NO selectable) x x
Alarm out 2 relay, 2 TTL
Operating System Embedded Linux OS
Display Speed Real Time
Resolution (Pixel) 1280X1024, 1280X720, 1920X1080, 2560x1440(4M), 3840x2160(UHD, Main HDMI only)
Split screen 1,4 x x
Main Recording CODEC H.265
Resolution (Pixel) 8MP or 1080p @8MP input
2,3,4,5MP or 720p @ 2,3,4,5MP input
720p or 960x540 @ 720p input
960H or D1 @ Composite, 960H input
Picture quality 4 steps (Super, High, Medium, Low)
Speed 60fps @ 4MP x x
Dual Recording CODEC H.265
Resolution (Pixel) x x x
Playback Display 1,4 x x
Search mode Calendar, Event ,POS , Panorama, Thumbnail, Bookmark
Speed 60fps @ 4MP x x
Fast/Slow speed Normal, REW & FF [recorded speed 2x, 4x, 8x, 16x, 32x, 64x, 1/2x, 1/4x], Frame to frame, Pause
Network
(Individual
setting of
resolution,
frame rates and
picture quality)
Network Interface Megabit Ethernet x
High Resolution (Pixel) same as Main Recording
Low Resolution (Pixel) 640x352 @ 2,3,4,5,8MP, 720p
CIF @ 960H, Composite
Speed 40fps @ 1080p x x
Protocol TCP/IP, HTTP, DHCP
Application Windows 7 / 8 / 10 (PC Client system& IE)/MAC
Web Browser Internet Explorer, Safari
Smart phone App Android, iPhone for live and search
Backup Interface USB 2.0 X 2
Backup device External HDD, CD&DVD-RW, Network, Thumb Drive
The number of HDD 2 SATA or 1 SATA + 1 ESATA
(No capacity limit ; 10TB of more)
x
Function · Full GUI with alpha blending
· Individual setting of resolution, frame rates and picture quality
· Instant Replay
· Digital Zoom
· Mouse Control
· Weekly scheduler with holiday by 10 minutes setting
· Covert, Disable and Private function of cameras
· Motion Detection with 576 area setting
· Relay alarm output
· PTZ control by RS-485
· Daylight Saving Time and Network Time Setting
· Multi User Authority up to 15 Users
· Deinterlacer upon live and playback
· 22 languages with full graphic
· Individual Network port setting
· Auto Deletion
· Import and Export the configuration
· Interactive setup via network
· POS Interface
· Mirroring
· Dual CODEC engine for independent video transmission
Others Power Consumption 60W
Operating Temperature 0~40°C(32~104°F)
Relative Humidity Maximum 80% non-condensing
Dimension 380(W)×340(D)×50(H) mm
