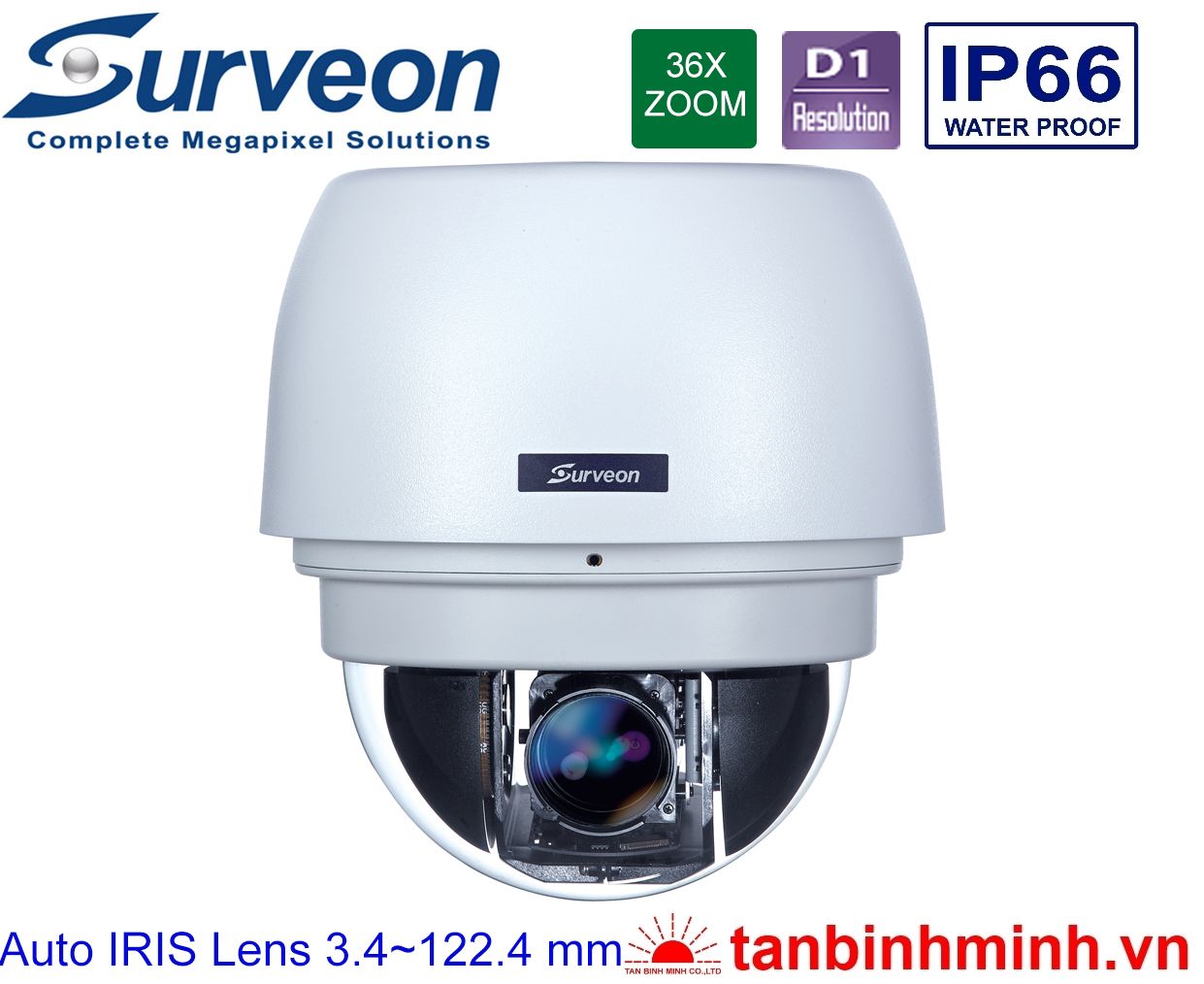

Camera IP PTZ Surveon CAM6181

Model

CAM6181

Image Sensor

1/4" D1 Sony CCD

Lens

3.4 - 122.4 mm autofocus lens, F1.6 (wide) - F4.5 (tele)

SNR

50dB

WDR

Yes

Day/Night ICR

Yes

IR LED

N/A

Min. Illumination

0.001 Lux @ F1.6 (B/W)
0.01 Lux @ F1.6 (Color)

Iris Control

Automatic / Manual IRIS control

Shutter Time

1/1 ~ 1/10,000 s

Viewing Angle

Diagonal: 68.6°~2.23°
Horizontal: 57.8°~1.70°
Vertical: 43.7°~1.30°

Camera Angle
Adjustment

Pan: 360° endless, 5°–400°/s
Tilt: -10° ~ +190°, 5°–400°/s

Pan/Tilt/Zoom
Functionalities

1. 180° Horizontal Instant Flip
2. 256 preset positions
3. Preset position auto scanning
4. 36x optical zoom and 12x digital zoom, total 432x

Video Compression

H.264/MJPEG

Resolution

Up to 720 x 480
650 TV Lines

Frame Rate

30 fps at D1 (720 x 480)
30 fps at QVGA (352 x 240)

Video Stream

Dual stream at H.264 and MJPEG simulataneously

Bit Rate

64K ~ 10Mbps, VBR, CBR, controller frame rate and quality

Video Control

AGC (Auto Gain Control), AWB (Auto White Balance), AES (Auto Electronic Shutter), BLC (Back Light Compensation), WDR, image adjustment

Intelligent Video

Motion detection

Video Jack

N/A

Built-in MIC

N/A

Audio Compression

G711/G.726, ADPCM

Audio Input/Output

3.5mm phone jack

Alarm In

4, terminal block

Alarm Out

2, terminal block

Video Buffer

N/A

Event Action

Send snapshot or video clip by FTP or email, record to local storage, trigger DO

Supported Protocols

IPv4/v6, TCP/IP, UDP, RTP, RTSP, HTTP, ICMP, FTP, SMTP, DHCP, PPPoE, UPnP, IGMP, SNMP, QoS, ONVIF

Ethernet

10/100 Base-T / RJ45

Local Storage

microSDHC x 1
(Class 4/Class 6 only)

RS-485

N/A

USB

N/A

SDK

Surveon SDK 2.0

OS

Microsoft Windows XP/Vista/7

Browser

Microsoft IE 6.0 or above

Software

Surveon VMS 2.4.8

Temperature

Operation: -40°C~ 50°C (-40°F~122°F)

Humidity

0 to 90%

Power

AC24V ; HPoE 30W

Power Consumption

Max. 20W (w/o Heater )
Max. 50W (w/ Heater )

Dimension (WxHxD)

ø192mm x 282mm (H)
ø7.55” x 11.1" (H)

Weight

Net: 2.32kg
Gross: 3.55kg

Certification

LVD, FCC, CE, IP66
