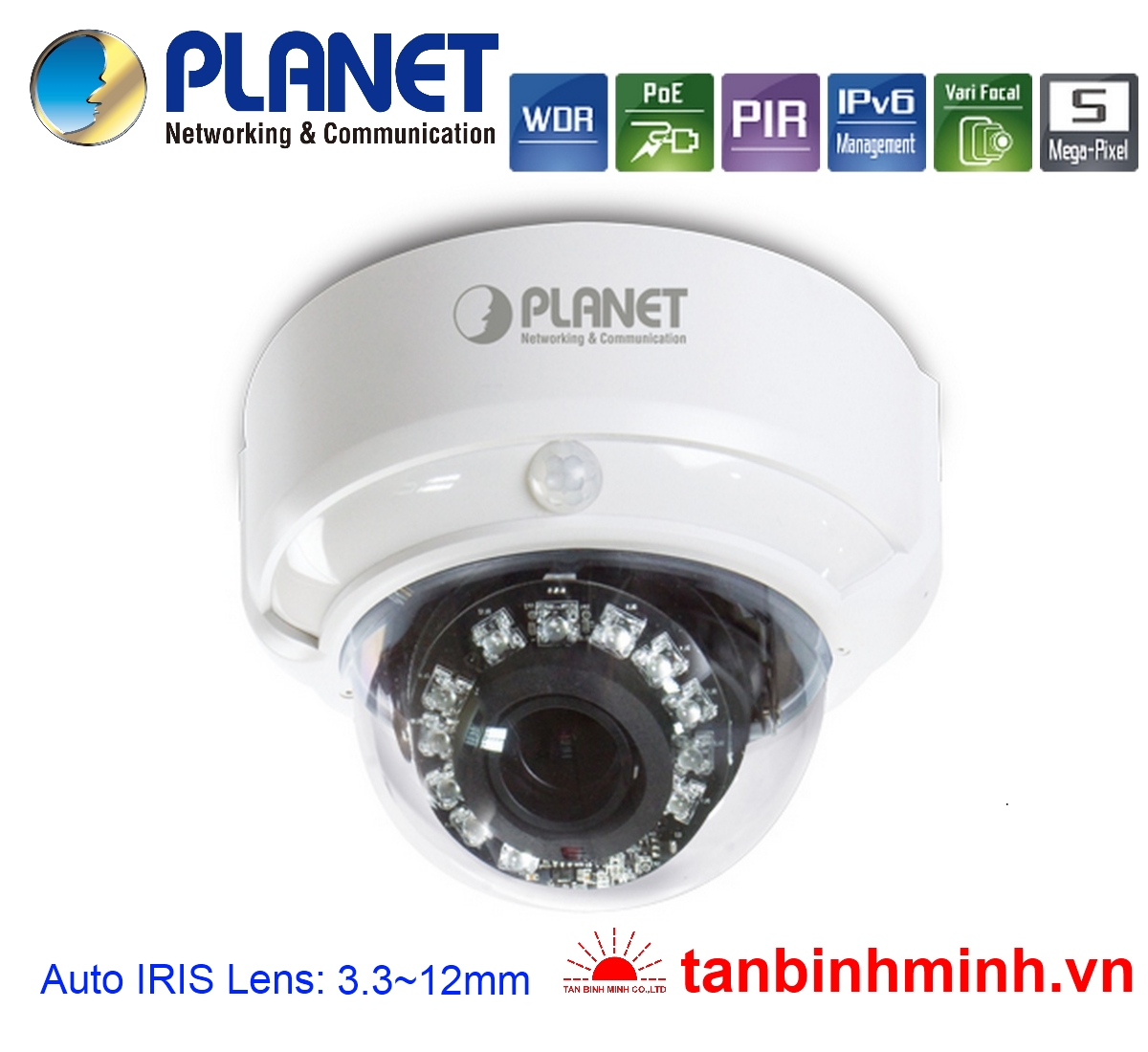

Camera IP Planet ICA-4500V

Model

ICA-4500V

Camera

Image device

1/3" type progressive scan CMOS sensor

Lens

Vari-Focal 3.3~12.0mm, DC Auto-Iris
Mechanical IR Cut Filter
Angle of view : horizontal: 27 ~ 82 Degree / vertical: 19 ~ 64 Degree

Min Illumination

0.5 Lux (Color) @ F1.4
0.1 Lux (B/W)

IR Illuminations

IR LED x 12, 850nm
Built-in IR illuminators, effective up to 20 meters

Effective Pixels

2592x1944 pixels (4:3)

PIR Sensor

1 x Built-in sensor with adjustable 120 degrees direction
Effective Distance: 6 meters
Effective Coverage: 120 degrees


Video Compression

H.264 / MPEG-4 / M-JPEG

Video Resolution

5 Mega Pixel mode
H.264: 2592 x 1944 / 1280 x 960 / 640 x 480 / 320 x 240

2 Mega Pixel (Full HD) mode
H.264: 1080P / 1280 x 720 / 640 x 360 / 320 x 180
MPEG4: 1280 x 720 / 640 x 360 / 320 x 180
M-JPEG: 1080P / 1280 x 720 / 640 x 360 / 320 x 180

Frame Rate

Up to 30fps for Full HD resolution
Up to 15fps for 5 Mega-Pixel resolution

Image Setting

AE, AWB
3D Noise reduction
WDR
Color, brightness, sharpness, contrast
Mirror/Flip
10 Privacy Masks
Text, time and date overlay
Overlay image on video

Streaming

Simultaneously multi-profile streaming
Streaming over UDP, TCP, HTTP, or HTTPS
M-JPEG streaming over HTTP (server push)
Supports 3GPP mobile surveillance (MPEG4)
Controllable frame rate and bandwidth
Constant and variable bit rate (MPEG4/H.264)
ROI

Audio

Audio Streaming

2-Way Audio

Audio Compression

RTSP: G.711 64kbps, G.726 32kbps
3GPP: AMR

Microphone

External microphone input

Audio Output

Adjustable audio output gain

Network and Configuration

Standard

IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3ab 1000Base-T

Protocol

IPv4, IPv6, TCP/IP, UDP, HTTP, HTTPS, SMTP, FTP, NTP, DNS, DDNS, DHCP, ARP, Bonjour, UPnP, RTSP, RTP, RTCP, IGMP, PPPoE, 3GPP, ICMP, Samba

Security

Password protection, IP address filtering, HTTPS encrypted data transmission, user access log

Users

20 clients on-line monitoring at the same time

System Integration

Application Programming Interface

Open API for software integration
ONVIF Compliant

Alarm Triggers

Intelligent Motion / Tampering / Audio detection and external input

Alarm Events

File upload via FTP, Samba to NAS, SD card or email
Notification via email, HTTP, and TCP
External output activation
Audio alerting output
Go to PTZ preset position

Video Buffer

Pre- and post-alarm buffering

General

Power Requirement

12V DC, 1A
IEEE 802.3af Class 3

Power Consumption

8W max.

Operating Temperature

-10 ~ 40 Degree C

Operating Humidity

20 ~ 80% (non-condensing)

Weight

635g

Dimension (Φ x L)

152 x 109 mm

Emission

CE, FCC

Connectors

10/100/1000 Mbps Gigabit Ethernet, RJ-45
DC power jack
Terminal block for 1 alarm input and 1 output
RS-485 interface for scanners, pan/tilts
External MIC input
Audio out
Composited video out (Max. resolution: D1 720 x 480 pixel))
Micro SD/SDHC card (Max 32GB, Class 6)
Factory default reset
