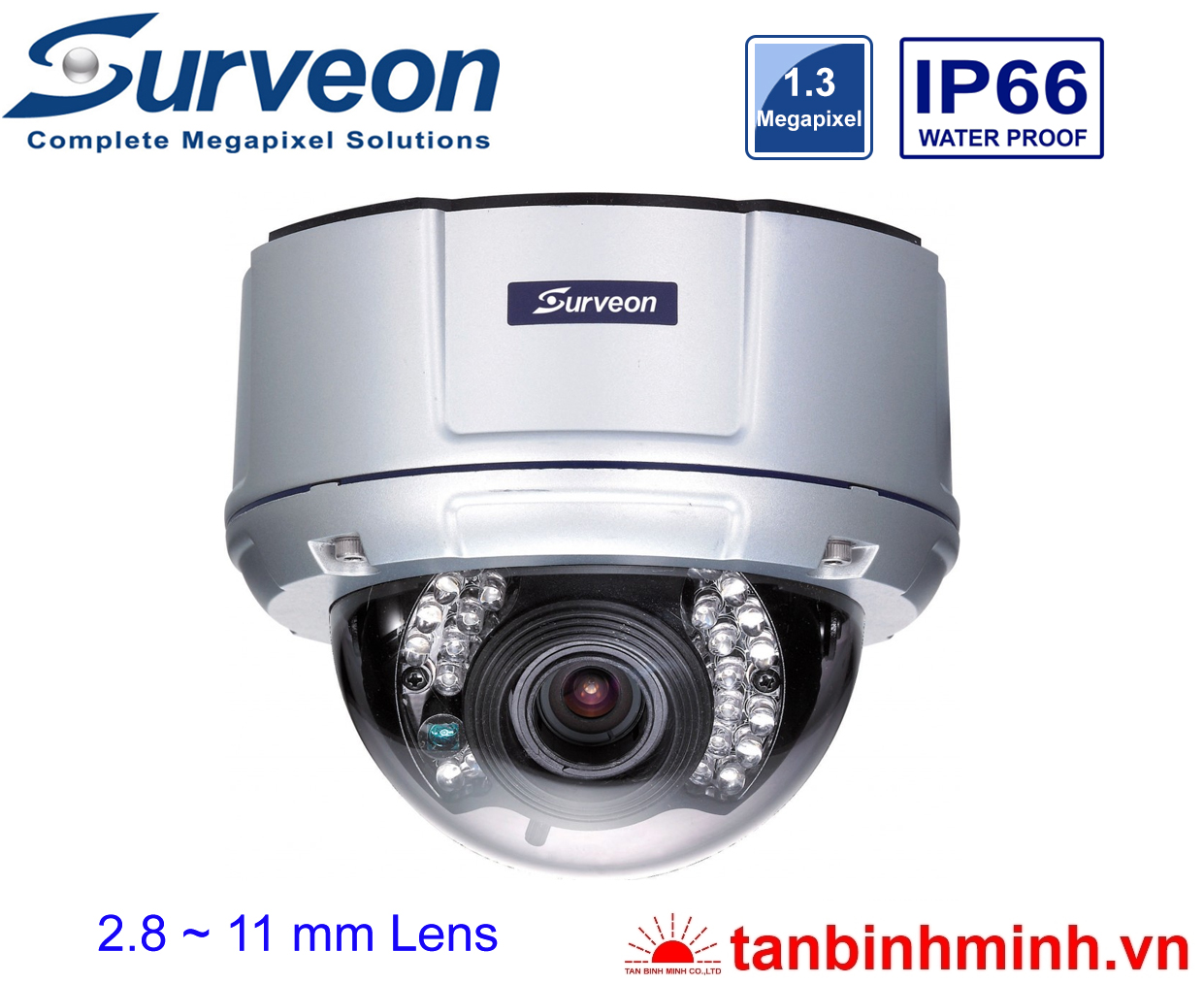

Camera IP Surveon CAM4260

Model

CAM4260

Image Sensor

1/3" 1.3 megapixel progressive scan CMOS

Lens

2.8 - 11 mm varifocal lens, F1.4

SNR

48dB

WDR

N/A

Day/Night ICR

Yes

IR LED

Yes (30M)

Min. Illumination

0 Lux (IR LEDs on)
3 Lux @ F1.0 (Color)

Iris Control

Manual IRIS

Shutter Time

1/5 ~ 1/15,000 s

Viewing Angle

Diagonal: 122° ~35°
Horizontal: 96° ~28°
Vertical: 72° ~21°

Camera Angle
Adjustment

Pan 0° ~340°
Tilt 30°~90°

Pan/Tilt/Zoom
Functionalities

N/A

Video Compression

H.264/MPEG-4/MJPEG

Resolution

Up to 1280 x 1024

Frame Rate

15 fps at SXGA (1280 x 1024)
15 fps at HD720 (1280 x 720)
30 fps at VGA (640 x 480)
30 fps at QVGA (320 x 240)

Video Stream

Dual stream at H.264, MPEG-4, and MJPEG simultaneously

Bit Rate

64K ~ 6Mbps, VBR, CBR, controller frame rate and quality

Video Control

AGC (Auto Gain Control), AWB (Auto White Balance), AES (Auto Electronic Shutter), BLC (Back Light Compensation), image adjustment

Intelligent Video

Motion detection, tampering detection (blocked, redirected, defocused, or spray-painted)

Video Jack

N/A

Built-in MIC

N/A

Audio Compression

32KHz, ADPCM

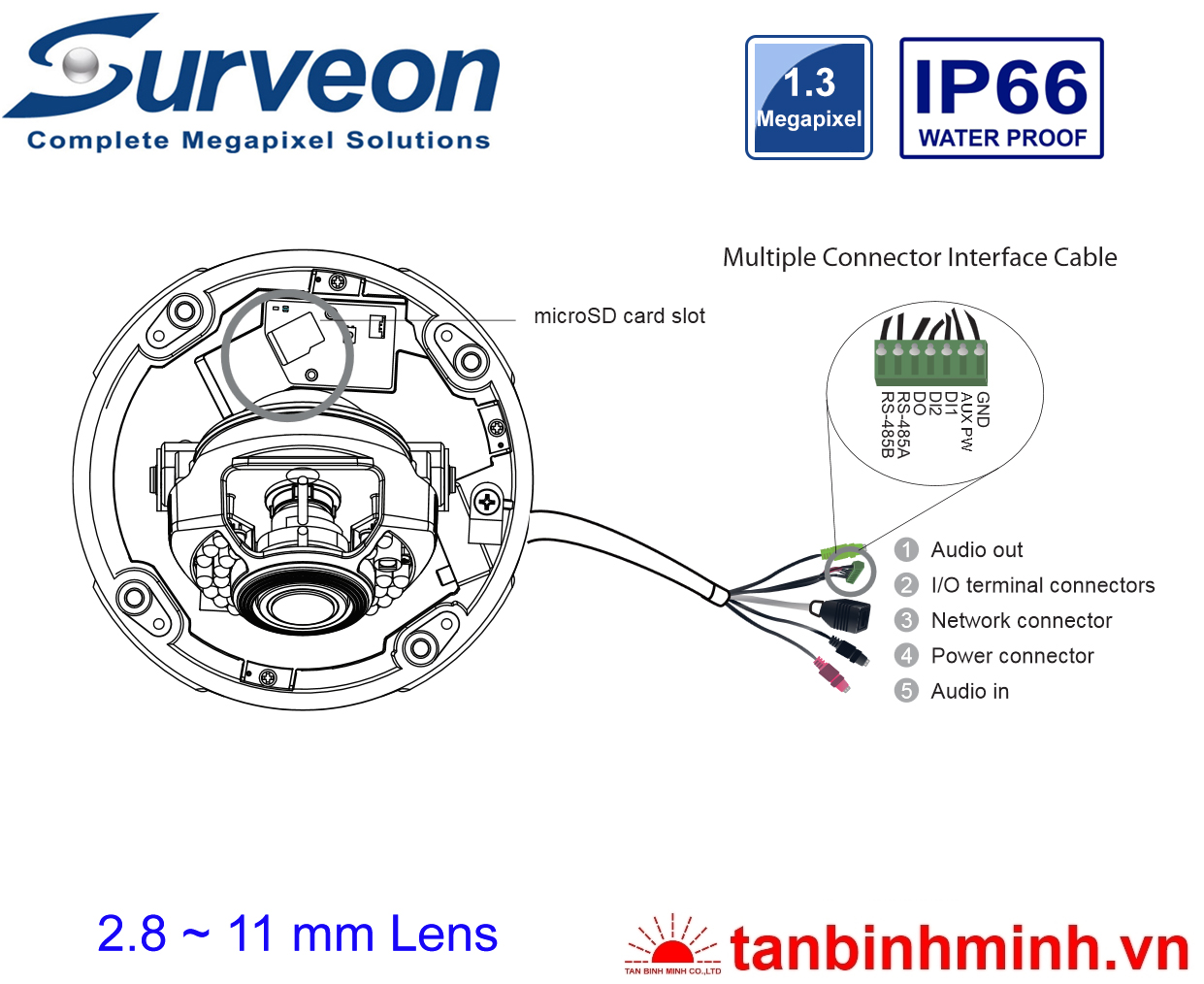

Audio Input

3.5mm phone jack

Audio Output

3.5mm phone jack

Alarm In

2, terminal block

Alarm Out

1, terminal block

Video Buffer

5 second pre-alarm, 30 second post-alarm

Event Action

Send snapshot or video clip by FTP or email, record to NAS, record to local storage, trigger DO

Supported Protocols

IPv4, ARP, TCP, UDP, ICMP, DHCP, NTP, DDNS, SMTP, FTP, HTTP, CIFS, PPPoE, UPnP, RTP, RTSP, RTCP, 3GPP

Ethernet

10/100 Base-T / RJ45

Local Storage

microSD/SDHC x 1 (Class 4/Class 6 only)

RS-485

1 (2 pin on terminal block)

USB

N/A

SDK

Surveon SDK 2.0

OS

Microsoft Windows XP/Vista/7

Browser

Microsoft IE 6.0 or above

Software

Surveon VMS 2.4.1

emperature

Operation:-10°C~ 50°C (14°~122°F)
Storage: -30°C ~ 60°C (-22°F~140°F)

Humidity

5 to 90%

Power

12VDC 1.5A；PoE (IEEE 802.3af) with Class 3

Power Consumption

Max. 7.5W (w/o Heater )
Max. 12W (w/ Heater )

Dimension (WxHxD)

ø144mm x 116mm(H)
ø5.67" x 4.57"(H)

Weight

Net: 1,260g (2.78lb.)
Gross: 1,930g (4.27lb.)

Certification

Safety: LVD
EMC: FCC, CE
IP66
