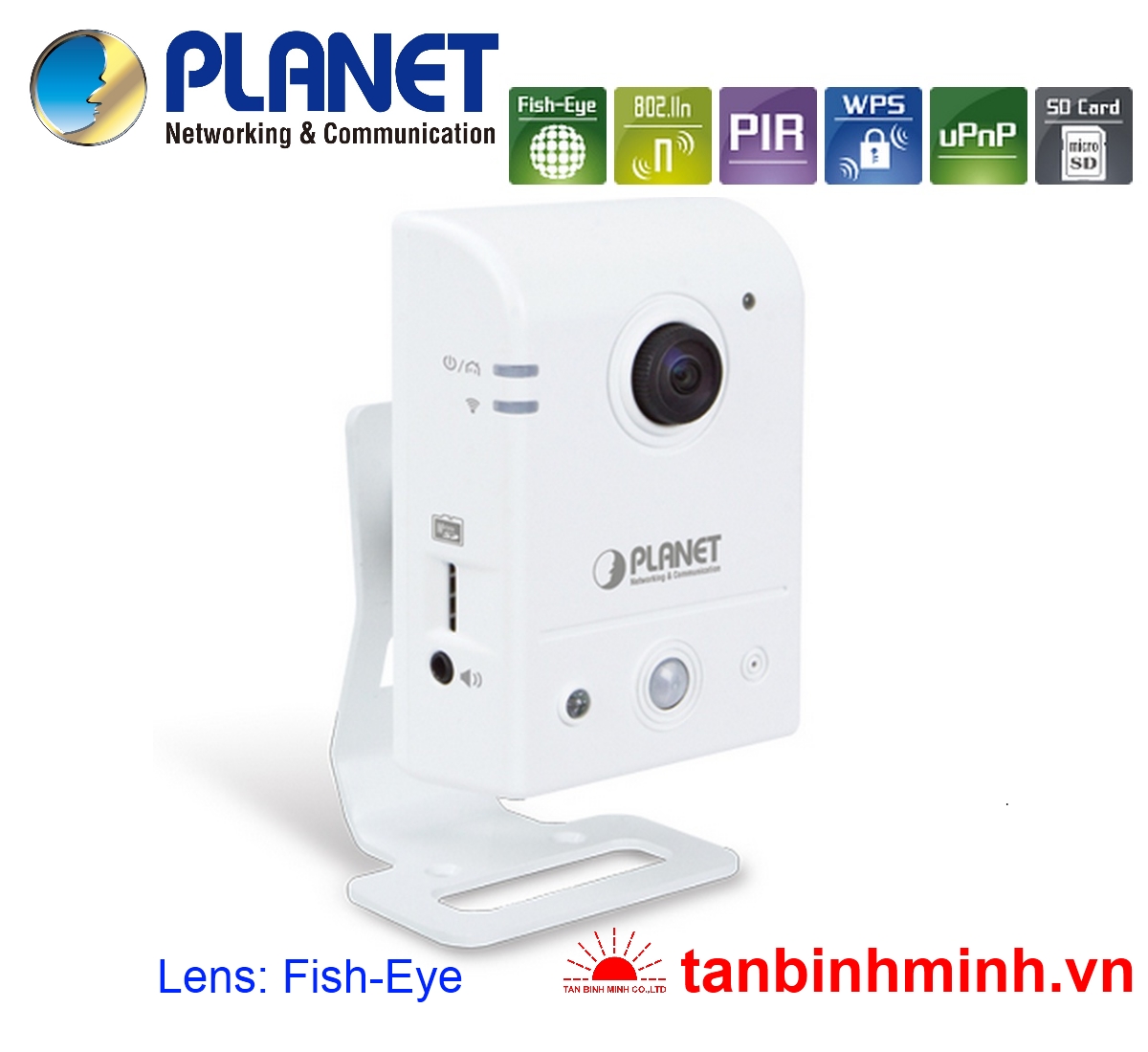

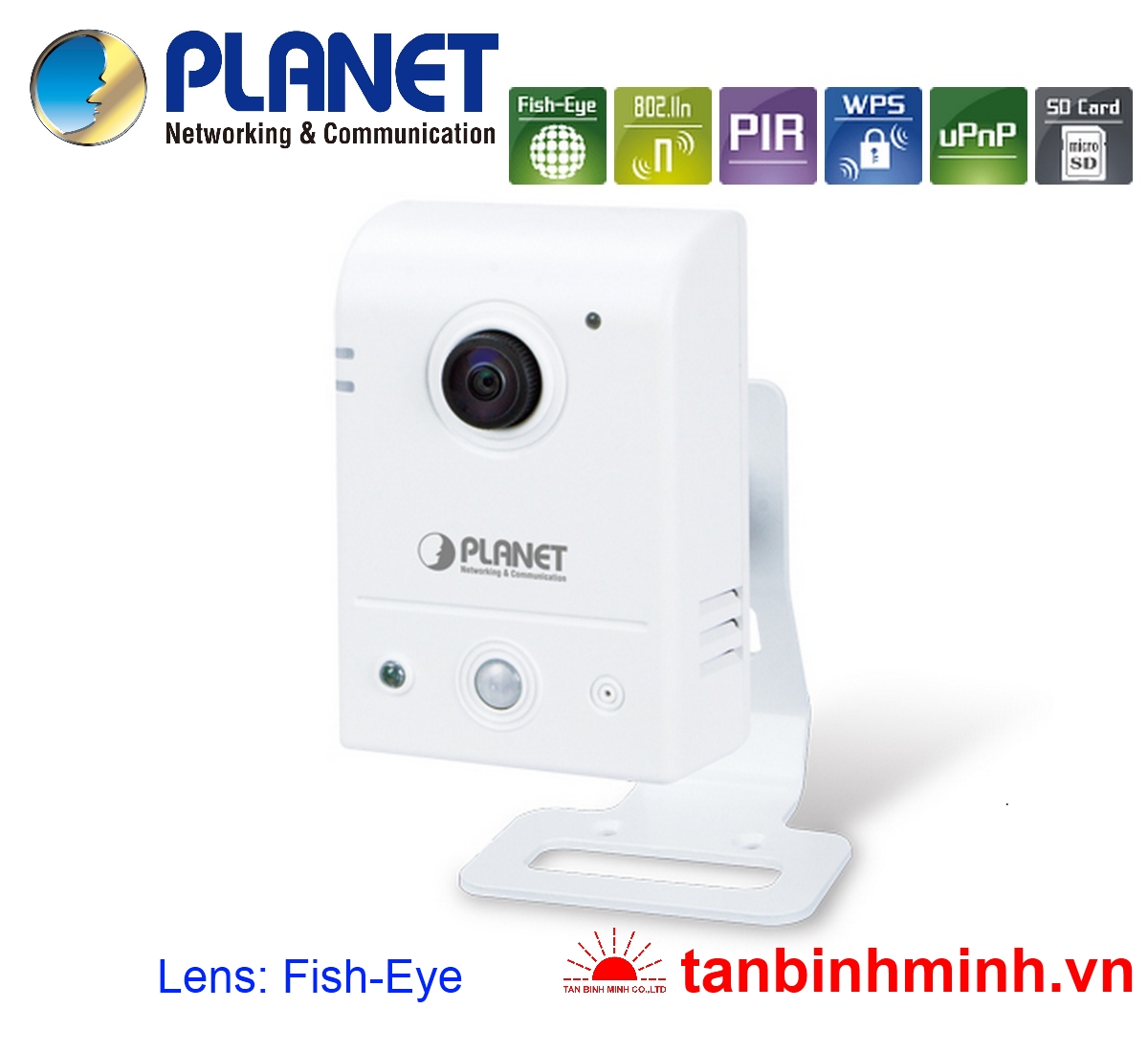

Camera IP Planet ICA-W8100

Model

ICA-W8100

Camera

Image Device

1/4" progressive 1.3 Mega-Pixel scan CMOS sensor

Lens

Fish-Eye Lens, 185.5/145/>=200° (H/V/D), F= 2.0, f=0.89 mm

Min. Illumination

0.5 lux @ F2

Effective Pixels

1280 x 720 pixels (16:9)

PIR Sensor

1 x Built-in sensor with adjustable 70 degrees direction
Effective Distance: 5 meters
Effective Coverage: 70 degrees

Video

Video Encoder

H.264 / MPEG-4 / M-JPEG

Video Resolution

H.264: 1280 x 720 / 640 x 360 / 320 x 180
MPEG4: 1280 x 720 / 640 x 360 / 320 x 180
M-JPEG: 1280 x 720 / 640 x 360 / 320 x 180

Frame Rate

Up to 30fps for all resolutions

Image Setting

AE, AWB, Brightness, Saturation, Contrast, Mirror/Rotate, Color/BW

Streaming

Simultaneously multi-profile streaming
Streaming over UDP, TCP, or HTTP
M-JPEG streaming over HTTP (server push)
Controllable frame rate and bandwidth
Constant and variable bit rate (M-JPEG / H.264)

Rate Control

CBR (Constant Bit Rate)
VBR (Variable Bit Rate)

UI Layout

180 degree Single Broad View (1P)
2 PTZ Mode (2R)
180 degree Broad View + 2 PTZ Mode (1P2R)

Audio

Audio Streaming

2-Way Audio

Audio Compression

RTSP: G.711 64kbps

Microphone

Built-in Microphone

Audio Output

Line Out for extra speaker

Network and Configuration

Network Standard

IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.11b/g/n

Network Protocol

IPv4, TCP/IP, UDP, HTTP, HTTPS, SMTP, FTP, NTP, DNS, DDNS, DHCP, ARP, Bonjour, UPnP, RTSP, RTP, RTCP, IGMP, PPPoE, 3GPP, ICMP, Samba

Antenna connector

1 x 3dBi (Max)

Frequency

2.4GHz

RF Transmission Power

OFDM: 13dBm
CCK: 17dBm

Output Power

802.11n: 13dBm(default) +/- 1dBm
802.11g: 13dBm(default) +/- 1dBm
802.11b: 17dBm(default) +/- 1dBm

Data Rate

802.11b: 1, 2, 5.5, 11Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps
802.11n: up to 150Mbps

Security

Password protection / WEP and WPA Encryption

Users

Depends on streaming data rate used

System Integration

Application Programming Interface

Open API for software integration
ONVIF

Alarm Triggers

Intelligent video motion detection and PIR sensor

Alarm Events

File upload via FTP, e-mail or Micro SD/SDHC card
Notification via e-mail, Mobile APP, and HTTP

Environment

Power Requirement

5V DC, 2A

Power Consumption

6W (5VDC)

Operating Temperature

0 ~ 45 Degrees C

Operating Humidity

20 ~ 80% (non-condensing)

Weight

134g

Dimensions (W x D x H)

70 x 39 x 99 mm

Emission

CE, FCC

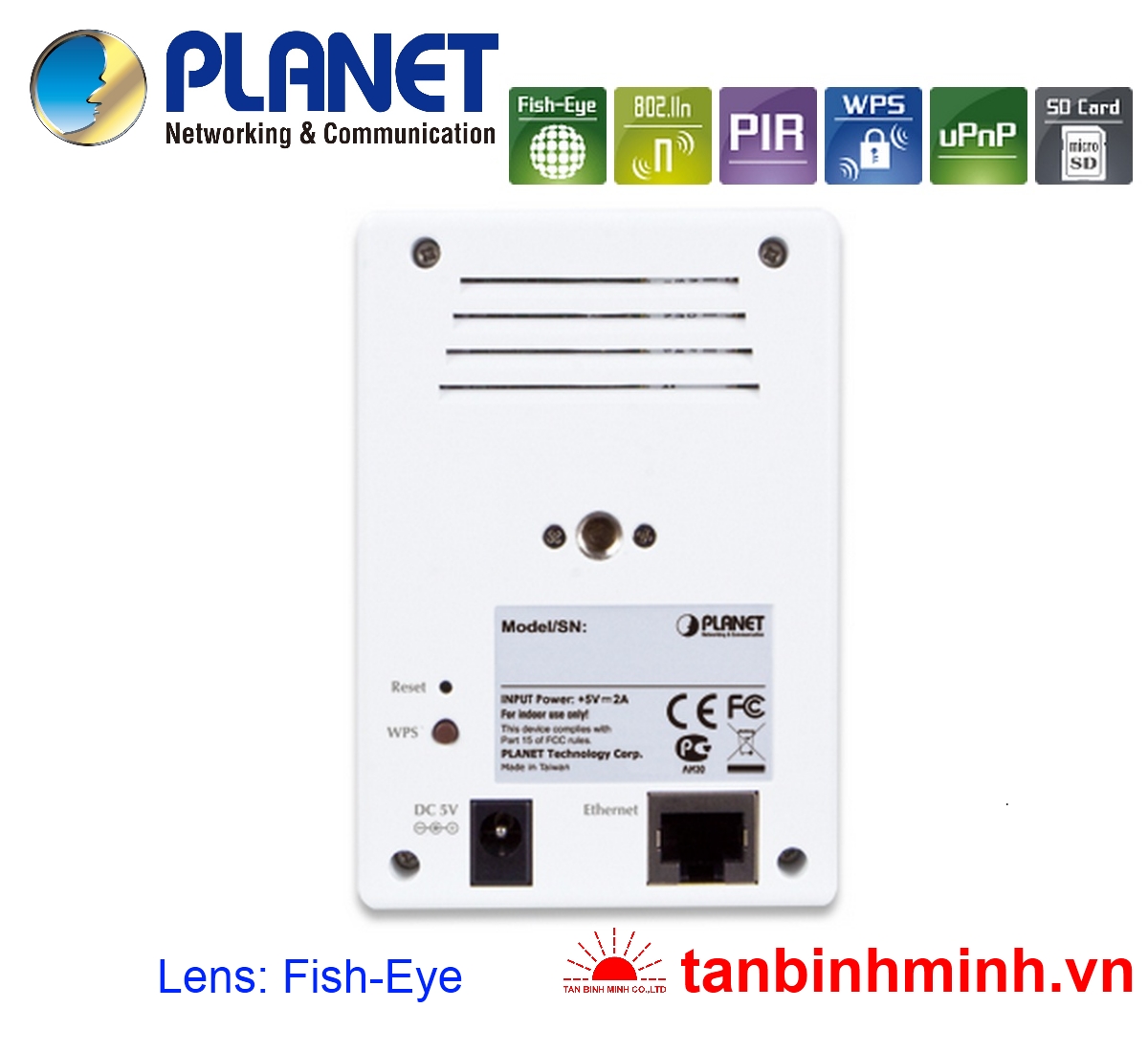

Connectors

10/100 Mbps Ethernet, RJ-45
DC power jack
Audio out
Micro SD/SDHC card (Max 32GB, Class 6)
WPS Button
Factory default reset button
