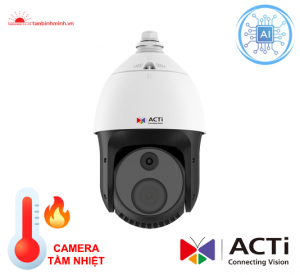

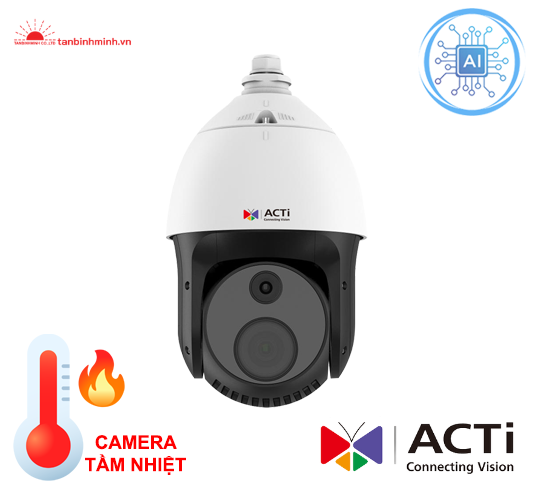

Camera AI TẦM NHIỆT IP ACTi A972

Camera AI tầm nhiệt IP Zoom

  • MS : A972
  • Bảo hành :
  • Kho hàng :
  • Hãng sản xuất : ACTi
  • Xuất xứ : TAIWAN
  • Seri sản phẩm :

Số lượng mua
Mua sản phẩm này
SP cùng loại
SP xem nhiều
Thông số kỹ thuật
Tổng quan
Video
Download
Phụ kiện



Device


Product Type Thermal Speed Dome
Maximum Resolution 4MP
Product Application Overheating Detection, Fire Detection
Application Environment Outdoor
Image Sensor Progressive Scan CMOS + Thermal sensor
Sensor Size Optical: 1/2.8"
Effective Pixels Thermal: 256(H) X 192(V)
Optical: 2688(H) X 1520(V)
Pixel Interval 12 μm
Spectral Range 8-14 μm
Thermal Sensitivity NETD <35mK at F1.0
Spatial Resolution 1.2 mrad
Day / Night Yes
Low Light Sensitivity Superior
Minimum Illumination Color: 0.05 lux at F1.2 (AGC on); B/W: 0 lux (IR LED on)
Mechanical IR Cut Filter Yes
IR LED Adaptive IR LED
IR Working Distance 100m
Electronic Shutter 1-1/100000 second (manual mode); 1-1/100000 second (auto mode)
S/N Ratio 75 dB

Lens


Focal Length Fixed focal, f10mm
(Visual camera)
Zoom, f4.8-153mm
Aperture (Thermal camera)
F1.0
(Visual camera)
F1.2-F4.4
Zoom Ratio 32x optical zoom
Horizontal Viewing Angle (Thermal camera)
18.1°
(Visual camera)
58.8° - 2.18°
Vertical Viewing Angle (Thermal camera)
13.6°
(Visual camera)
34.4° - 1.2°

PTZ


Manual Panning / Tilting Speed 0.1° - 200°/second, 0.1° - 105°/second
Preset Panning / Tilting Speed 240°/second, 200°/second
Panning Range 360° endless
Tilting Range -5°~90° (with E-flip)

Video


Compression H.265 Adaptive Stream (equivalent to Zip or Smart Stream or H.265+), H.264 Adaptive Stream (equivalent to Zip or Smart Stream or H.264+), MJPEG
Maximum Frame Rate vs. Resolution (Visual camera)
30 fps at 2688 x 1520
30 fps at 1920 x 1080
30 fps at 1280 x 960
30 fps at 1280 x 720
(Thermal camera)
25 fps at 1280 x 720
30 fps at 704 x 576
30 fps at 640 x 512
30 fps at 256 x 192
Multi-Streaming Simultaneous dual streams
Wide Dynamic Range Superior WDR (120 dB)
Image Enhancement Defogging
Digital Noise Reduction 3D DNR

Audio


Audio Type 2-way, Mic-in, Line-in, Line-out
Audio Compression G.711 u-law, G.711 A-law, G.722.1, G.726, MP2L2, PCM

Network


Ethernet Port 1 x Ethernet (10/100 Base-T), RJ-45 connector

Temperature Measurement


Temperature Range -20°C ~ 150°C (-4°F ~ 302°F)
Temperature Accuracy ±8°C (14.4°F)

Detection Range


Triggering Analytics Event Notification (People 1.8x0.5m) 80m
(Vehicle 1.4x4.0m) 240m
Triggering Temperature Notification (Object 0.5x0.5m) 83m
(Object 0.2x0.2m) 33m
Triggering Fire Detection Event Notification (Object 2x2m) 833m
(Object 1x1m) 417m
Observation Range Detection: People 417m; Vehicle 1278m
Recognition: People 104m; Vehicle 319m
Identification: People 52m; Vehicle 160m

Interface


Analog Video Output 1 x BNC connector
Digital Input/Output 7/2

General


Power Source AC 24V, DC 36V, DC 48V, High PoE
Power Consumption 30 W (PoE)
Weight 3900g (8.6lb)
Dimensions (Ø x H): 185mm x 305mm (7.28" x 6.42")
Environmental Casing Weatherproof (IP66)
Corrosion Protection Ordering Number will be created upon orders.. Chassis corrosion resistance at the seashore approximately 2-3 years.
Operating Temperature -40°C ~ 70°C (-40°F ~ 158°F)
Operating Humidity ≤70% RH, non-condensing
